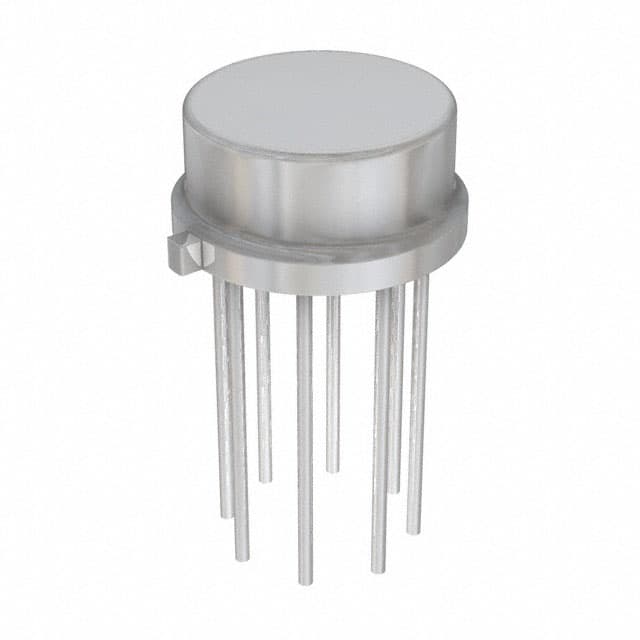

TI LM709H

Manufacturer No:

LM709H

Manufacturer:

Package:

Description:

70 dB Instrumentational OP Amps 1.5μA 8 Pins

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LM709H information

TI LM709H technical specifications, attributes, parameters and parts with similar specifications to TI LM709H.

Type
Parameter

Surface Mount
NO

Packaging
Bulk

Published
2011

JESD-609 Code
e0

Part Status
Discontinued

Number of Terminations
8

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn/Pb)

HTS Code
8542.33.00.01

Subcategory
Operational Amplifier

Technology
BIPOLAR

Terminal Position
BOTTOM

Terminal Form
WIRE

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
15V

Reach Compliance Code
unknown

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
8

JESD-30 Code
O-MBCY-W8

Qualification Status
Not Qualified

Operating Temperature (Max)
125°C

Operating Temperature (Min)
-55°C

Temperature Grade
MILITARY

Architecture
VOLTAGE-FEEDBACK

Amplifier Type
OPERATIONAL AMPLIFIER

Common Mode Rejection Ratio
70 dB

Neg Supply Voltage-Nom (Vsup)
-15V

Unity Gain BW-Nom
250 kHz

Average Bias Current-Max (IIB)
1.5μA

Low-Offset
NO

Frequency Compensation
NO

Supply Voltage Limit-Max
18V

Screening Level
MIL-STD-883

Neg Supply Voltage-Max (Vsup)
-18V

Input Offset Voltage-Max
6000μV

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for TI LM709H.

Datasheets:

nationalsemiconductor-lm709h-datasheets-5645.pdf

LM709H Overview

A OPERATIONAL AMPLIFIER-type buffer amplifier is shown here. There is a Bulk case that is delivered with the instrumentation amplifiers. A total of 8 terminations have been reported in the past few weeks. Buffer amplifier has a total of 8 pins on it. I would like you to keep in mind that this buffer amplifier needs to be run at a voltage of 15V. In more specific terms, this linear amplifier can be categoriOperational Amplifiered as a Operational Amplifier-type device.

LM709H Features

8 Pins
supply voltage of 15V

LM709H Applications

There are a lot of National Semiconductor
LM709H Instrumentational OP Amps applications.

single/dual op amp sum and difference circuits
Integrator circuits
Differentiator circuits
Logarithmic operation circuits
Exponential operation circuits
Multiplication circuits
Division circuits
Precision measurement
Power control
Information processing
