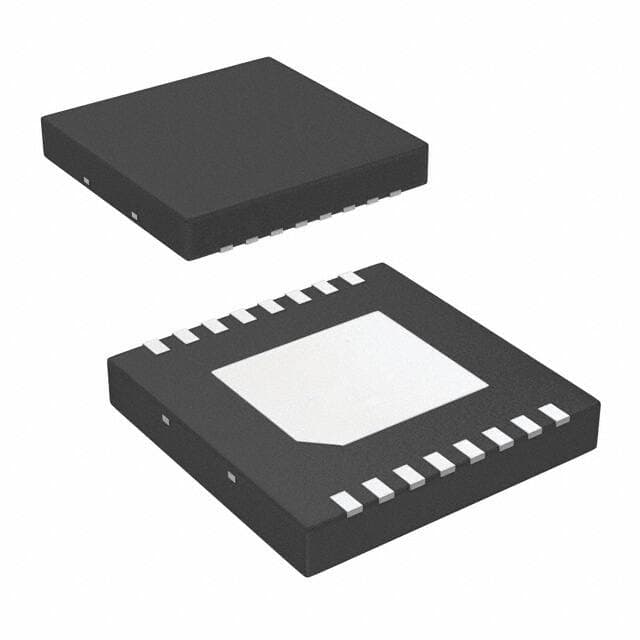

TI LM5041ASDX/NOPB

Manufacturer No:

LM5041ASDX/NOPB

Manufacturer:

Package:

16-WFDFN Exposed Pad

Description:

16 Terminals 15V~90V 16-Pin LM5041 DC to DC converter IC SWITCHING CONTROLLER 1 Outputs 200kHz 600kHz Transistor Driver

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LM5041ASDX/NOPB information

TI LM5041ASDX/NOPB technical specifications, attributes, parameters and parts with similar specifications to TI LM5041ASDX/NOPB.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
16-WFDFN Exposed Pad

Number of Pins
16

Operating Temperature
-40°C~125°C TJ

Packaging
Tape & Reel (TR)

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
16

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Subcategory
Switching Regulator or Controllers

Terminal Position
DUAL

Peak Reflow Temperature (Cel)
260

Terminal Pitch
0.5mm

Base Part Number
LM5041

Function
Step-Up/Step-Down

Number of Outputs
1

Output Type
Transistor Driver

Input Voltage-Nom
48V

Analog IC - Other Type
SWITCHING CONTROLLER

Output Configuration
Positive

Voltage - Supply (Vcc/Vdd)
15V~90V

Output Power
500W

Control Features
Dead Time Control, Frequency Control, Soft Start

Topology
Half-Bridge, Push-Pull

Control Mode
CURRENT-MODE

Frequency - Switching
200kHz 600kHz

Input Voltage (Max)
90V

Control Technique
PULSE WIDTH MODULATION

Rise Time
20ns

Synchronous Rectifier
Yes

Fall Time (Typ)
20 ns

Max Frequency
1MHz

Max Duty Cycle
50 %

Duty Cycle
50 %

Length
5mm

Height Seated (Max)
0.8mm

Width
5mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for TI LM5041ASDX/NOPB.

Datasheets:

texasinstruments-lm5041asdxnopb-datasheets-3510.pdf

texasinstruments-lm5041asdxnopb-datasheets-3511.pdf

LM5041ASDX/NOPB Overview

Capsuled in the 16-WFDFN Exposed Pad package, the switching controller suits most application needs. The dc motor controller is adquate to generate for 1 outputs. The pmic is packaged in Tape & Reel (TR) solid enclosure. It is capable of dealing with Transistor Driver dc switching's output (s). dc switching'sThe supply and operating voltage of the dc control are 15V~90V. Qualified to work in a -40°C~125°C TJ dc switcher. This switching controller can switch at 200kHz 600kHz. Surface Mount makes it suitable for general dc dc regulator. The dcdc regulator features Dead Time Control, Frequency Control, Soft Start for efficient switching control. The switch converters are connected to a SWITCHING CONTROLLER analog IC. Terminal (s) of the switching converters are designed at the DUAL position. 16 terminations with a variety of function. To name a few of the control techniques these dc dc converter ics adapt, it includes PULSE WIDTH MODULATION. 48V nominal DC switcher's voltage input. Other relevant dc to dc converter ics can be found by searching "LM5041". Switching converter has a total of 16 pins. Switching converter is a type of Switching Regulator or Controllers in particular. It should be fully noted that the dc to dc regulator only accepts 90V input voltage at most. The dc dc regulator's usual output current is 1.5A, which should be noted down when you start a project. To ensure the reliability under power-up and power-down, the maximum duty cycle of the voltage regulator dc to dc is set as 50 %. DC switcher's Surface Mount makes it qualified for most application and prototype designs. DC switcher'sThe max frequency of the pmic can reach 1MHz.

LM5041ASDX/NOPB Features

Transistor Driver Outputs
Switching Frequency: 200kHz 600kHz
Dead Time Control, Frequency Control, Soft Start
PULSE WIDTH MODULATION
Max Duty Cycle: 50 %

LM5041ASDX/NOPB Applications

There are a lot of Texas Instruments
LM5041ASDX/NOPB DC to DC converter applications.

CNC system
Servo drive system
Digital display device
Linear guide
Ball screw pair
Computer application technology
Network technology
Automation technology
CMM
Various precision measuring instruments
