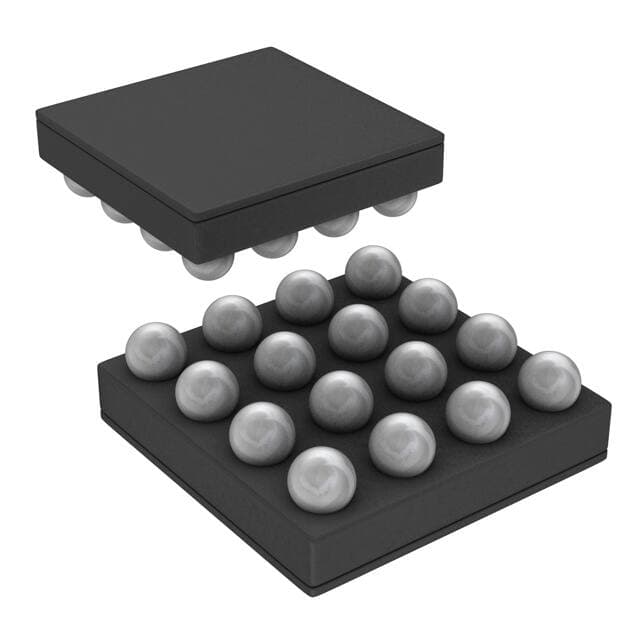

TI LM49120TL/NOPB

Manufacturer No:

LM49120TL/NOPB

Manufacturer:

Package:

16-WFBGA

Description:

8mA mA 1.3W W Audio Amplifiers 675?m mm 2.3mm mm 16 pins 16-WFBGA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LM49120TL/NOPB information

TI LM49120TL/NOPB technical specifications, attributes, parameters and parts with similar specifications to TI LM49120TL/NOPB.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 2 days ago)

Factory Lead Time
6 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
16-WFBGA

Number of Pins
16

Operating Temperature
-40°C~85°C TA

Packaging
Tape & Reel (TR)

Series
Boomer®

JESD-609 Code
e1

Feature
Depop, I2C, Mute, Shutdown, Thermal Protection, Volume Control

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
16

ECCN Code
EAR99

Type
Class AB

Terminal Finish
Tin/Silver/Copper (Sn/Ag/Cu)

Subcategory
Audio/Video Amplifiers

Voltage - Supply
2.7V~5.5V

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
260

Terminal Pitch
0.5mm

Pin Count
16

Output Type
1-Channel (Mono) with Stereo Headphones

Number of Channels
3

Nominal Supply Current
8mA

Output Power
1.3W

Common Mode Rejection Ratio
61 dB

Supply Type
Dual

Power Supply Rejection Ratio (PSRR)
84dB

Max Dual Supply Voltage
5.5V

Max Output Power
1.3W

Dual Supply Voltage
5V

Max Output Power x Channels @ Load
1.3W x 1 @ 8 ?; 85mW x 2 @ 32 ?

Height
675?m

Length
2.5mm

Width
2.3mm

Thickness
675?m

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for TI LM49120TL/NOPB.

LM49120TL/NOPB Overview

In the 16-WFBGA package, it is embedded.In this case, it is packaged as Tape & Reel (TR) .In addition, there are 16 terminations, which involve the termination of a transmission line with a device that matches the characteristic impedance of the line.In the configuration, 1-Channel (Mono) with Stereo Headphones is used as the output.This electrical device is classified as type Class AB .As part of a signal interface in a computer or other communication device, there are 16 pins, which are pronged contacts.In this case, the electronic part is mounted in the way of Surface Mount .There is 2.7V~5.5V voltage supply to this electrical device.3 channels are available on the device.Operating with Depop, I2C, Mute, Shutdown, Thermal Protection, Volume Control is possible.Temperatures should not exceed -40°C~85°C TA .There are 16 pins on this device.As part of Audio/Video Amplifiers , this part is included.Amp parts belongs to the LM49120 family.In this case, the electronic part is mounted in the way of Surface Mount .According to the manufacturer, the maximum output power of this electronic component is 1.3W kWh per hour.Amp parts is a Dual supply type.Amp parts is a member of the Boomer® series of electronic parts.

LM49120TL/NOPB Features

16-WFBGA package
16 pin count
LM49120 family
1.3W kWh per hour
Boomer® series

LM49120TL/NOPB Applications

There are a lot of Texas Instruments
LM49120TL/NOPB audio amplifiers applications.

single/dual op amp sum and difference circuits
Integrator and differentiator circuits
Logarithmic and exponential operation circuits
Multiplication and division circuits
Precision measurement
Power control
Information processing
Weak signal detection
Signal amplification
Signal filtering
