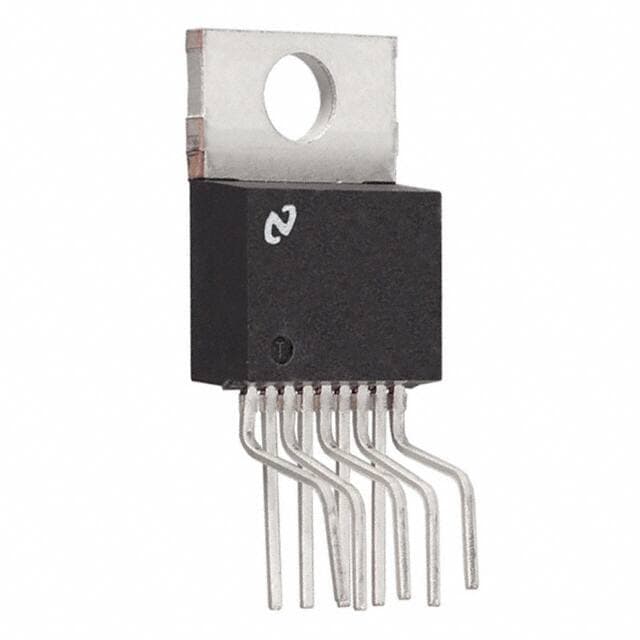

TI LM4701T/NOPB

Manufacturer No:

LM4701T/NOPB

Manufacturer:

Package:

TO-220-9 Formed Leads

Description:

30W W Audio Amplifiers 62.5W W TO-220-9 Formed Leads

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LM4701T/NOPB information

TI LM4701T/NOPB technical specifications, attributes, parameters and parts with similar specifications to TI LM4701T/NOPB.

Type
Parameter

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
TO-220-9 Formed Leads

Operating Temperature
-20°C~85°C TA

Packaging
Tube

Series
Overture?

JESD-609 Code
e3

Feature
Depop, Mute, Short-Circuit and Thermal Protection

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
9

Type
Class AB

Terminal Finish
Matte Tin (Sn)

Subcategory
Audio/Video Amplifiers

Technology
BIPOLAR

Voltage - Supply
20V~64V ±10V~32V

Terminal Position
ZIG-ZAG

Number of Functions
1

Terminal Pitch
0.95mm

Base Part Number
LM4701

JESD-30 Code
R-PZIP-T9

Qualification Status
Not Qualified

Output Type
1-Channel (Mono)

Power Dissipation
62.5W

Supply Current-Max
40mA

Slew Rate
18 V/?s

Input Offset Voltage (Vos)
15mV

Gain Bandwidth Product
7.5MHz

Power Supply Rejection Ratio (PSRR)
115dB

Max Dual Supply Voltage
32V

Max Output Power
30W

Min Dual Supply Voltage
10V

Input Bias Current
500nA

Max Output Power x Channels @ Load
30W x 1 @ 8 ?

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for TI LM4701T/NOPB.

Datasheets:

texasinstruments-lm4701tnopb-datasheets-1590.pdf

LM4701T/NOPB Overview

Amp parts is embedded in the TO-220-9 Formed Leads package.Amp parts is packaged in the way of Tube .There are 9 terminations, which are the practice of ending a transmission line with a device that matches the characteristic impedance of the line.The output it is configured with uses 1-Channel (Mono) .The type of this electrical device is Class AB .This electronic part is mounted in the way of Through Hole .The supply voltage of this electrical device is 20V~64V ±10V~32V .Depop, Mute, Short-Circuit and Thermal Protection can be ensured when operating.The operating temperature should not exceed -20°C~85°C TA .This part is included in Audio/Video Amplifiers .Amp parts belongs to LM4701 family.This electronic part is mounted in the way of Through Hole .The maximal Output Power of this electronic part is 30W kWh per hour.This electronic part is a member of Overture? series.Amp parts consumes 25mA of quiescent current wAmp partshout being affected by external factors. The maximal supply current amounts to 40mA .

LM4701T/NOPB Features

TO-220-9 Formed Leads package
LM4701 family
30W kWh per hour
Overture? series

LM4701T/NOPB Applications

There are a lot of Texas Instruments
LM4701T/NOPB audio amplifiers applications.

Proportional operation circuits
Inverse/same-phase proportional circuit
Addition and subtraction operation circuits
single/dual op amp sum and difference circuits
Integrator and differentiator circuits
Logarithmic and exponential operation circuits
Multiplication and division circuits
Precision measurement
Power control
Information processing
