TI LM2795BL/NOPB

Manufacturer No:

LM2795BL/NOPB

Manufacturer:

Package:

14-WFBGA, DSBGA

Description:

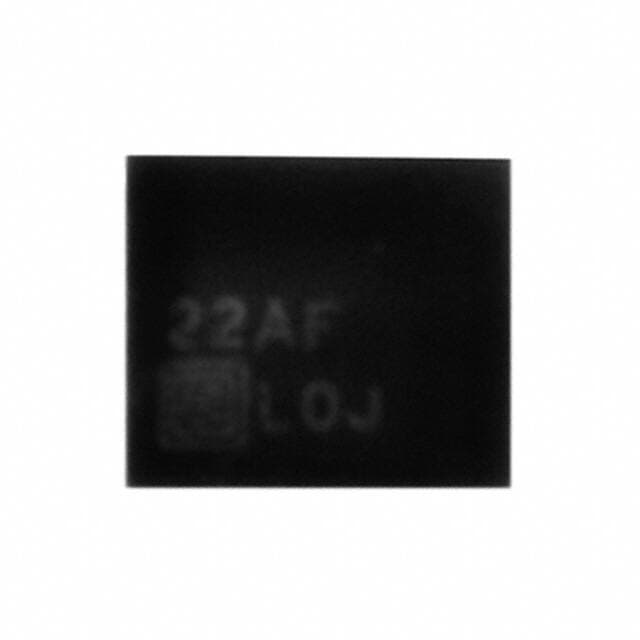

PMIC LM2795 14 Pin 515kHz 14-WFBGA, DSBGA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LM2795BL/NOPB information

TI LM2795BL/NOPB technical specifications, attributes, parameters and parts with similar specifications to TI LM2795BL/NOPB.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
14-WFBGA, DSBGA

Number of Pins
14

Operating Temperature
-30°C~85°C TA

Packaging
Tape & Reel (TR)

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Type
DC DC Regulator

Applications
Backlight

Frequency
515kHz

Base Part Number
LM2795

Number of Outputs
4

Operating Supply Voltage
5.5V

Voltage - Output
3.8V

Topology
Switched Capacitor (Charge Pump)

Current - Output / Channel
20mA

Internal Switch(s)
Yes

Dimming
Analog, PWM

Voltage - Supply (Min)
2.7V

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for TI LM2795BL/NOPB.

LM2795BL/NOPB Overview

To save space on the board, it has a 14-WFBGA, DSBGA package. LED drivers are designed with 4 outputs.In this case, mounting method is Surface Mount.In this case, the result is a DC DC Regulator with high efficiency.-30°C~85°C TA is the operating temperature of the led driver.Backlight benefits significantly from the program.A frequency of 515kHz is used as the basis for operation.There are 14 pins on the base of this LED driver.A voltage supply less than 2.7V could result in undetermined failures.It has been mounted on Surface Mount.Under the base part number LM2795, you'll find this LED driver.It has a voltage output of 3.8V.In order to power systems, 5.5V voltage is needed.

LM2795BL/NOPB Features

Available in the 14-WFBGA, DSBGA package
Operating temperature of -30°C~85°C TA
Frequency of 515kHz
Operating with the supply voltage of 5.5V

LM2795BL/NOPB Applications

There are a lot of Texas Instruments
LM2795BL/NOPB LED Driver ICs applications.

Down lighting
Architectural lighting
Street lighting
Stage and Studio lighting
Refrigeration lighting
Portable lighting
Gallery lighting
Museum lighting
High-end retail lighting
Medical surgery lighting
