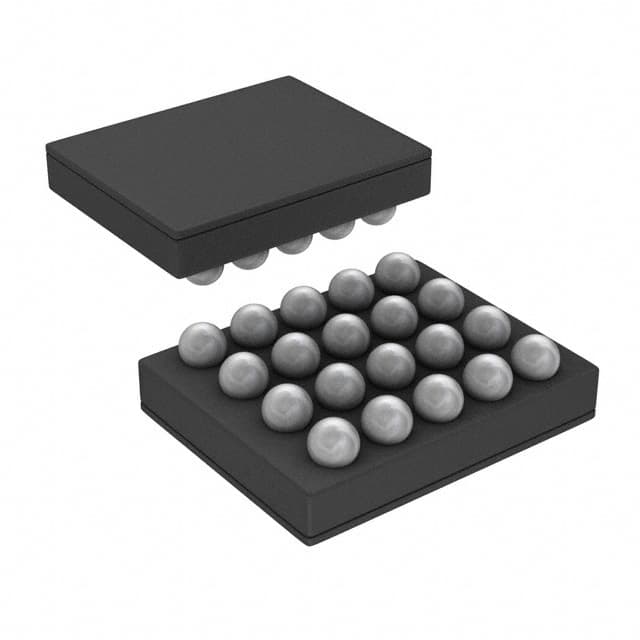

TI LM2756TMX
TI LM2756TMX

TI LM2756TMX

Manufacturer No:

LM2756TMX

Manufacturer:

TI

Package:

Description:

3/5V 0.4mm PMIC 20 Pin 3.6V

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LM2756TMX information

TI LM2756TMX technical specifications, attributes, parameters and parts with similar specifications to TI LM2756TMX.

  • Type
  • Parameter
  • Surface Mount
  • YES
  • Number of Pins
  • 20
  • Published
  • 2013
  • JESD-609 Code
  • e1
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 20
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Tin/Silver/Copper (Sn/Ag/Cu)
  • HTS Code
  • 8542.39.00.01
  • Subcategory
  • Display Drivers
  • Terminal Position
  • BOTTOM
  • Terminal Form
  • BALL
  • Peak Reflow Temperature (Cel)
  • 260
  • Number of Functions
  • 1
  • Supply Voltage
  • 3.6V
  • Terminal Pitch
  • 0.4mm
  • Time@Peak Reflow Temperature-Max (s)
  • 40
  • Qualification Status
  • Not Qualified
  • Operating Temperature (Max)
  • 85°C
  • Operating Temperature (Min)
  • -30°C
  • Supply Voltage-Max (Vsup)
  • 5.5V
  • Power Supplies
  • 3/5V
  • Temperature Grade
  • OTHER
  • Frequency - Switching
  • 1.3MHz
  • Interface IC Type
  • LED DISPLAY DRIVER
  • Number of Segments
  • 8
  • Multiplexed Display Capability
  • NO
  • Data Input Mode
  • SERIAL
  • Length
  • 2.015mm
  • Height Seated (Max)
  • 0.6mm
  • Width
  • 1.615mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for TI LM2756TMX.

Datasheets:

LM2756TMX Overview


20 terminations are designed for its operation.There are 20 pins used to form the base of its configuration.There are 8 segments.It is also classified into Display Drivers according to its characteristics.LED DISPLAY DRIVER is the interface IC that the part is equipped with.The minimal temperature of -30°C is allowable for this device.It is suitable for this device to operate with the maximal temperature of 85°C.
