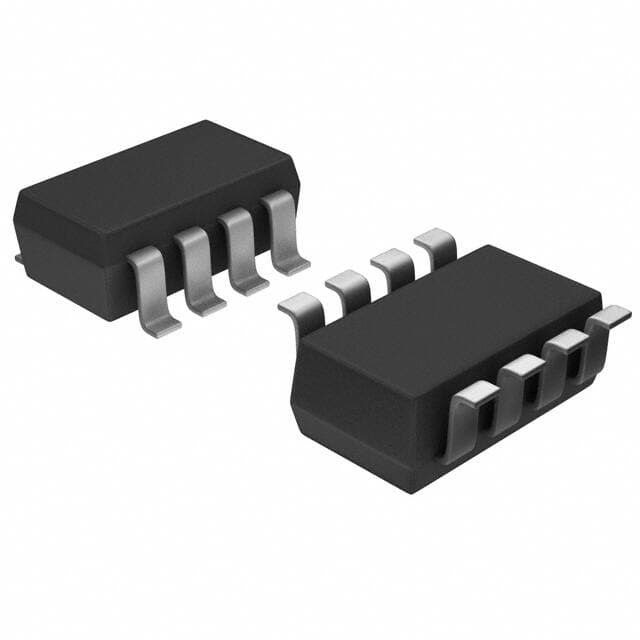

TI LM2707MF/NOPB

Manufacturer No:

LM2707MF/NOPB

Manufacturer:

Package:

SOT-23-8

Description:

3V 0.635mm PMIC LM2707 8 Pin 50kHz 3V SOT-23-8

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LM2707MF/NOPB information

TI LM2707MF/NOPB technical specifications, attributes, parameters and parts with similar specifications to TI LM2707MF/NOPB.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
SOT-23-8

Number of Pins
8

Operating Temperature
-30°C~85°C TA

Packaging
Tape & Reel (TR)

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
8

Type
DC DC Regulator

Applications
Backlight

Subcategory
Display Drivers

Terminal Position
DUAL

Terminal Form
GULL WING

Supply Voltage
3V

Terminal Pitch
0.635mm

Frequency
50kHz

Base Part Number
LM2707

Number of Outputs
1

Qualification Status
Not Qualified

Power Supplies
3V

Max Supply Voltage
7V

Min Supply Voltage
2.3V

Power Dissipation
800mW

Topology
Step-Up (Boost)

Current - Output / Channel
30mA

Internal Switch(s)
Yes

Dimming
PWM

Number of Segments
4

Voltage - Supply (Min)
2.3V

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for TI LM2707MF/NOPB.

LM2707MF/NOPB Overview

The SOT-23-8 package is used for saving board space. LED drivers with this design have 1 outputs.For mounting, it uses the Surface Mount method.It emerges as a DC DC Regulator, which is efficient and reliable.The led light driver is capable of operating at the operating temperature of -30°C~85°C TA.There are considerable benefits for Backlight.50kHz is the frequency in which it operates.There are 8 terminations that are designed to operate with it.The configuration of the board is built around 8 pins.Undetermined failures may occur when the voltage supply is less than 2.3V.Segments counted are 4.It's mounted on the way to Surface Mount.It is under the base part number LM2707 that you can find this LED driver.7V is a maximum acceptable voltage for the supply.A voltage of 18V is produced by it.In addition, its characteristics are classified into Display Drivers.A minimum supply voltage of 2.3V is required to meet the highest efficiency standards.

LM2707MF/NOPB Features

Available in the SOT-23-8 package
Operating temperature of -30°C~85°C TA
Frequency of 50kHz
Supply voltage of 3V

LM2707MF/NOPB Applications

There are a lot of Texas Instruments
LM2707MF/NOPB LED Driver ICs applications.

Street lighting
Stage and Studio lighting
Refrigeration lighting
Portable lighting
Gallery lighting
Museum lighting
High-end retail lighting
Medical surgery lighting
Replacement lamps
Panel lighting
