TI LM2585T-3.3

Manufacturer No:

LM2585T-3.3

Manufacturer:

Package:

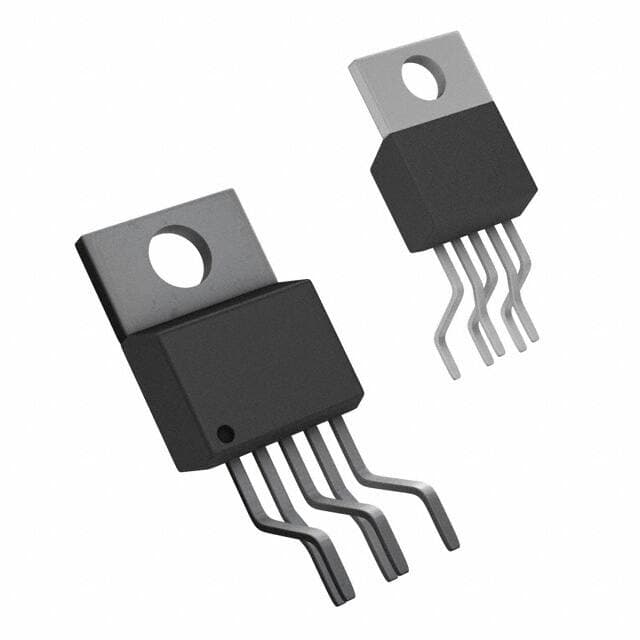

TO-220-5 Formed Leads

Description:

5 Terminals 4V 5-Pin LM2585 DC DC Voltage Regulator SWITCHING REGULATOR 1 Outputs 100kHz Tube 3A Switch TO-220-5 Formed Leads

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LM2585T-3.3 information

TI LM2585T-3.3 technical specifications, attributes, parameters and parts with similar specifications to TI LM2585T-3.3.

Type
Parameter

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
TO-220-5 Formed Leads

Number of Pins
5

Operating Temperature
-40°C~125°C TJ

Packaging
Tube

Series
SIMPLE SWITCHER®

JESD-609 Code
e0

Pbfree Code
no

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
5

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn/Pb)

Subcategory
Switching Regulator or Controllers

Technology
BIPOLAR

Terminal Position
ZIG-ZAG

Base Part Number
LM2585

Function
Step-Up, Step-Up/Step-Down

Number of Outputs
1

Output Voltage
3.3V

Output Type
Fixed

Max Output Current
3A

Operating Supply Voltage
40V

Input Voltage-Nom
5V

Analog IC - Other Type
SWITCHING REGULATOR

Output Configuration
Positive

Current - Output
3A Switch

Quiescent Current
11mA

Voltage - Output (Min/Fixed)
3.3V

Topology
Boost, Flyback, Forward Converter

Control Mode
CURRENT-MODE

Frequency - Switching
100kHz

Control Technique
PULSE WIDTH MODULATION

Synchronous Rectifier
No

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for TI LM2585T-3.3.

Datasheets:

texasinstruments-lm2585sx33nopb-datasheets-2971.pdf

LM2585T-3.3 Overview

A Tube package is used in this voltage regulator to optimize performance. In this voltage regulator, 5 terminations are present. A SWITCHING REGULATOR analog IC is used in this voltage regulator 12v, which is the type of analog IC that this voltage regulator 12v is equipped with. In order to save space, this voltage regulator is packaged in the TO-220-5 Formed Leads package. 1 outputs of voltage regulator are configured. Fixed outputs are generated on the output pins of this adjusting voltage regulator. A voltage regulator 12v such as this one fits the Through Hole mounting bracket. Keeping dc to dc voltage regulator's operating temperature at -40°C~125°C TJ is essential when operating. A DC-DC switching regulator such as this one switches at 100kHz. Voltage regulators like this one can operate at least with 4V as the dc to dc voltage regulator's minimum input voltage. It is evident from the table below that adjusting voltage regulator's output voltage (Min/Fixed) is equal to 3.3V. This voltage regulator 12v features maximum design flexibility thanks to its 3A Switch output current. An input voltage of 5V is required to meet the requirements of the switching regulator operation. A voltage regulator 12v such as this falls under the Switching Regulator or Controllers category and belongs to this category. As a member of the LM2585 family of DC/DC regulators, this is a DC/DC regulator. The voltage DC DC switching regulator can provide is up to 3.3V volts. During switching regulator operation, 5 pins are used. A maximum output current of 3A A is provided to meet the switching regulator operation requirements. Known as a switching DC-DC regulator, this electronic voltage regulator 12v is part of the SIMPLE SWITCHER® family. DC-DC switching regulator with supply voltage 40V. There are no external factors that affect DC DC switching regulator's consumption of 11mA A of quiescent current.

LM2585T-3.3 Features

1 outputs
5 pins
Operating supply voltage of 40V

LM2585T-3.3 Applications

There are a lot of Texas Instruments
LM2585T-3.3 Voltage Regulators applications.

Various precision measuring instruments
Various precision measuring detectors
Flaw detection equipment
Balance equipment
Industrial robots
Industrial controllers
Die casting equipment
Injection molding machinery
Various CNC machine tools
Machining centers
