TI LM10CH

Manufacturer No:

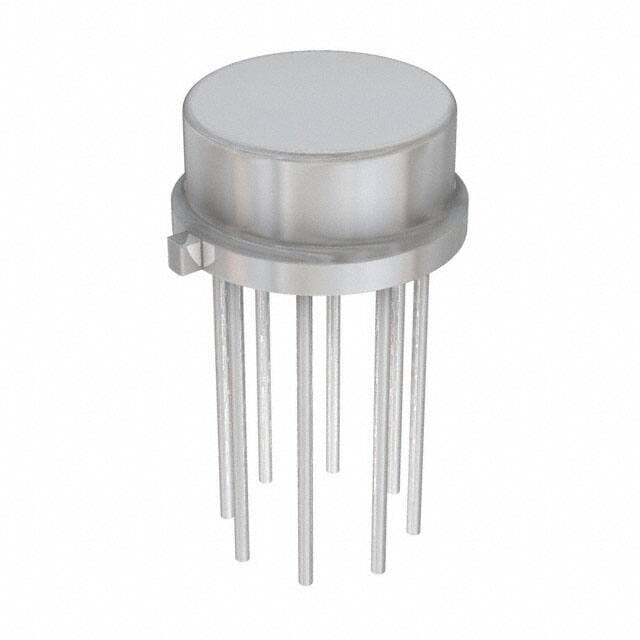

LM10CH

Manufacturer:

Package:

TO-99-8 Metal Can

Description:

20mA per Channel 12nA 90 dB Instrumentational OP Amps 0.04?A 20V 1.1V~40V ±0.55V~20V LM10 8 Pins TO-99-8 Metal Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LM10CH information

TI LM10CH technical specifications, attributes, parameters and parts with similar specifications to TI LM10CH.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 4 days ago)

Factory Lead Time
6 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
TO-99-8 Metal Can

Number of Pins
8

Operating Temperature
0°C~70°C

Packaging
Bulk

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
8

ECCN Code
EAR99

Subcategory
Operational Amplifier

Technology
BIPOLAR

Terminal Position
BOTTOM

Terminal Form
WIRE

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
20V

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
LM10

Pin Count
8

Qualification Status
Not Qualified

Number of Elements
2

Number of Circuits
1

Operating Supply Current
300?A

Nominal Supply Current
500?A

Output Current
20mA

Slew Rate
0.2 V/?s

Architecture
VOLTAGE-FEEDBACK

Amplifier Type
General Purpose

Common Mode Rejection Ratio
90 dB

Current - Input Bias
12nA

Voltage - Supply, Single/Dual (±)
1.1V~40V ±0.55V~20V

Output Current per Channel
20mA

Input Offset Voltage (Vos)
4mV

Gain Bandwidth Product
90 kHz

Neg Supply Voltage-Nom (Vsup)
-20V

Voltage Gain
112.04dB

Average Bias Current-Max (IIB)
0.04?A

Low-Offset
NO

Frequency Compensation
YES

Voltage - Input Offset
500?V

Low-Bias
NO

Micropower
YES

Bias Current-Max (IIB) @25C
0.03?A

Download datasheets and manufacturer documentation for TI LM10CH.

Datasheets:

texasinstruments-lm10ch-datasheets-5888.pdf

texasinstruments-lm10ch-datasheets-5889.pdf

texasinstruments-lm10ch-datasheets-5890.pdf

texasinstruments-lm10ch-datasheets-5891.pdf

LM10CH Overview

A TO-99-8 Metal Can case is used to package the op amp. General Purpose-type instrumentation amplifiers are used in this application. The case in which buffer amplifier is delivered is called a Bulk case. It is estimated that there will be 8 terminations in the next few months. There are a total of 8 pins on this op amp. It is important to remember that this op amp should be operated at a voltage of 20V volts. It should be noted that this op amp is a type of Operational Amplifier device. There are 8 pins on this chip. In terms of the input offset voltage, instrumentation amplifier rates at 4mV. It is recommended that this electronic component be mounted using the Through Hole mounting type. In terms of operating temperature, this instrumentation amplifier performs well at a temperature of about 0°C~70°C . An 300?A volt supply current is needed for this linear amplifier to operate. Voltage gain should remain at 112.04dB. On this instrumentation amplifier, there are 1 circuits that are connected together. The buffer op amp is rated for an operating voltage of 2 when it comes to the power supply. The operating supply voltage of the buffer op amp is rated at 20V.

LM10CH Features

8 Pins
supply voltage of 20V
112.04dB voltage gain

LM10CH Applications

There are a lot of Texas Instruments
LM10CH Instrumentational OP Amps applications.

Addition operation circuits
Subtraction operation circuits
single/dual op amp sum and difference circuits
Integrator circuits
Differentiator circuits
Logarithmic operation circuits
Exponential operation circuits
Multiplication circuits
Division circuits
Precision measurement
