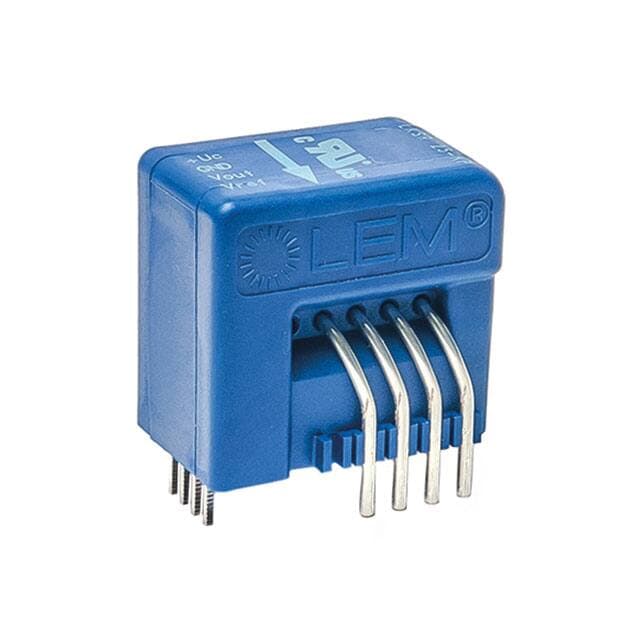

LEM LKSR 50-NP

Manufacturer No:

LKSR 50-NP

Manufacturer:

LEM

Package:

Module

Description:

LKSR Series Hall Effect, Closed Loop Sensor 1-Channel Bidirectional -40°C~105°C TA 4.75V~5.25V 300kHz 50A Accuracy-±1.25% Linearity-±0.1%

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LKSR 50-NP information

LEM LKSR 50-NP technical specifications, attributes, parameters and parts with similar specifications to LEM LKSR 50-NP.

Type
Parameter

Factory Lead Time
8 Weeks

Mounting Type
Through Hole

Package / Case
Module

Surface Mount
NO

Operating Temperature
-40°C~105°C TA

Packaging
Tray

Series
LKSR

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
10

Voltage - Supply
4.75V~5.25V

Terminal Position
UNSPECIFIED

Terminal Form
UNSPECIFIED

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
5V

Frequency
300kHz

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Output
Ratiometric, Voltage

Current - Supply (Max)
51.3mA

Supply Voltage-Max (Vsup)
5.25V

Supply Voltage-Min (Vsup)
4.75V

Number of Channels
1

Analog IC - Other Type
ANALOG CIRCUIT

Accuracy
±1.25%

Response Time
400ns

Sensor Type
Hall Effect, Closed Loop

Linearity
±0.1%

Sensitivity
12.5mV/A

For Measuring
AC/DC

Current - Sensing
50A

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for LEM LKSR 50-NP.

LKSR 50-NP Overview

Safety measures are taken to protect the current sensors by putting them in Module packages. For protection, these sensors are packaged in the Tray. Current sensors should only output 51.3mA current. Currently, the current sensors are terminated with 10. As they work, these current sensors can supply voltages of 5V. Current sensors must supply 4.75V as their minimum voltage. Nevertheless, current sensors should not supply voltages higher than 5.25V.

LKSR 50-NP Features

Moisture Sensitivity Level: 1 (Unlimited)
Operating Temperature: -40°C~105°C TA
1 Channels
Mounting Type: Through Hole
Sensor Type: Hall Effect, Closed Loop
Supply Voltage: 4.75V~5.25V
Frequency: 300kHz
Sensing Current: 50A
Module Package

LKSR 50-NP Applications

There are a lot of LEM USA Inc.
LKSR 50-NP Current Sensors applications.

Overcurrent Detection
Frequency, Voltage, and Solar Inverters
Electrical drives
General purpose inverters
AC variable speed drives
Static converters for DC motor drives
Battery supplied applications
Uninterruptible Power Supplies(UPS)
Switched Mode Power Supplies(SMPS)
Power supplies for welding applications
