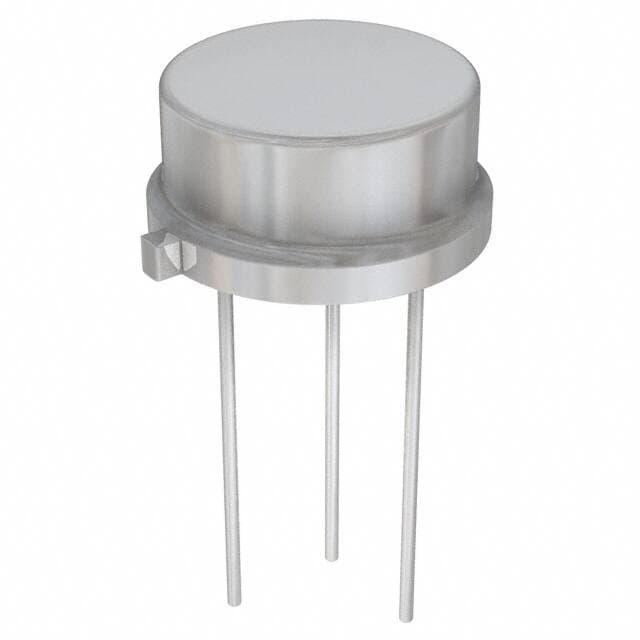

ADI LH0070-2H

Manufacturer No:

LH0070-2H

Manufacturer:

ADI

Package:

TO-205AD, TO-39-3 Metal Can

Description:

-55°C~125°C TA Fixed PMIC LH0070-2 15V TO-205AD, TO-39-3 Metal Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LH0070-2H information

ADI LH0070-2H technical specifications, attributes, parameters and parts with similar specifications to ADI LH0070-2H.

Type
Parameter

Factory Lead Time
14 Weeks

Mounting Type
Through Hole

Package / Case
TO-205AD, TO-39-3 Metal Can

Surface Mount
NO

Operating Temperature
-55°C~125°C TA

Packaging
Bulk

Published
2005

Tolerance
±0.05%

JESD-609 Code
e0

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
3

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn/Pb)

HTS Code
8542.39.00.01

Subcategory
Voltage References

Technology
BIPOLAR

Terminal Position
BOTTOM

Terminal Form
WIRE

Peak Reflow Temperature (Cel)
NOT APPLICABLE

Number of Functions
1

Supply Voltage
15V

Time@Peak Reflow Temperature-Max (s)
NOT APPLICABLE

Base Part Number
LH0070-2

JESD-30 Code
O-MBCY-W3

Number of Outputs
1

Qualification Status
Not Qualified

Output Voltage
10V

Output Type
Fixed

Supply Voltage-Max (Vsup)
40V

Supply Voltage-Min (Vsup)
11.4V

Trim/Adjustable Output
NO

Analog IC - Other Type
THREE TERMINAL VOLTAGE REFERENCE

Voltage - Input
11.4V~40V

Current - Output
10mA

Current - Supply
5mA

Voltage - Output (Min/Fixed)
10V

Reference Type
Series

Supply Current-Max (Isup)
5mA

Output Voltage-Max
10.02V

Temp Coef of Voltage-Max
2.222 ppm/°C

Noise - 0.1Hz to 10Hz
6?Vp-p

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ADI LH0070-2H.

Datasheets:

lineartechnologyanalogdevices-lh00700hpbf-datasheets-1821.pdf

LH0070-2H Overview

This program utilizes the handy TO-205AD, TO-39-3 Metal Can package.This part serves as a voltage reference and is controlled by a Series signal.There is an external packaging of Bulk.With 3, different functions are terminated.Precision voltage measurements require ±0.05% tolerance.Connected to the part is an analog integrated circuit (IC).An output voltage of 10V is determined based on test statistics.It is sufficient to output 1.Fixed forms are provided for user input.A part with 3 pins is included.Reflow soldering shouldn't exceed NOT APPLICABLE.Use of Through Hole can increase the complexity of the PCB design.-55°C~125°C TA is suitable for work within this range.Being a type Voltage References, the voltage reference circuit has many applications.There are other relevant parts if you search for "LH0070-2".There are 0 input applications that can use the voltage reference.There must be a 15V supply voltage for it to function.The voltage must be 11.4V at a minimum.An input voltage of 11.4V~40V is usually supported by the voltage reference circuit.This voltage is set to 10V.There is a supply current called 5mA that is used to operate the voltage reference ic.10.02V is the greatest voltage output from the voltage reference ic.

LH0070-2H Features

±0.05% Tolerance
THREE TERMINAL VOLTAGE REFERENCE Analog IC
Peak Reflow Temperature: NOT APPLICABLE
Current Supply: 5mA

LH0070-2H Applications

There are a lot of Linear Technology/Analog Devices
LH0070-2H Voltage Reference applications.

Precision data acquisition systems
High resolution converters
Industrial process control systems
Precision instruments
Notebook Computers
Cell Phones
Industrial Process Control
High-Resolution Analog-to-Digital
and Digital-to-Analog Converters
High-Accuracy Reference Standard
