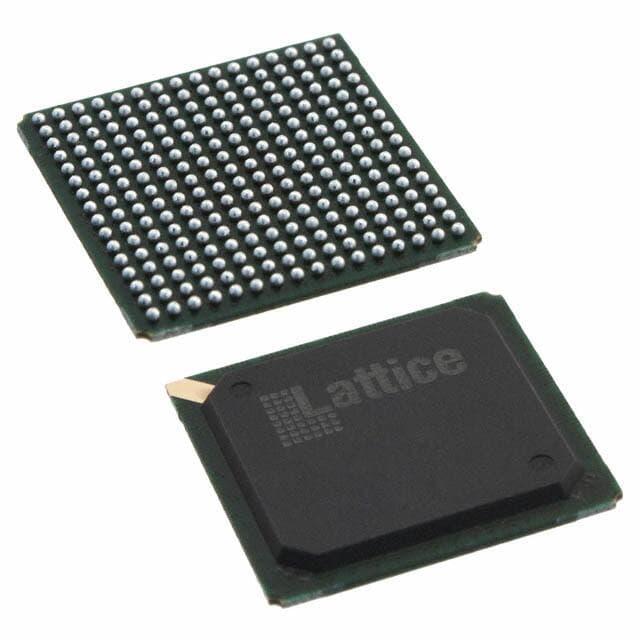

LATTICE LFXP6C-3FN256C

Manufacturer No:

LFXP6C-3FN256C

Manufacturer:

LATTICE

Package:

17 X 17 MM, 1 MM PITCH, LEAD FREE, PLASTIC, FPBGA-256

Description:

Description: Field Programmable Gate Array, 720 CLBs, 375MHz, 720-Cell, CMOS, PBGA256, 17 X 17 MM, 1 MM PITCH, LEAD FREE, PLASTIC, FPBGA-256

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LFXP6C-3FN256C information

LATTICE LFXP6C-3FN256C technical specifications, attributes, parameters and parts with similar specifications to LATTICE LFXP6C-3FN256C.

Type
Parameter

Pbfree Code
Yes

RoHS Status
RoHS Compliant

Part Life Cycle Code
Obsolete

Ihs Manufacturer
LATTICE SEMICONDUCTOR CORP

Part Package Code
BGA

Package Description
17 X 17 MM, 1 MM PITCH, LEAD FREE, PLASTIC, FPBGA-256

Pin Count
256

Reach Compliance Code
compliant

ECCN Code
EAR99

HTS Code
8542.39.00.01

Clock Frequency-Max
375 MHz

Combinatorial Delay of a CLB-Max
0.63 ns

JESD-30 Code
S-PBGA-B256

JESD-609 Code
e1

Length
17 mm

Moisture Sensitivity Level
3

Number of CLBs
720

Number of Inputs
188

Number of Logic Cells
720

Number of Outputs
188

Number of Terminals
256

Operating Temperature-Max
85 °C

Organization
720 CLBS

Package Body Material
PLASTIC/EPOXY

Package Equivalence Code
BGA256,16X16,40

Package Shape
SQUARE

Package Style
GRID ARRAY

Peak Reflow Temperature (Cel)
250

Programmable Logic Type
FIELD PROGRAMMABLE GATE ARRAY

Qualification Status
Not Qualified

Seated Height-Max
2.1 mm

Supply Voltage-Max
3.465 V

Supply Voltage-Min
1.71 V

Supply Voltage-Nom
1.8 V

Surface Mount
YES

Technology
CMOS

Temperature Grade
OTHER

Terminal Finish
Tin/Silver/Copper (Sn/Ag/Cu)

Terminal Form
BALL

Terminal Pitch
1 mm

Terminal Position
BOTTOM

Time@Peak Reflow Temperature-Max (s)
40

Width
17 mm

Download datasheets and manufacturer documentation for LATTICE LFXP6C-3FN256C.

Datasheets:

LATTS01035-1.pdf

LFXP6C-3FN256C Overview

A 256-BGA package contains it, and it is available for download. There are FIELD PROGRAMMABLE GATE ARRAY transistors in this type of FPGA. Its 188 I/Os help it transfer data more efficiently. A fundamental building block contains 6000 logic elements or cells. Power is provided by a 1.8V-volt supply. An FPGA part from the Field Programmable Gate Arrays family. The Surface Mount-slot connector on the FPGA module can be connected to the development board. Fpga chips operates at a voltage of 1.71V~3.465V and uses a battery to supply power. FPGAs belonging to the XP series are a type of FPGA that belong to the XP series of FPGAs. Operating temperatures should be maintained within the 0°C~85°C TJ range at all times when the unit is in use. During the installation of this device, 188 outputs were incorporated. A model of this FPGA is contained in Tray for the purpose of saving space. In total, there are a total of 256 terminations on fpga chips. Having a RAM bit size of 73728 means that this device will offer you a lot of memory. For related parts, use its base part number LFXP6. A significant amount of RAM is allocated to this FPGA module to ensure that the program can operate normally. This cable has 256 pins and is designed to connect to a computer. Providing the FPGA is mounted in Surface Mount as per the specifications of the IC, then it should work perfectly according to its specifications. With a 1.8V supply voltage, designers can fully utilize the flexibility of the device. Power is supplied to the device by a 1.8/2.5/3.3V battery. Featuring 256 pins in total, it is a versatile device. In this FPGA module, there is a memory of 11.9kB available for storing applications and data. In order to make the architecture work, 720 CLBs are used. A frequency of 320MHz provides high efficiency. As most of the logic cells for the building blocks are 720 logic cells, it incorporates a lot of logic.

LFXP6C-3FN256C Features

188 I/Os
Up to 73728 RAM bits
256 LABs/CLBs
Operating from a frequency of 320MHz

LFXP6C-3FN256C Applications

There are a lot of Lattice Semiconductor Corporation
LFXP6C-3FN256C FPGAs applications.

Integrating multiple SPLDs
Voice recognition
Cryptography
Filtering and communication encoding
Aerospace and Defense
Medical Electronics
Audio
Automotive
Consumer Electronics
Distributed Monetary Systems
