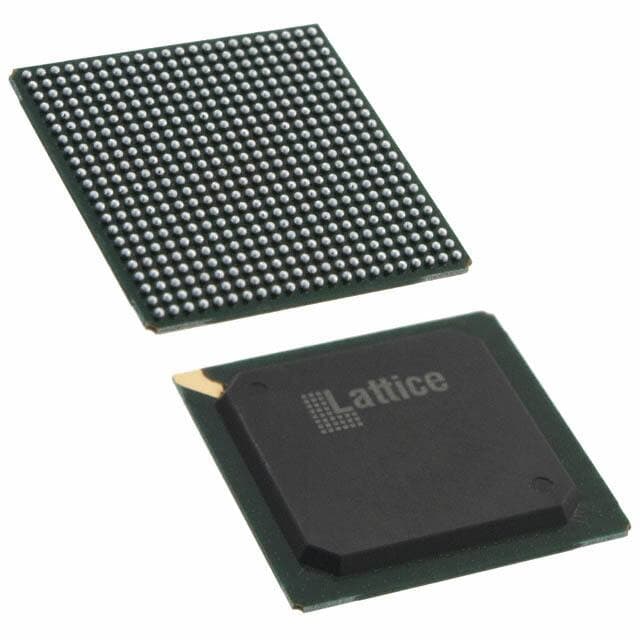

LATTICE LFE2M50E-5FN484C

Manufacturer No:

LFE2M50E-5FN484C

Manufacturer:

LATTICE

Package:

484-BBGA

Description:

1.2V V 2.6mm mm 531kB B FPGAs ECP2M Series 484-BBGA 1mm mm 484

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LFE2M50E-5FN484C information

LATTICE LFE2M50E-5FN484C technical specifications, attributes, parameters and parts with similar specifications to LATTICE LFE2M50E-5FN484C.

Type
Parameter

Factory Lead Time
8 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
484-BBGA

Number of Pins
484

Operating Temperature
0°C~85°C TJ

Packaging
Tray

Series
ECP2M

Published
2012

JESD-609 Code
e1

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
484

ECCN Code
EAR99

Terminal Finish
Tin/Silver/Copper (Sn/Ag/Cu)

HTS Code
8542.39.00.01

Subcategory
Field Programmable Gate Arrays

Voltage - Supply
1.14V~1.26V

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
250

Supply Voltage
1.2V

Terminal Pitch
1mm

Base Part Number
LFE2M50

Pin Count
484

Number of Outputs
270

Operating Supply Voltage
1.2V

Memory Size
531kB

Number of I/O
270

RAM Size
518.4kB

Programmable Logic Type
FIELD PROGRAMMABLE GATE ARRAY

Number of Logic Elements/Cells
48000

Total RAM Bits
4246528

Max Frequency
311MHz

Number of LABs/CLBs
6000

Combinatorial Delay of a CLB-Max
0.358 ns

Number of Logic Cells
50000

Length
23mm

Height Seated (Max)
2.6mm

Width
23mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for LATTICE LFE2M50E-5FN484C.

LFE2M50E-5FN484C Overview

A 484-BBGA package is provided with this component. FPGAs of this type consist of FIELD PROGRAMMABLE GATE ARRAY components. This device features 270 I/Os in order to transfer data in a more efficient manner. A fundamental building block is made up of 48000 logic elements/cells. An electrical supply voltage of 1.2V powers it. A Field Programmable Gate Arrays-series FPGA part. An FPGA module can be attached to a development board with a Surface Mount-pin. Powered by a 1.14V~1.26V supply voltage, fpga chips is able to operate at high speeds. The FPGA belongs to the ECP2M series of FPGAs, and it is one type of FPGA. During the operation of the system, the operating temperature should remain within the range of 0°C~85°C TJ. In order to make this device as versatile as possible, there are 270 different outputs included. It is for space saving reasons that this FPGA model is contained in Tray. As a whole, it has 484 terminations. The RAM bits that are offered by this fpga chips are 4246528. Related parts can be found by using its base part number LFE2M50. The FPGA module's RAM si518.4kBe reaches 518.4kB in order to ensure that the program operates in a normal manner. 484 pins are designed into the device. Fpga electronics contains 6000 LABs/CLBs in an array. As long as this FPGA is mounted in Surface Mount, it should be able to function as it should in terms of its specifications, as well as its capabilities. A 1.2V-volt supply allows designers to fully utilize its flexibility. In addition to this, it has 484 pins. There is a memory of 531kB embedded in this FPGA module, which can be used for storing programs and data. Using this FPGA, you can get speeds up to 311MHz. In order for the building block to work, fpga semiconductor consists of 50000 logic cells.

LFE2M50E-5FN484C Features

270 I/Os
Up to 4246528 RAM bits
484 LABs/CLBs

LFE2M50E-5FN484C Applications

There are a lot of Lattice Semiconductor Corporation
LFE2M50E-5FN484C FPGAs applications.

Medical imaging
Computer hardware emulation
Integrating multiple SPLDs
Voice recognition
Cryptography
Filtering and communication encoding
Aerospace and Defense
Medical Electronics
Audio
Automotive
