Microchip LE87611NQCT

Manufacturer No:

LE87611NQCT

Manufacturer:

Package:

Description:

The Le87611 is a single channel differential amplifier designed to work in Home Plug Alliance HPAV2 systems with very low power dissipation. The Le87611 contains a pair of wideband amplifiers designed with Microchip\u0027s HV15 Bipolar SOI process for low power consumption. The line driver gain is fixed internally. The amplifiers are powered from a single supply. The device can be programmed to one of three preset bias levels or to impedance controlled Disable or Standby states. The control pins respond to input levels that can be generated with a standard tri-state GPIO.

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LE87611NQCT information

Microchip LE87611NQCT technical specifications, attributes, parameters and parts with similar specifications to Microchip LE87611NQCT.

Type
Parameter

Application
PLC, G.HN, HPAV 2.0

Series
PLC

Loop Length
Short

Signal Power (dBm)
8

Number of Ports
1

Download datasheets and manufacturer documentation for Microchip LE87611NQCT.

Data Sheets:

b818230d9f183bbd163b9ccf6b9e8cb5.pdf

The Le87611 is a single channel differential amplifier designed to work in Home Plug Alliance HPAV2 systems with very low power dissipation. The Le87611 contains a pair of wideband amplifiers designed with Microchip's HV15 Bipolar SOI process for low power consumption. The line driver gain is fixed internally. The amplifiers are powered from a single supply. The device can be programmed to one of three preset bias levels or to impedance controlled Disable or Standby states. The control pins respond to input levels that can be generated with a standard tri-state GPIO.

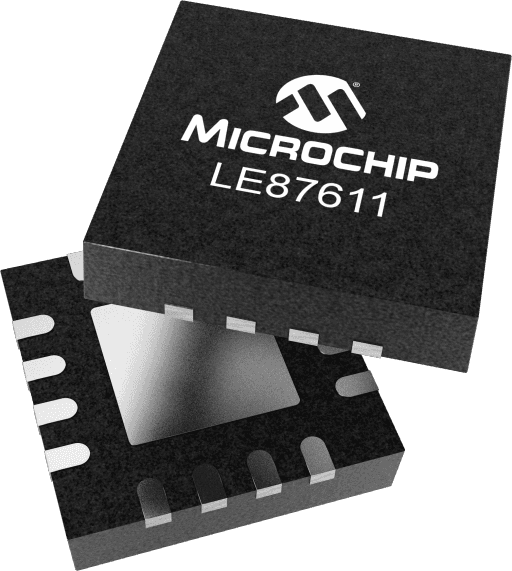

Small 16-pin, 4x4 mm QFN Package

Class AB Operation

Four programmable states

No external gain resistors required

RoHS compliant

User Guide
