Microchip LE87402MQCT
Manufacturer No:
LE87402MQCT
Manufacturer:
Package:

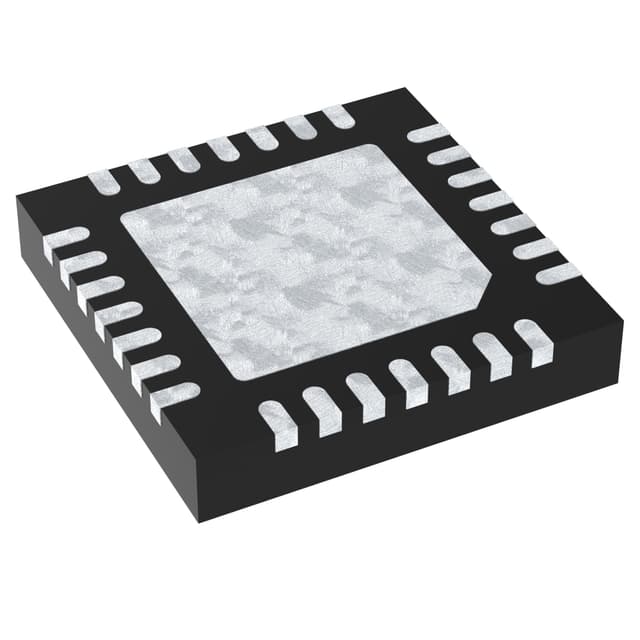

28-VQFN Exposed Pad
Description:
The Le87402 is a 2-channel channel line driver designed to work in Home Plug Alliance HPAV2 systems, G.HN and MOCA. Each channel can be enabled independently allowing multiple-in, multiple-out (MIMO) or single-in, single-out (SISO) operation. The Le87402 can drive a line impedance of 100 O down to 12 O through a proper transformer and delivers superior performance with power efficiency using Class GH operation.
Quantity:
User Guide
Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
LE87402MQCT Information
Microchip LE87402MQCT technical specifications, attributes, parameters and parts with similar specifications to Microchip LE87402MQCT.
- Type
- Parameter
- Application
- PLC, G.HN, HPAV 2.0
- Series
- PLC
- Loop Length
- Short
- Signal Power (dBm)
- 20
- Number of Ports
- 2
- Type
- Parameter
Download datasheets and manufacturer documentation for Microchip LE87402MQCT.
Data Sheets:
- Designed for HPAV2 Standard
- MIMO or SISO Operation
- Best in Class Density
- Dual Channel Architecture
- 28-pin, 4x5 mm Package
- Low Power Operation
- Class GH Operation
- Supports HPAV2 Power Save Mode
- Independent Channel Enable/Disable Control
- Capable of Driving Line Impedance Between 12 Ohm to 100 Ohm
- Operation to 86 MHz
- High Signal Level Operation
- -54.5 dBm/Hz, 2 - 30 MHz
- -85.0 dBm/Hz, 30 - 86 MHz
- +12 V Operation
- RoHS compliant
