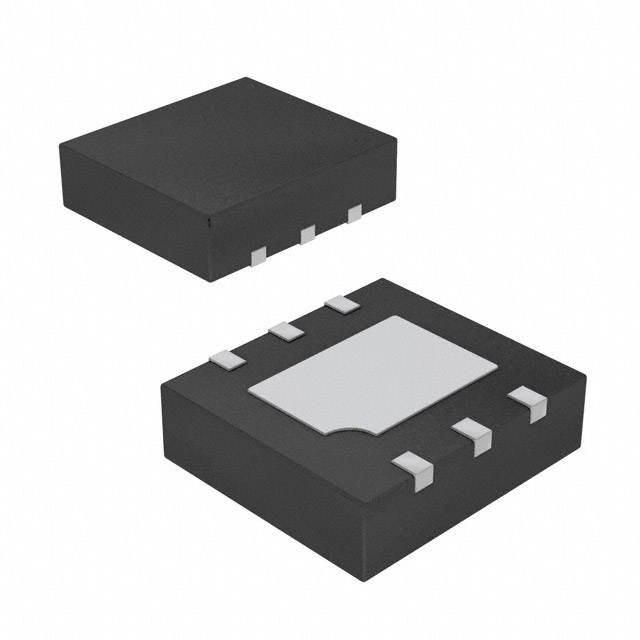

ST LDLN015PU15R

Manufacturer No:

LDLN015PU15R

Manufacturer:

Package:

6-UFDFN Exposed Pad

Description:

Enable Fixed 0.5mm LDLN015 PMIC 6 6-UFDFN Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LDLN015PU15R information

ST LDLN015PU15R technical specifications, attributes, parameters and parts with similar specifications to ST LDLN015PU15R.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 7 months ago)

Factory Lead Time
14 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
6-UFDFN Exposed Pad

Number of Pins
6

Operating Temperature
-40°C~125°C

Packaging
Tape & Reel (TR)

Tolerance
1%

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
6

ECCN Code
EAR99

Subcategory
Other Regulators

Packing Method
TAPE AND REEL

Technology
CMOS

Terminal Position
DUAL

Number of Functions
1

Terminal Pitch
0.5mm

Base Part Number
LDLN015

Pin Count
6

Current - Supply (Max)
120μA

Number of Outputs
1

Voltage - Input (Max)
5.5V

Output Type
Fixed

Max Output Current
150mA

Output Configuration
Positive

Quiescent Current
60μA

Control Features
Enable

Accuracy
1 %

Output Voltage 1
1.5V

Number of Regulators
1

Min Input Voltage
2.1V

Protection Features
Over Current, Over Temperature

PSRR
92dB ~ 50dB (1kHz ~ 100kHz)

Dropout Voltage
86mV

Power Supply Rejection Ratio (PSRR)
92dB

Nominal Output Voltage
1.5V

Length
2mm

Width
2mm

REACH SVHC
No SVHC

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ST LDLN015PU15R.

Datasheets:

stmicroelectronics-ldln015pu15r-datasheets-0161.pdf

LDLN015PU15R Overview

An Tape & Reel (TR) case is included with the delivery. There is a 6-UFDFN Exposed Pad case with the integrated voltage regulator. There are 6 terminations on the battery regulator IC chip and each of them has its own function. In terms of output type, Fixed is what the Regulator IC produces. The electronic component implements 1 Voltage regulator ICs. IC Regulator is possible to alter the range of the operating temperature of Surface Mount in the device. In order for this IC voltage regulator to operate, the temperature has to be kept at -40°C~125°C degrees. In this case, the output function that is configured for this regulator IC is Positive. The chip itself consists of 6 pins in total, which make up its overall size. In order to ensure prompt, adequate, and prompt performance, this regulator has 1 outputs in total. In terms of its dropout voltage, it is 10 volts. There are 6 pins on the chip. It is LDLN015 for this regulator, just for your information. In this instance, we are dealing with a typical Other Regulators-shaped component. In order to pack the regulator, the method is TAPE AND REEL. In order to meet the operating requirements of the regulator, its maximal output current reaches 150mA. It operates in the 60μA Quiescent Current state. The tolerance on this voltage regulator IC is 1%, a relatively low value.

LDLN015PU15R Features

86mV dropout voltage
Other Regulators subtageroy
TAPE AND REEL method of packing
1% tolerance

LDLN015PU15R Applications

There are a lot of STMicroelectronics
LDLN015PU15R Linear Voltage Regulators applications.

Camera
Video equipment
CPU power supply
Switching regulator
Multiple-power supply system
Digital audio player
Digital TV
Smartcard
Industrial equipment
DVD and CD-ROM drive
