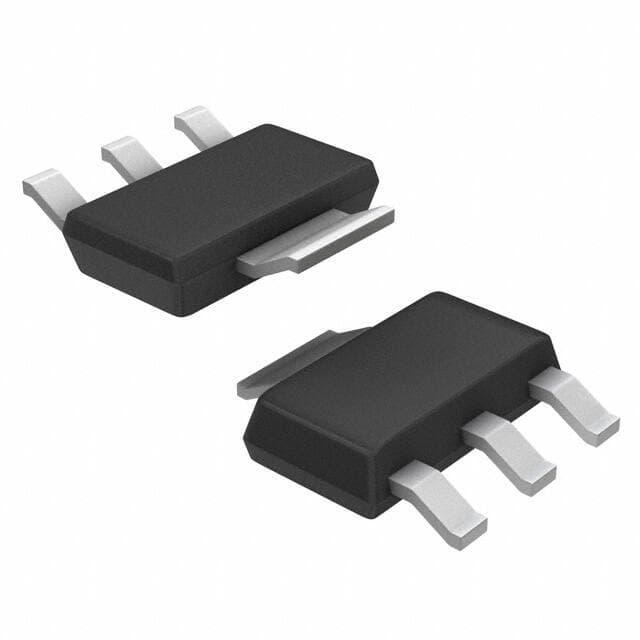

ST LDL1117S30R
ST LDL1117S30R

ST LDL1117S30R

Manufacturer No:

LDL1117S30R

Manufacturer:

ST

Package:

TO-261-4, TO-261AA

Description:

Fixed 2.3mm LDL1117 PMIC TO-261-4, TO-261AA

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LDL1117S30R information

ST LDL1117S30R technical specifications, attributes, parameters and parts with similar specifications to ST LDL1117S30R.

  • Type
  • Parameter
  • Lifecycle Status
  • ACTIVE (Last Updated: 7 months ago)
  • Factory Lead Time
  • 8 Weeks
  • Mounting Type
  • Surface Mount
  • Package / Case
  • TO-261-4, TO-261AA
  • Surface Mount
  • YES
  • Operating Temperature
  • -40°C~125°C TJ
  • Packaging
  • Tape & Reel (TR)
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 4
  • Terminal Position
  • DUAL
  • Terminal Form
  • GULL WING
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Number of Functions
  • 1
  • Terminal Pitch
  • 2.3mm
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Base Part Number
  • LDL1117
  • JESD-30 Code
  • R-PDSO-G4
  • Voltage - Input (Max)
  • 18V
  • Output Type
  • Fixed
  • Output Configuration
  • Positive
  • Current - Output
  • 1.2A
  • Output Voltage 1
  • 3V
  • Input Voltage (Min)
  • 4V
  • Number of Regulators
  • 1
  • Protection Features
  • Over Current, Over Temperature, Under Voltage Lockout (UVLO)
  • Current - Quiescent (Iq)
  • 500μA
  • Voltage Dropout (Max)
  • 0.6V @ 1.2A
  • PSRR
  • 87dB ~ 65dB (120Hz ~ 100kHz)
  • Output Voltage1-Max
  • 3.09V
  • Length
  • 6.5mm
  • Width
  • 3.5mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for ST LDL1117S30R.

Datasheets:

LDL1117S30R Overview


A Tape & Reel (TR) case is used to deliver the Voltage Regulated IC. A TO-261-4, TO-261AA case is used for packaging. As you can see, the IC chip has 4 terminations. Regulator IC chip's output type is Fixed. The electronic part implements 1 regulators in total. In this Regulator IC chip, the operating temperature of Surface Mount varies. -40°C~125°C TJ degrees is the operating temperature of the Voltage Regulator IC. There is one output function configured for this voltage regulator IC, and that is Positive. As far as its current output is concerned, it stands at 1.2A. For your information, this regulator's basic part number is LDL1117.
