ST LD59150PURY
ST LD59150PURY

ST LD59150PURY

Manufacturer No:

LD59150PURY

Manufacturer:

ST

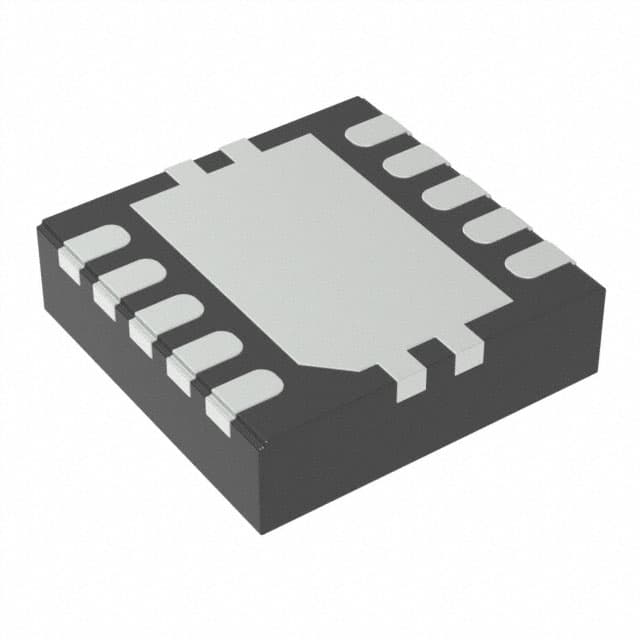

Package:

DFN-10

Description:

1.5 A Low Dropout Linear Regulator with Programmable Soft-Start

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LD59150PURY information

ST LD59150PURY technical specifications, attributes, parameters and parts with similar specifications to ST LD59150PURY.

  • Type
  • Parameter
  • RoHS Status
  • RoHS Compliant
  • Part Life Cycle Code
  • Active
  • Ihs Manufacturer
  • STMICROELECTRONICS
  • Package Description
  • DFN-10
  • Reach Compliance Code
  • compliant
  • ECCN Code
  • EAR99
  • HTS Code
  • 8542.39.00.01
  • Factory Lead Time
  • 4 Weeks
  • Samacsys Manufacturer
  • STMicroelectronics
  • Adjustability
  • ADJUSTABLE
  • Dropout Voltage1-Max
  • 0.125 V
  • Dropout Voltage1-Nom
  • 0.065 V
  • JESD-30 Code
  • S-PDSO-N10
  • JESD-609 Code
  • e3
  • Length
  • 3 mm
  • Moisture Sensitivity Level
  • 3
  • Number of Functions
  • 1
  • Number of Outputs
  • 1
  • Number of Terminals
  • 10
  • Operating Temperature TJ-Max
  • 125 °C
  • Operating Temperature TJ-Min
  • -40 °C
  • Output Current1-Max
  • 1.5 A
  • Output Voltage1-Max
  • 3.6 V
  • Output Voltage1-Min
  • 0.796 V
  • Package Code
  • HVSON
  • Package Equivalence Code
  • SOLCC10,.12,20
  • Package Shape
  • SQUARE
  • Package Style
  • SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
  • Packing Method
  • TR
  • Regulator Type
  • ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR
  • Screening Level
  • AEC-Q100
  • Seated Height-Max
  • 0.9 mm
  • Surface Mount
  • YES
  • Terminal Finish
  • Matte Tin (Sn) - annealed
  • Terminal Form
  • NO LEAD
  • Terminal Pitch
  • 0.5 mm
  • Terminal Position
  • DUAL
  • Width
  • 3 mm

Download datasheets and manufacturer documentation for ST LD59150PURY.

Datasheets:

LD59150PURY Overview


In a Tape & Reel (TR) case, the IC voltage regulator is delivered. A 10-VFDFN Exposed Pad case contains the Liner IC. This PMIC chip has an output type of Adjustable. In this electrical part, there are 1 regulators that are implemented. Voltage Regulated IC Surface Mount, Wettable Flank varies its operating temperature range. The IC Voltage Regulator's operating temperature is -40°C~125°C TJ degrees. Currently, this regulator IC has an output function configured as Positive as its output function. The current output of this IC regulator is 1.5A. It is LD59150 for this voltage regulator IC, just for your information.

LD59150PURY Features




LD59150PURY Applications


There are a lot of STMicroelectronics
LD59150PURY Linear Voltage Regulators applications.


  • Portable telephone
  • Electronic notebook
  • Camera
  • Video equipment
  • CPU power supply
  • Switching regulator
  • Multiple-power supply system
  • Digital audio player
  • Digital TV
  • Smartcard
