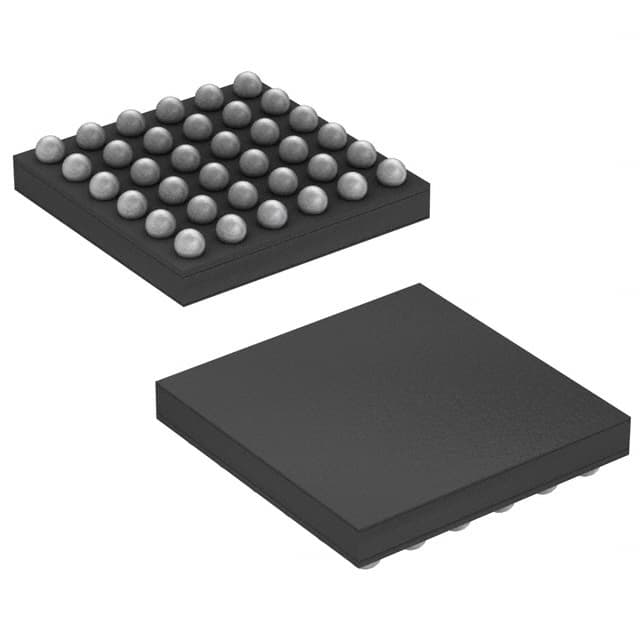

LATTICE LCMXO3LF-1300E-5UWG36CTR1K

Manufacturer No:

LCMXO3LF-1300E-5UWG36CTR1K

Manufacturer:

LATTICE

Package:

36-UFBGA, WLCSP

Description:

Field Programmable Gate Array, PBGA36, WLCSP-36

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LCMXO3LF-1300E-5UWG36CTR1K information

LATTICE LCMXO3LF-1300E-5UWG36CTR1K technical specifications, attributes, parameters and parts with similar specifications to LATTICE LCMXO3LF-1300E-5UWG36CTR1K.

Type
Parameter

RoHS Status
RoHS Compliant

Part Life Cycle Code
Active

Ihs Manufacturer
LATTICE SEMICONDUCTOR CORP

Reach Compliance Code
compliant

ECCN Code
EAR99

HTS Code
8542.39.00.01

Samacsys Manufacturer
Lattice Semiconductor

Clock Frequency-Max
127.2 MHz

JESD-30 Code
R-PBGA-B36

Length
2.541 mm

Number of CLBs
160

Number of Inputs
28

Number of Outputs
28

Number of Terminals
36

Operating Temperature-Max
85 °C

Organization
160 CLBS

Package Body Material
PLASTIC/EPOXY

Package Code
VFBGA

Package Shape
RECTANGULAR

Package Style
GRID ARRAY, VERY THIN PROFILE, FINE PITCH

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Programmable Logic Type
FIELD PROGRAMMABLE GATE ARRAY

Seated Height-Max
0.576 mm

Supply Voltage-Max
1.26 V

Supply Voltage-Nom
1.2 V

Surface Mount
YES

Temperature Grade
OTHER

Terminal Form
BALL

Terminal Pitch
0.4 mm

Terminal Position
BOTTOM

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Width
2.487 mm

Download datasheets and manufacturer documentation for LATTICE LCMXO3LF-1300E-5UWG36CTR1K.

LCMXO3LF-1300E-5UWG36CTR1K Overview

There are two packages that contain fpga chips: 36-UFBGA, WLCSP package and X package. The FIELD PROGRAMMABLE GATE ARRAY-series of FPGAs are composed of this type. Having 28 I/Os makes data transfers more coherent. Logic blocks consist of 1280 logic elements/cells. The supply voltage is 1.2V volts. An attachment Surface Mount allows the FPGA module to be attached to the development board. The supply voltage of the device is 1.14V~1.26V , at which it runs. The MachXO3 series FPGA is a type of FPGA that belongs to the MachXO3 family of FPGAs. When operating the machine, it is important to keep the temperature within 0°C~85°C TJ range. There is an FPGA model contained in Tape & Reel (TR) in order to conserve space. In total, it has 36 terminations on each end. A device like this one offers 65536 RAM bits, which is a considerable amount of memory. This FPGA module has a RAM si8kBe of 8kB that is sufficient to make sure that the program is able to run normally. A total of 160 LABs/CLBs make up this FPGA array. Having stated that, if this FPGA is mounted in Surface Mount, then it may be able to perform fantastically according to its specifications. A CLB is a basic module that determines the architecture of a system.

LCMXO3LF-1300E-5UWG36CTR1K Features

28 I/Os
Up to 65536 RAM bits

LCMXO3LF-1300E-5UWG36CTR1K Applications

There are a lot of Lattice Semiconductor Corporation
LCMXO3LF-1300E-5UWG36CTR1K FPGAs applications.

Computer hardware emulation
Integrating multiple SPLDs
Voice recognition
Cryptography
Filtering and communication encoding
Aerospace and Defense
Medical Electronics
Audio
Automotive
Consumer Electronics
