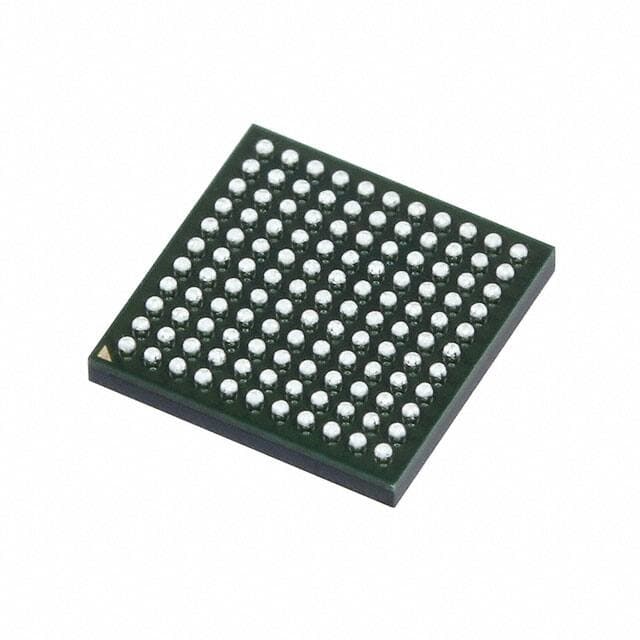

LATTICE LCMXO3L-4300E-6MG121C

Manufacturer No:

LCMXO3L-4300E-6MG121C

Manufacturer:

LATTICE

Package:

121-VFBGA

Description:

Field Programmable Gate Array, 540 CLBs, PBGA121, CSFBGA-121

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LCMXO3L-4300E-6MG121C information

LATTICE LCMXO3L-4300E-6MG121C technical specifications, attributes, parameters and parts with similar specifications to LATTICE LCMXO3L-4300E-6MG121C.

Type
Parameter

RoHS Status
RoHS Compliant

Part Life Cycle Code
Active

Ihs Manufacturer
LATTICE SEMICONDUCTOR CORP

Reach Compliance Code
compliant

ECCN Code
EAR99

HTS Code
8542.39.00.01

Samacsys Manufacturer
Lattice Semiconductor

JESD-30 Code
S-PBGA-B121

JESD-609 Code
e1

Length
6 mm

Moisture Sensitivity Level
3

Number of CLBs
540

Number of Terminals
121

Operating Temperature-Max
85 °C

Organization
540 CLBS

Package Body Material
PLASTIC/EPOXY

Package Code
VFBGA

Package Equivalence Code
BGA121,11X11,20

Package Shape
SQUARE

Package Style
GRID ARRAY, VERY THIN PROFILE, FINE PITCH

Peak Reflow Temperature (Cel)
260

Programmable Logic Type
FIELD PROGRAMMABLE GATE ARRAY

Seated Height-Max
1 mm

Supply Voltage-Max
1.26 V

Supply Voltage-Nom
1.2 V

Surface Mount
YES

Temperature Grade
OTHER

Terminal Finish
TIN SILVER COPPER

Terminal Form
BALL

Terminal Pitch
0.5 mm

Terminal Position
BOTTOM

Width
6 mm

Download datasheets and manufacturer documentation for LATTICE LCMXO3L-4300E-6MG121C.

Datasheets:

LATT-S-A0019484813-1.pdf

LCMXO3L-4300E-6MG121C Overview

There is a 121-VFBGA package that includes this component. FIELD PROGRAMMABLE GATE ARRAY is the component of this type of FPGA. 100 I/Os are available for transferring data more efficiently. A fundamental building block consists of 4320 logic elements/cells. It is powered from a supply voltage of 1.2V. The Surface Mount-slot on the development board allows you to attach the FPGA module. A supply voltage of 1.14V~1.26V is needed in order for fpga chips to operate. As part of the MachXO3 series of FPGAs, it is a type of FPGA. While operating, the operating temperature should be kept within a range of 0°C~85°C TJ. As a space-saving measure, this FPGA model is contained within Tray. Total terminations are 121. There are 94208 RAM bits that are available with this device. In order to find related parts, you can use its base part number LCMXO3L-4300. There is a maximum RAM si11.5kBe of 11.5kB on this FPGA module, which is necessary to ensure the normal operation of the program. It has a total of 121 pins that are designed for it. 540 LABs and CLBs are built into this FPGA. Providing that this FPGA is mounted in Surface Mount, it will be able to perform according to its specifications in a flawless manner. There are 540 CLBs that make up the architecture of the system.

LCMXO3L-4300E-6MG121C Features

100 I/Os
Up to 94208 RAM bits
121 LABs/CLBs

LCMXO3L-4300E-6MG121C Applications

There are a lot of Lattice Semiconductor Corporation
LCMXO3L-4300E-6MG121C FPGAs applications.

Device controllers
Software-defined radio
Random logic
ASIC prototyping
Medical imaging
Computer hardware emulation
Integrating multiple SPLDs
Voice recognition
Cryptography
Filtering and communication encoding
