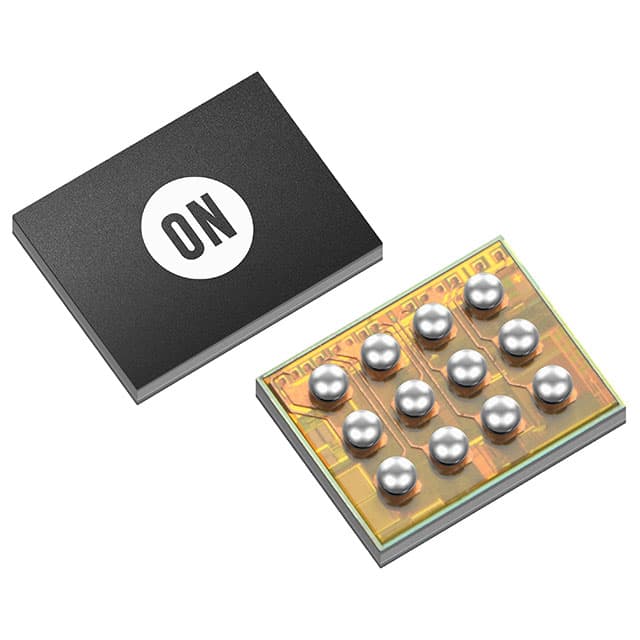

ONSEMI LC709204FXE-01TBG

Manufacturer No:

LC709204FXE-01TBG

Manufacturer:

ONSEMI

Package:

12-UFBGA, WLCSP

Description:

Battery Fuel Gauge for 1-Cell Lithium-Ion/Polymer (Li+) [Smart Lib Gauge] with low-power 2 µA operation

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LC709204FXE-01TBG information

ONSEMI LC709204FXE-01TBG technical specifications, attributes, parameters and parts with similar specifications to ONSEMI LC709204FXE-01TBG.

Type
Parameter

MSL Temp (°C)
260

VDD Max (V)
5

Case Outline
567XE

MSL Type
1

Container Type
REEL

Container Qty.
5000

Battery Type
Li-Ion/Polymer

Interface
I2C

VDD Min (V)
2.5

IDD (µA)
2

Package Type
WLCSP12, 1.48x1.91x0.51

Number of Cells Charged
1

Tolerance (%)
2

TA Min (°C)
-40

TA Max (°C)
85

Download datasheets and manufacturer documentation for ONSEMI LC709204FXE-01TBG.

Datasheet:

92a03172d0b82e8568f4dadaf4b8687a.pdf

Package Drawing:

ebf08dc69af99e4d5bfc0aac6f3bc7ec.pdf

LC709204F is a Fuel Gauge(in other words, Gas Gauge, Battery Monitor or Battery Gauge) for 1-Cell Lithium-Ion/Polymer batteries. It is a member of our Smart LiB Gauge family of Fuel Gauges that use a unique algorithm called HG-CVR2 to accurately measure a battery's RSOC (Relative State of Charge) even under unstable conditions such as changes in battery temperature, loading, aging and self-discharge. The HG-CVR2 algorithm can be easily configured to begin taking battery measurements by setting up a few parameters after battery insertion, reducing complexity in the development process. LC709204F also includes SOH reporting and multiple integrated alarm functions to support battery safety.

Application

Battery Management for portable and wireless applications

End Product

Wearables
Portable headsets
Smartphones / PDA devices
Wireless handsets
Portable game players
USB-related devices

Feature

High accuracy gauging
Low power consumption
Stable gauging
Small footprint
Alarm function: RSOC / Voltage / Temperature
Battery lifetime measurement
Multi-thermistor support
I2C interface(up to 400kHz supported)
