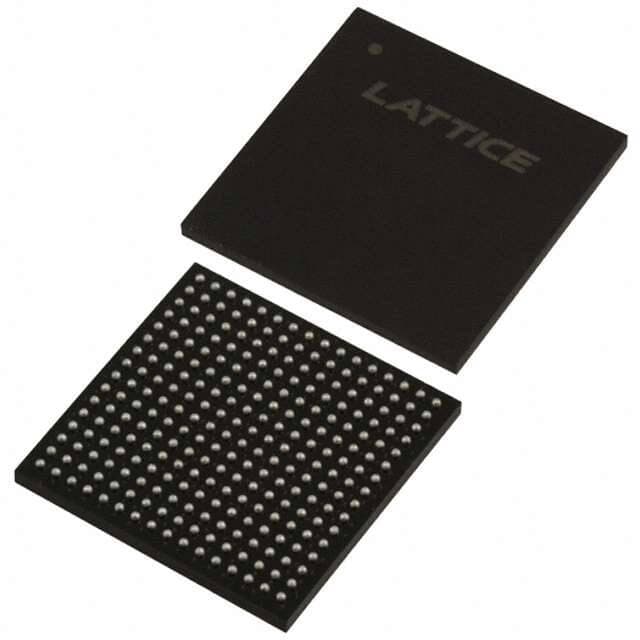

LATTICE LC4512V-75FT256C

Manufacturer No:

LC4512V-75FT256C

Manufacturer:

LATTICE

Package:

FTBGA-256

Description:

Description: EE PLD, 7.5ns, 512-Cell, CMOS, PBGA256, FTBGA-256

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LC4512V-75FT256C information

LATTICE LC4512V-75FT256C technical specifications, attributes, parameters and parts with similar specifications to LATTICE LC4512V-75FT256C.

Type
Parameter

Pbfree Code
No

RoHS Status
Non-RoHS Compliant

Part Life Cycle Code
Obsolete

Ihs Manufacturer
LATTICE SEMICONDUCTOR CORP

Part Package Code
BGA

Package Description
FTBGA-256

Pin Count
256

Reach Compliance Code
compliant

ECCN Code
3A991.D

HTS Code
8542.39.00.01

Samacsys Manufacturer
Lattice Semiconductor

Architecture
PAD-TYPE

Clock Frequency-Max
111 MHz

In-System Programmable
YES

JESD-30 Code
S-PBGA-B256

JESD-609 Code
e0

JTAG BST
YES

Length
17 mm

Moisture Sensitivity Level
3

Number of Dedicated Inputs
4

Number of I/O Lines
208

Number of Inputs
212

Number of Macro Cells
512

Number of Outputs
208

Number of Terminals
256

Operating Temperature-Max
90 °C

Organization
4 DEDICATED INPUTS, 208 I/O

Output Function
MACROCELL

Package Body Material
PLASTIC/EPOXY

Package Code
LBGA

Package Equivalence Code
BGA256,16X16,40

Package Shape
SQUARE

Package Style
GRID ARRAY, LOW PROFILE

Peak Reflow Temperature (Cel)
225

Programmable Logic Type
EE PLD

Propagation Delay
7.5 ns

Qualification Status
Not Qualified

Seated Height-Max
1.55 mm

Supply Voltage-Max
3.6 V

Supply Voltage-Min
3 V

Supply Voltage-Nom
3.3 V

Surface Mount
YES

Terminal Finish
TIN LEAD

Terminal Form
BALL

Terminal Pitch
1 mm

Terminal Position
BOTTOM

Time@Peak Reflow Temperature-Max (s)
30

Download datasheets and manufacturer documentation for LATTICE LC4512V-75FT256C.

Datasheets:

LATT-S-A0013140030-1.pdf

LC4512V-75FT256C Overview

There are 512 macro cells. A macro cell is a cell in a mobile phone network that provides radio coverage through the use of a high-power cell site (tower, antenna or mast).It is contained in package [0].The device is programmed with 208 I/Os.Tray is the packaging method.To ensure reliability, the device operates at a temperature of 0°C~90°C TJ.It is recommended that the chip be mounted by Surface Mount.As part of the ispMACH® 4000V series, it is a type of FPGA.256 pins are programmed on the chip.In accordance with the LC4512, its related parts are listed.A high level of efficiency can be achieved by maintaining the supply voltage at 3.3V.Data is stored using EEPROM.Surface Mount is used to mount this electronic component.A total of 256 pins are provided on this board.It operates at a maximum supply voltage of 3.6V volts.Initially, it requires a voltage of 3V as the minimum supply voltage.A total of 32 logic elements/blocks are present.There is 178.57MHz frequency that can be achieved.A fundamental building block consists of 36 logic elements/cells.

LC4512V-75FT256C Features

256-LBGA package
208 I/Os
The operating temperature of 0°C~90°C TJ
256 pin count
256 pins

LC4512V-75FT256C Applications

There are a lot of Lattice Semiconductor Corporation
LC4512V-75FT256C CPLDs applications.

Timing control
Interface bridging
I/O expansion
Discrete logic functions
Bootloaders for FPGAs
Address decoders
Custom state machines
Digital systems
Portable digital devices
Handheld digital devices
