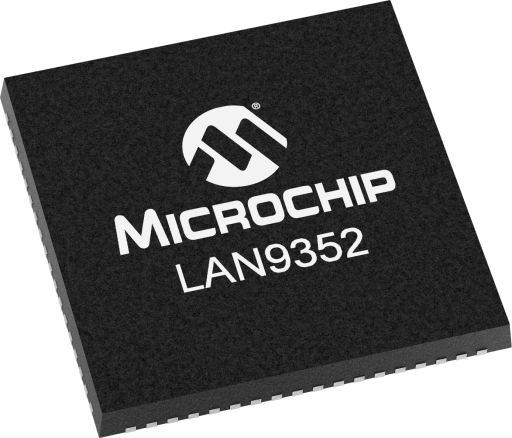

Microchip LAN9352/ML

Microchip's LAN9352/LAN9352i is a high-performance, small-footprint, full-featured 2-port managed Ethernet switch. This device is application-optimized for consumer, embedded and Industrial designs which require a highly integrated, cost effective device with switching functionality, flexibility and ease of integration.

Featuring a small form factor 2-port switch, the LAN9352/9352i supports compact PCB design and with 2 Integrated PHY's. LAN9352 extends the definition of the LAN9353 by replacing the Port 0 MII/RMII/Turbo MII interface with a full featured Ethernet MAC accessible through a high-performance host bus or SPI/SQI Interface. The Host MAC incorporates the essential protocol requirements for operating an Ethernet/IEEE 802.3-compliant node and provides an interface between the Host Bus Interface (HBI) and the Ethernet PHYs and Switch Fabric. The device communicates with the microcontroller through an SRAM-like slave interface. The simple, yet highly functional host bus interface provides a glue-less connection to most common 8 or 16-bit microprocessors and microcontrollers as well as 32-bit microprocessors with an 8 or 16-bit external bus. Alternatively, the device can be accessed via SPI/SQI. The Host MAC interfaces with the 10/100 Ethernet PHY’s (Virtual PHY, Port 1 PHY, Port 2 PHY) via an internal SMI (Serial Management Interface) bus.

IEEE 1588-2008 is supported via the integrated IEEE 1588-2008 hardware time stamp unit, which supports end-to-end and peer-to-peer transparent clocks. The LAN9352 complies with the IEEE 802.3 (full/half-duplex 10BASE-T and 100BASE-TX) Ethernet protocol, IEEE 802.3az Energy Efficient Ethernet (EEE) (100Mbps only), and 802.1D/802.1Q network management protocol specifications, enabling compatibility with industry standard Ethernet and Fast Ethernet applications. 100BASE-FX is supported via an external fiber transceiver.

The LAN9352/9352i switch combines all of the functions of a 10/100 system, including the switch fabric, packet buffers, buffer management, MACs, PHY transceivers and optional serial management functions. Both versions of the device comply with IEEE 802.3 10BASE-T and 100BASE-TX Ethernet protocol specifications, enabling compatibility with industry standard Ethernet and Fast Ethernet applications. Supports Fiber Interface through SFP and SFF Physical medium.

Microchip's complimentary and confidential MicroCHECK design review service, which offers insight from the initial concept to the final PCB layout, is available to customers who are using our products in their projects. You can confidently submit your design materials in a secure and private setting, and our expert engineers will provide individualized feedback to enhance your design. MicroCHECK design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.

Applications:
• Cable, Satellite, and IP Set-top Boxes (STBs)
• Digital Televisions (DTVs)
• Digital/Personal Video Recorders (DVRs/PVRs)
• VoIP/Video Phone Systems
• Building Automation
• Security and Surveillance
• Home Gateways/Consumer Audio/Video
• Test/Measurement Equipment
• Industrial Automation and Control
