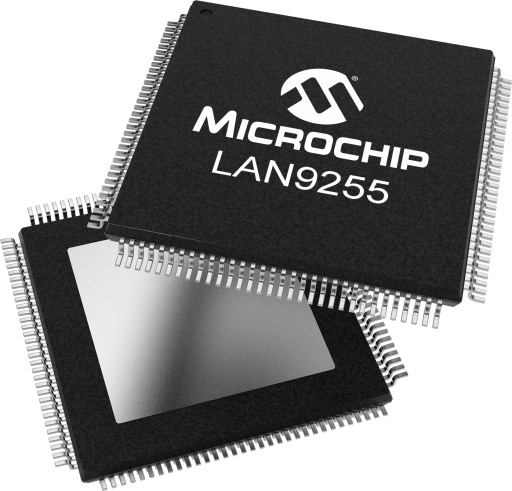

Microchip LAN9255-V/ZMX020
Manufacturer No:
LAN9255-V/ZMX020
Manufacturer:
Microchip
Package:
Description:
Microchip’s LAN9255 is an EtherCAT device controller with Cortex M4F Microcontroller and is available in industrial and extended industrial temperature ranges.
Quantity:
In Stock :7207
Looking for price or availability? Send us an RFQ and our sales team will respond quickly.
Shipping & Availability
Fast worldwide shipping via DHL, FedEx, UPS, and EMS.
Shipped from：HK Warehouse
Expected Shipping：Fri, Jun 12 - Sat, Jun 13, 2026
Lead Time：Inquire about availability
Date Code：Within 2 Years
Payment
We support multiple secure payment methods including PayPal, Visa, MasterCard, and American Express. All transactions are protected with advanced encryption to ensure secure and reliable payments.
Authenticity Guarantee
All components supplied by Aichiplink are sourced from trusted global suppliers and verified through strict in-house inspection and quality control procedures.
Quality Assurance
Certified in-house inspection and testing facilities ensure all components meet internationally recognized quality standards.
User Guide
Available from AS9120 Certified Supplier, AIChipLink delivers high-reliability electronic components supported by certified quality management, rigorous inspection processes, counterfeit mitigation controls, and full traceability systems. Our operations comply with AS9120, ISO 9001:2015, and IECQ ESD standards to support aerospace, industrial, defense, and mission-critical applications.
PURCHASE
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
SHIPPING COST
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
LAN9255-V/ZMX020 Information
Microchip LAN9255-V/ZMX020 technical specifications, attributes, parameters and parts with similar specifications to Microchip LAN9255-V/ZMX020.
- Type
- Parameter
- Ethernet Bandwidth
- 100BASE-TX/
- MAC
- Yes
- PHY
- Yes
- FMMUs
- 8
- SYNC manager
- 8
- Distributed clocks
- 64
- DPRAM
- 8
- Op. Voltage (V)
- 3.300
- Ethernet Ports
- Internal-2
- Temp. Range Min. (°C)
- -40
- Type
- Parameter
- Temp. Range Max. (°C)
- 105
- Fiber
- No
Download datasheets and manufacturer documentation for Microchip LAN9255-V/ZMX020.
Certifications:
Data Sheets:
User Guide:
Design Checklist:
Microchip’s LAN9255 is an EtherCAT device controller (ESC) with Cortex M4F Microcontroller.
EtherCAT functionality is delivered together with dual PHYs which each provide a full-duplex 100BASE-TX transceiver and support 100Mbps (100BASE-TX) operation. The LAN9255 supports HP Auto-MDIX, allowing the use of direct connect or cross-over LAN cables. This device provides system developers a cost-effective solution for realizing EtherCAT device solutions. The 3 port EtherCAT device controller provides 8K bytes of Dual Port memory (DPRAM), 8 SyncManagers, 8 Fieldbus Memory Management Units (FMMUs) and a 64-bit Distributed Clock.
A CortexM4F controller provides a suite of peripherals including Ethernet MAC. Customers can realize multiprotocol designs in the knowledge all items are supported within the MPLABX Harmony Framework
The LAN9255 is available in commercial, industrial and extended industrial temperature ranges and is packaged in 128 pin TQFP.
Microchip's complimentary and confidential MicroCHECK design review service, which offers insight from the initial concept to the final PCB layout, is available to customers who are using our products in their projects. You can confidently submit your design materials in a secure and private setting, and our expert engineers will provide individualized feedback to enhance your design. MicroCHECK design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.
- EtherCAT
- EtherCAT device controller with 8 Fieldbus Memory Management Units (FMMUs) and 8 SyncManagers
- Dual Integrated EtherCAT PHYs (EtherCAT IN / EtherCAT OUT) with HP Auto-MDIX
- Option to operate without ESI EEPROM
