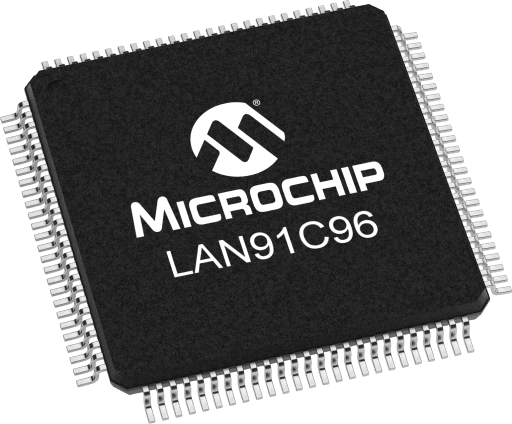

Microchip LAN91C96-MU
Microchip LAN91C96-MUMicrochip LAN91C96-MU

Microchip LAN91C96-MU

Manufacturer No:

LAN91C96-MU

Manufacturer:

Microchip

Package:

100-TQFP

Description:

10Base-T Ethernet Controller

User Guide

Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.

PURCHASE

Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.

MEANS OF PAYMENT

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.

RFQ (REQUEST FOR QUOTATIONS)

Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.

IMPORTANT NOTICE

Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.

Step1：Prepare product

Step1：Prepare product

Step2：Desiccant Protection

Step2：Desiccant Protection

Step3：Vacuum Packaging

Step3：Vacuum Packaging

Step4：Individual Package

Step4：Individual Package

Step5：Anti-collision Filling

Step5：Anti-collision Filling

Step6：Packaging Box

Step6：Packaging Box

SHIPPING COST

1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.

SHIPPING METHOD

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

DELIVERY TIME

1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.

LAN91C96-MU Information

Microchip LAN91C96-MU technical specifications, attributes, parameters and parts with similar specifications to Microchip LAN91C96-MU.

  • Type
  • Parameter
  • Checksum Offload
  • No
  • DownstreamPorts
  • 1
  • ESD Rating
  • 0
  • Port Speed
  • 10Mbps
  • Fiber Support
  • No
  • Interrupt Pin
  • 4
  • LEDS
  • 4
  • LinkMDCableDiag
  • No
  • Mixed Endian
  • No
  • TX/RX Ram Buffer
  • 6K
  • Type
  • Parameter
  • Temperature Range Max
  • 70
  • Temperature Range Min
  • 0
  • Digital I/O Voltage
  • 3.3

Download datasheets and manufacturer documentation for Microchip LAN91C96-MU.

Application Notes:

Data Sheets:

Supporting Collateral:

Brochures:

The LAN91C96 is a VLSI Ethernet Controller that combines Local Bus, PCMCIA, and Motorola 68000 bus interfaces in one chip. LAN91C96 integrates all MAC and physical layer functions, as well as the packet RAM, needed to implement a high performance 10BASE-T (twisted pair) node. For 10BASE5 (thick coax), 10BASE2 (thin coax), and 10BASE-F (fiber) implementations, the LAN91C96 interfaces to external transceivers via the provided AUI port. Only one additional IC is required for most applications. The LAN91C96 comes with Full Duplex Switched Ethernet (FDSWE) support allowing the controller to provide much higher throughput. 6K bytes of RAM is provided to support enhanced throughput and compensate for any increased system service latencies. The controller implements multiple advanced power-down modes including Magic Packet to conserve power and operate more efficiently. The LAN91C96 can directly interface with the Local Bus, PCMCIA, and 68000 buses and deliver no-wait-state operation.


Microchip's complimentary and confidential MicroCHECK design review service, which offers insight from the initial concept to the final PCB layout, is available to customers who are using our products in their projects. You can confidently submit your design materials in a secure and private setting, and our expert engineers will provide individualized feedback to enhance your design. MicroCHECK design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.



  • Non-PCI Single-Chip Ethernet Controller
  • A Subset of Motorola 6800 Bus Interface Support
  • Fully Supports Full Duplex Switched Ethernet
  • Supports Enhanced Transmit Queue Management
  • 6K Bytes of On-Chip RAM
  • Supports IEEE 802.3 (ANSI 8802-3) Ethernet Standards
  • Automatic Detection of TX/RX Polarity Reversal
  • Enhanced Power Management Features
  • Supports "Magic Packet" Power Management Technology
  • Hardware Memory Management Unit
  • Optional Configuration via Serial EEPROM Interface (Jumperless)
  • Supports Single +5V or +3.3V (for Revisions E and Later) VCC Design
  • Supports Mixed Voltage External PHY Designs
  • Low Power CMOS Design
  • 100 Pin QFP and TQFP (1.0mm Body Thickness) RoHS Compliant Packages
  • Pin Compatible with the LAN91C92 and LAN91C94
  • Direct Interface to Local Bus, PCMCIA, and 68000 Buses with No Wait States
  • Flexible Bus Interface
  • 16 Bit Data and Control Paths
  • Fast Access Time
  • Pipelined Data Path
  • Handles Block Word Transfers for Any Alignment
  • High Performance Chained ("Back-to-Back") Transmit and Receive
  • Pin Compatible with the LAN91C92 (in Local Bus Mode) and the LAN91C94 in Both Local Bus and PCMCIA Modes
  • Dynamic Memory Allocation Between Transmit and Receive
  • Flat Memory Structure for Low CPU Overhead
  • Buffered Architecture, Insensitive to Bus Latencies (No Overruns/Underruns)
  • Supports Boot PROM for Diskless Local Bus Applications
  • Driver and Receiver
  • Link Integrity Test
  • Receive Polarity Detection and Correction
  • Integrated AUI Interface
  • 10 Mb/s Manchester Encoding/Decoding and Clock Recovery
  • Automatic Retransmission, Bad Packet Rejection, and Transmit Padding
  • External and Internal Loopback Modes
  • Four Direct Driven LED Outputs for Status/Diagnostics
  • LAN9000 Drivers for Major Network Operating Systems Utilizing Local Bus or PCMCIA Interface
  • Software Drivers Compatible with the LAN91C92, LAN91C94, LAN91C100FD (100 Mb/s), and LAN91C110 (100 Mb/s) Controllers in Local Bus Mode
  • Software Drivers Utilize Full Capability of 32 Bit Microprocessor
