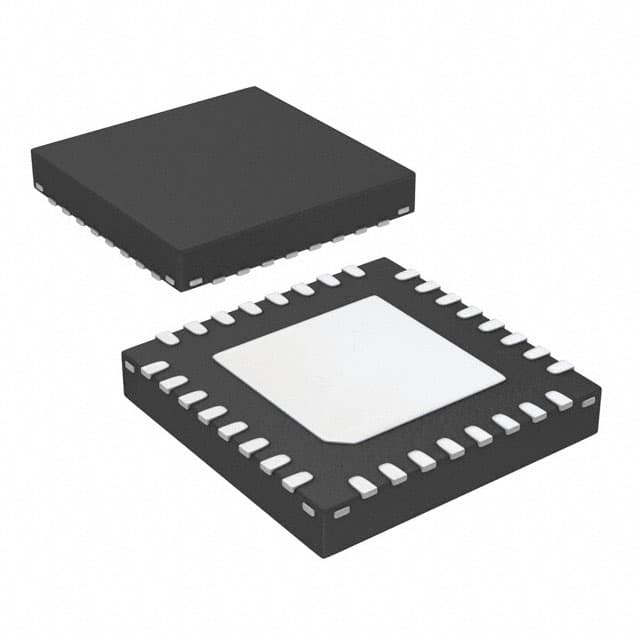

Microchip LAN8740AI-EN-TR

Manufacturer No:

LAN8740AI-EN-TR

Manufacturer:

Microchip

Package:

32-VFQFN Exposed Pad

Description:

Microchip\u0027s LAN8740A are low-power, 10/100 Fast Ethernet PHYs featuring Energy Efficient Ethernet (IEEE 802.3az) and Wake-On-LAN functionality.

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LAN8740AI-EN-TR information

Microchip LAN8740AI-EN-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip LAN8740AI-EN-TR.

Type
Parameter

Automotive
No

DownstreamPorts
1

Energy Efficient Ethernet
Yes

EtherCAT
No

Port Speed
10/100Mbps

Fiber Support
No

HP Auto MDIX
Yes

On-Chip Termination
No

InterfaceUpStream
MII/RMII

Internal Regulator
Yes

LinkMDCableDiag
Yes

MACsec
No

Supply Voltages
0

SyncE
No

Temperature Range Max
85

Temperature Range Min
-40

Digital I/O Voltage
1.8/2.5/3.3

WakeonLAN
Yes

IEEE 1588 v2
No

Download datasheets and manufacturer documentation for Microchip LAN8740AI-EN-TR.

Microchip's LAN8740A/LAN8740Ai are the latest generation of low-power, 10/100 Fast Ethernet PHYs featuring Energy Efficient Ethernet (IEEE 802.3az) and Wake-On-LAN functionality, which provide system sleep modes for improved power savings. The LAN8740A/LAN8740Ai feature deterministic loop back delay, assuring real-time system performance as well as cable diagnostics which reduce network installation costs. These devices are available in both commercial (0°C to 70°C) and industrial (-40°C to 85°C) temperature ranges. The LAN8740A/LAN8740Ai are well-suited for Consumer, Embedded and Industrial applications. Additionally, these devices support auto-negotiation, auto-polarity correction, HP Auto-MDIX† and are compliant with IEEE 802.3 and 802.3u standards.

†HP Auto-MDIX eliminates the need for special "crossover" cables when connecting LAN devices together.

Microchip's complimentary and confidential MicroCHECK design review service, which offers insight from the initial concept to the final PCB layout, is available to customers who are using our products in their projects. You can confidently submit your design materials in a secure and private setting, and our expert engineers will provide individualized feedback to enhance your design. MicroCHECK design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.

Single-Chip Ethernet PHY

Flexible power management architecture

LVCMOS variable I/O voltage range +1.6V to +3.6V

Integrated 1.2V regulator with disable feature

Energy Efficient Ethernet (IEEE 802.3az)

Cable diagnostics

Deterministic latency

MII and RMII supported

Wake-On-LAN

HP Auto-MDIX support

Supports commercial (0°C to 70°C) and industrial (-40°C to 85°C) temperature ranges

32-pin, 5x5mm SQFN, RoHS-compliant packages

Set-top Boxes
DVRs/PVRs
Digital TVs/iPTVs
Printers
IP and Video Phones
Industrial Networks
Embedded/Telecom
Test/Measurement Instrumentation
Wireless Access Points
Power over Ethernet (PoE)

User Guide
