Microchip LAN7801/9JX
Microchip LAN7801/9JX

Microchip LAN7801/9JX

Manufacturer No:

LAN7801/9JX

Manufacturer:

Microchip

Package:

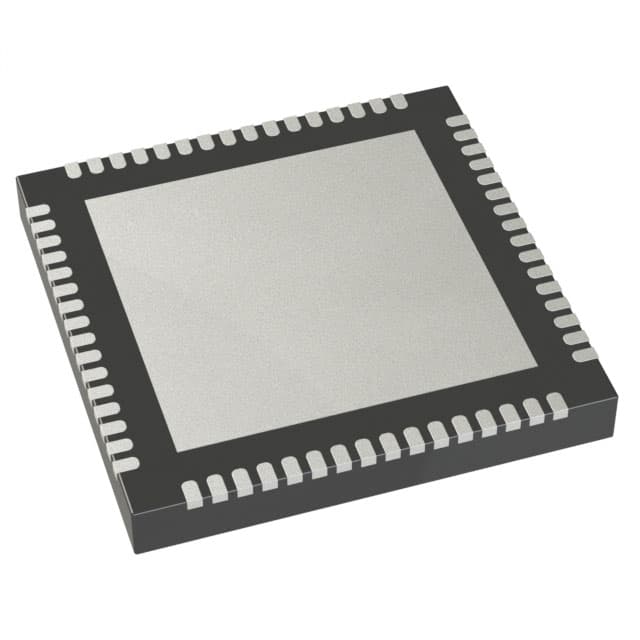

64-VFQFN Exposed Pad

Description:

Microchip\u0027s LAN7801 is a Super Speed USB3 Gen1 to 10/100/1000 Gigabit Ethernet bridge providing an ultra high-performance and cost-effective USB to RGMII solution.

User Guide

Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.

PURCHASE

Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.

MEANS OF PAYMENT

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.

RFQ (REQUEST FOR QUOTATIONS)

Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.

IMPORTANT NOTICE

Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.

Step1：Prepare product

Step1：Prepare product

Step2：Desiccant Protection

Step2：Desiccant Protection

Step3：Vacuum Packaging

Step3：Vacuum Packaging

Step4：Individual Package

Step4：Individual Package

Step5：Anti-collision Filling

Step5：Anti-collision Filling

Step6：Packaging Box

Step6：Packaging Box

SHIPPING COST

1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.

SHIPPING METHOD

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

DELIVERY TIME

1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.

LAN7801/9JX Information

Microchip LAN7801/9JX technical specifications, attributes, parameters and parts with similar specifications to Microchip LAN7801/9JX.

  • Type
  • Parameter
  • DownstreamPorts
  • RGMII
  • Downstream USB Ports
  • 1
  • Port Speed
  • 10/100/1000Mbps
  • InterfaceUpStream
  • USB 3.1 Gen 1
  • Interrupt Pin
  • No
  • Net Detach
  • Yes
  • OpVoltage
  • 3.3
  • Temperature Range Max
  • 105
  • Temperature Range Min
  • -40
  • Type
  • Parameter

Download datasheets and manufacturer documentation for Microchip LAN7801/9JX.

Errata:

Supporting Collateral:

Brochures:

Data Sheets:

Application Notes:

Microchip's LAN7801 is a Super Speed USB3 Gen1 to 10/100/1000 Gigabit Ethernet bridge providing an ultra high-performance and cost-effective USB to RGMII connectivity solution. The LAN7801 contains an integrated USB PHY, Hi-Speed USB 2.0 device controller, SuperSpeed USB3 Gen1 device controller, 10/100/1000 Gigabit Ethernet MAC, Integrated OTP, EEPROM controller. The device implements Control, Interrupt, Bulk-in and Bulk-out USB endpoints. The Ethernet controller supports RGMII for connection of an external Physical interface. USB-based networking provides flexibility for the routing and placement of network connections anywhere in the system. USB-based solutions leverage the existing USB stack for the Ethernet driver. The LAN7801 is also available with a wide range of drivers including Windows®, Mac® and Linux®.

The LAN7801 also offers Microchip’s UniClock™ technologies. UniClock simplifies the clocking scheme and reduces system BOM cost by using a single 25MHz crystal for both USB and Ethernet connectivity. Multiple power management features are provided, including various low-power modes and Magic Packet™, Wake-on-LAN (WoL). MSFT QOAC (Always On Always Connected) is also supported. These wake events can be programmed to initiate a USB remote wakeup and if desired, also generate a hardware PME event. The device is available in commercial (0°C to 70°C), industrial temperature range (-40°C to 85°C), and Automotive Grade 2 (-40°C to 105°C) AEC-Q100 options.


Microchip's complimentary and confidential MicroCHECK design review service, which offers insight from the initial concept to the final PCB layout, is available to customers who are using our products in their projects. You can confidently submit your design materials in a secure and private setting, and our expert engineers will provide individualized feedback to enhance your design. MicroCHECK design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.



  • Single-chip, Super-Speed USB3 Gen1 to 10/100/1000 Ethernet controller
  • Supports RGMII version 1.2 and version 2.0
  • Provides dedicated PME wake-up signal
  • Always On Always Connected (AOAC)
  • Internal OTP memory to remove the need for external EEPROM
  • Integrated core voltage regulator
  • Requires only a single 25MHz crystal
  • Industrial temperature range option available: (-40°C to +85°C, LAN7801-I)
  • Extended temperature range option available: (-40°C to +105°C, LAN7801-V)
  • Automotive AEC-Q100 Grade 2 option available: (-40°C to +105°C, LAN7801-V9JXVOA)
  • 9x9mm, 64-pin SQFN (0.5mm pitch), RoHS-compliant package
      • Applications calling for Physical interfaces other than 802.3:
    • Automotive In-Vehicle Networking
    • Embedded Systems
    • Consumer Electronics Devices
    • Industrial Designs
      Driver & Software
    • A driver supporting this product is already present in the Linux mainline kernel. Specific backports, when available, can be found within the drivers listed here.
    • Android is supported via Linux mainline or, when applicable, specific backports available via the documentation link on this page.
    • Windows drivers are included within Windows 10 and newer. Drivers for older Windows releases may be listed on this product page for download.
    • MacOS drivers are available directly from the Apple App Store. Search for “LAN78xx Driver Application”. Drivers for older MacOS releases may be listed on this product page for download.
