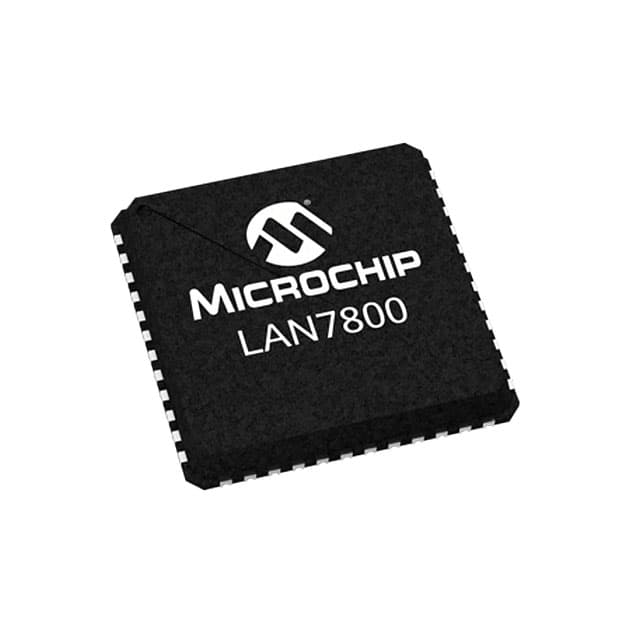

Microchip LAN7800-I/VSX
Microchip LAN7800-I/VSX

Microchip LAN7800-I/VSX

Manufacturer No:

LAN7800-I/VSX

Manufacturer:

Microchip

Package:

48-VFQFN Exposed Pad

Description:

Microchip\u0027s LAN7800 is a Super Speed USB3 Gen1 to 10/100/1000 Gigabit Ethernet bridge providing an ultra high-performance and cost-effective USB to Ethernet solution.

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LAN7800-I/VSX information

Microchip LAN7800-I/VSX technical specifications, attributes, parameters and parts with similar specifications to Microchip LAN7800-I/VSX.

  • Type
  • Parameter
  • DownstreamPorts
  • Ethernet x1, USB 3.1 x1
  • Downstream USB Ports
  • 0
  • Port Speed
  • 10/100/1000Mbps
  • InterfaceUpStream
  • USB 3.1 Gen 1
  • Interrupt Pin
  • No
  • Net Detach
  • Yes
  • OpVoltage
  • 3.3
  • Temperature Range Max
  • 85
  • Temperature Range Min
  • -40

Download datasheets and manufacturer documentation for Microchip LAN7800-I/VSX.

Data Sheets:

Design Checklist:

Application Notes:

Brochures:

Supporting Collateral:

User Guide:

Errata:

Microchip's LAN7800 is a Super Speed USB3 Gen1 to 10/100/1000 Gigabit Ethernet bridge providing an ultra high-performance and cost-effective USB to Ethernet connectivity solution. The LAN7800 contains an integrated 10/100/1000 Gigabit Ethernet PHY, USB PHY, Hi-Speed USB 2.0 device controller, SuperSpeed USB3.2 Gen1 device controller, 10/100/1000 Gigabit Ethernet MAC, Integrated OTP, EEPROM controller. The device supports 10BASE-T, 100BASE-TX and 1000BASE-T Ethernet and implements Control, Interrupt, Bulk-in and Bulk-out USB endpoints. The Ethernet controller supports auto-negotiation, auto-polarity correction, HP Auto-MDIX† support and is compliant with IEEE 802.3/802.3u/802.3ab standards.

USB-based networking provides flexibility for the routing and placement of network connections anywhere in the system. USB-based solutions leverage the existing USB stack for the Ethernet driver. The LAN7800 is also available with a wide range of drivers including Windows®, Mac® and Linux®.

The LAN7800 also offers Microchip’s NetDetach™ and UniClock™ technologies. NetDetach allows for reduced power by enabling the host CPU to enter a low-power state when Ethernet is inactive. UniClock simplifies the clocking scheme and reduces system BOM cost by using a single 25MHz crystal for both USB and Ethernet connectivity. Multiple power management features are provided, including various low-power modes and Magic Packet™, Wake-on-LAN (WoL) and Link Status Change wake events. MSFT QOAC (Always On Always Connected) is also supported. These wake events can be programmed to initiate a USB remote wakeup and if desired, also generate a hardware PME event. The device is available in commercial (0°C to 70°C) and industrial temperature range (-40°C to 85°C) options.

†HP Auto-MDIX eliminates the need for special "crossover" cables when connecting LAN devices together.

Microchip's complimentary and confidential MicroCHECK design review service, which offers insight from the initial concept to the final PCB layout, is available to customers who are using our products in their projects. You can confidently submit your design materials in a secure and private setting, and our expert engineers will provide individualized feedback to enhance your design. MicroCHECK design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.



  • Single-chip, Super-Speed USB3 Gen1 to 10/100/1000 Ethernet controller
  • Fully supports IEEE 802.3/802.3u/802.3ab standards
  • Fully supports transformerless board level links
  • 9K jumbo frames are supported
  • IEEE 802.3az-2010 - Energy Efficient Ethernet (EEE)
  • Implements NetDetach™ technology for reduced system power consumption
  • Provides dedicated PME wake-up signal
  • Always On Always Connected (AOAC)
  • Internal OTP memory to remove the need for external EEPROM
  • Integrated core voltage regulator
  • Requires only a single 25MHz crystal
  • Easy upgrade for USB-based 10/100 Ethernet (LAN9500/9500A) to 10/100/1000 Gigabit Ethernet
  • Industrial temperature range option available (-40°C to +85°C, LAN7800-I)
  • 7x7mm, 48-pin SQFN (0.5mm pitch) , RoHS-compliant package
  • 6x6mm, 48-pin SQFN (0.4mm pitch) , RoHS-compliant package
      • Common Applications
    • Consumer Electronics Devices
    • Netbooks/Smartbooks/MIDs
    • Docking Stations
    • Embedded Systems
    • Digital TVs (DTVs)
    • Cameras
    • Personal Video Recorders (PVRs)
    • Network Printers
    • USB Port Replicators
    • Stand-alone USB to Ethernet Dongles
    • Industrial Platforms
      Driver & Software
    • A driver supporting this product is already present in the Linux mainline kernel. Specific backports, when available, can be found within the drivers listed here.
    • Android is supported via Linux mainline or, when applicable, specific backports available via the documentation link on this page.
    • Windows drivers are included within Windows 10 and newer. Drivers for older Windows releases may be listed on this product page for download.
    • MacOS drivers are available directly from the Apple App Store. Search for “LAN78xx Driver Application”. Drivers for older MacOS releases may be listed on this product page for download.
