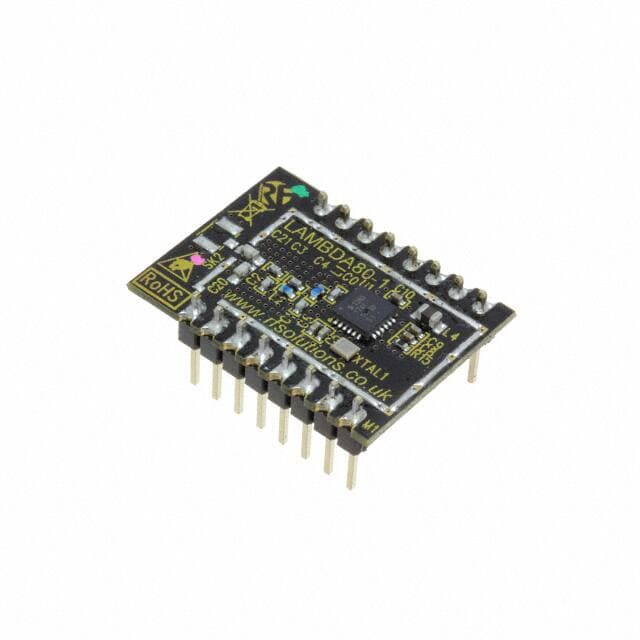

RF Solutions LAMBDA80-24D

Manufacturer No:

LAMBDA80-24D

Manufacturer:

RF Solutions

Package:

16-DIP Module

Description:

2.4GHz~2.5GHz -40°C~85°C 1.8V~3.7V SPI Antenna Not Included, U.FL 2Mbps 12.5dBm LoRa? -132dBm 16-DIP Module

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LAMBDA80-24D information

RF Solutions LAMBDA80-24D technical specifications, attributes, parameters and parts with similar specifications to RF Solutions LAMBDA80-24D.

Type
Parameter

Factory Lead Time
4 Weeks

Mounting Type
Through Hole

Package / Case
16-DIP Module

Operating Temperature
-40°C~85°C

Series
LAMBDA80

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Voltage - Supply
1.8V~3.7V

Frequency
2.4GHz~2.5GHz

Data Rate
2Mbps

Utilized IC / Part
SX1280

Protocol
LoRa?

Power - Output
12.5dBm

Antenna Type
Antenna Not Included, U.FL

Sensitivity
-132dBm

Serial Interfaces
SPI

Current - Receiving
4.8mA

Current - Transmitting
24mA

Modulation
FSK, GFSK

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for RF Solutions LAMBDA80-24D.

Datasheets:

rfsolutions-lambda8024d-datasheets-0350.pdf

LAMBDA80-24D Overview

The RF Transceiver' mounting method adopted is Through Hole.-40°C~85°C should be the operating temperature when Transceiver is operating.This RF Transceiver Module belongs to the LAMBDA80 family.It is possible for the RF Transceiver to supply voltages of 1.8V~3.7V.There is 2.4GHz~2.5GHz frequency set for the RF Transceiver Module.

LAMBDA80-24D Features

Through Hole
1.8V~3.7V volts

LAMBDA80-24D Applications

There are a lot of RF Solutions
LAMBDA80-24D RF Transceiver Modules applications.

Transmit
Receive
Switch
Power management
Internet of Things (IoT)
Secure Payment
Home and Security
Health and Fitness
Industrial and Data Logger
LED Lighting
