LEM LAH 100-P

Manufacturer No:

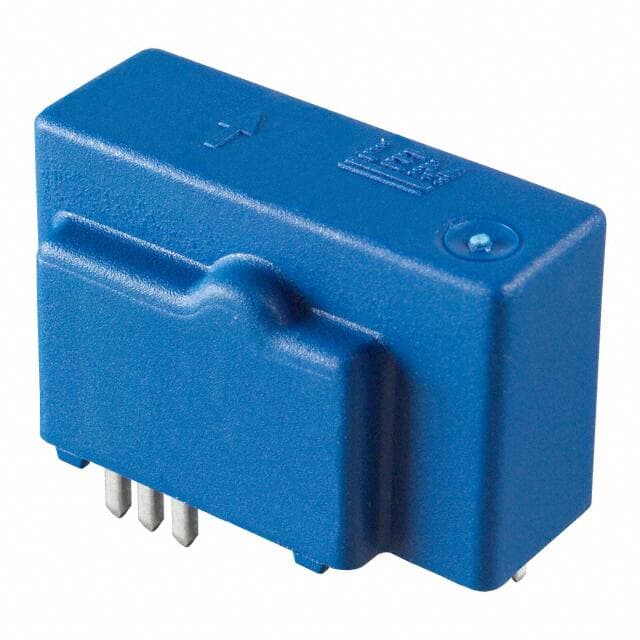

LAH 100-P

Manufacturer:

LEM

Package:

Module

Description:

LAH Series Hall Effect, Closed Loop Sensor 1-Channel Bidirectional -25°C~85°C ±12V~15V DC~200kHz 100A Accuracy-±0.25% Linearity-±0.15%

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LAH 100-P information

LEM LAH 100-P technical specifications, attributes, parameters and parts with similar specifications to LEM LAH 100-P.

Type
Parameter

Factory Lead Time
6 Weeks

Mounting Type
Through Hole

Package / Case
Module

Surface Mount
NO

Operating Temperature
-25°C~85°C

Packaging
Bulk

Series
LAH

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Resistance
45Ohm

Voltage - Supply
±12V~15V

Frequency
DC~200kHz

Output
Ratiometric, Current

Current - Supply (Max)
60mA

Body Length or Diameter
33.3mm

Number of Channels
1

Termination Type
SOLDER

Polarization
Bidirectional

Accuracy
±0.25%

Response Time
0.5?s

Sensor Type
Hall Effect, Closed Loop

Linearity
±0.15%

Sensors/Transducers Type
MAGNETIC FIELD SENSOR,HALL EFFECT

Housing
PLASTIC

Current - Sensing
100A

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for LEM LAH 100-P.

LAH 100-P Overview

In order to ensure safety, the current sensors are packaged in Module packages. In order to prevent damage to the devices, these current sensors are packaged in Bulk. In these current sensors, the maximum output current should be 60mA.

LAH 100-P Features

Moisture Sensitivity Level: 1 (Unlimited)
Operating Temperature: -25°C~85°C
1 Channels
Mounting Type: Through Hole
Sensor Type: Hall Effect, Closed Loop
Supply Voltage: ±12V~15V
Frequency: DC~200kHz
Sensing Current: 100A
Module Package

LAH 100-P Applications

There are a lot of LEM USA Inc.
LAH 100-P Current Sensors applications.

Frequency, Voltage, and Solar Inverters
Electrical drives
General purpose inverters
AC variable speed drives
Static converters for DC motor drives
Battery supplied applications
Uninterruptible Power Supplies(UPS)
Switched Mode Power Supplies(SMPS)
Power supplies for welding applications
AC variabel speed drives and servo motor drives
