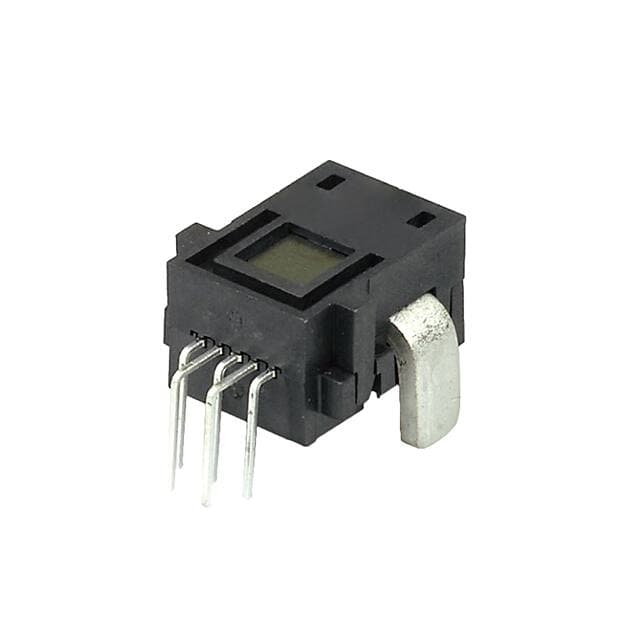

Tamura LA01P170S05

Manufacturer No:

LA01P170S05

Manufacturer:

Tamura

Package:

Module

Description:

LA01P Series Hall Effect, Open Loop Sensor 1-Channel Bidirectional -40°C~90°C 4.5V~5.5V DC~400kHz 170A Linearity-±1%

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LA01P170S05 information

Tamura LA01P170S05 technical specifications, attributes, parameters and parts with similar specifications to Tamura LA01P170S05.

Type
Parameter

Mounting Type
Through Hole

Package / Case
Module

Operating Temperature
-40°C~90°C

Packaging
Bulk

Series
LA01P

Published
2016

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
Not Applicable

Voltage - Supply
4.5V~5.5V

Reach Compliance Code
unknown

Frequency
DC~400kHz

Output
Ratiometric, Voltage

Current - Supply (Max)
10mA

Number of Channels
1

Analog IC - Other Type
ANALOG CIRCUIT

Polarization
Bidirectional

Response Time
1?s

Sensor Type
Hall Effect, Open Loop

Linearity
±1%

Sensitivity
12.5mV/A

For Measuring
AC/DC

Current - Sensing
170A

Download datasheets and manufacturer documentation for Tamura LA01P170S05.

Datasheets:

tamura-la01p170s05-datasheets-1616.pdf

LA01P170S05 Overview

Module packages are used for the safety protection of current sensors. In order to protect these current sensors from damage, they are packaged in the Bulk. They should be capable of supplying a maximum current of 10mA.

LA01P170S05 Features

Moisture Sensitivity Level: Not Applicable
Operating Temperature: -40°C~90°C
1 Channels
Mounting Type: Through Hole
Sensor Type: Hall Effect, Open Loop
Supply Voltage: 4.5V~5.5V
Frequency: DC~400kHz
Sensing Current: 170A
Module Package

LA01P170S05 Applications

There are a lot of Tamura
LA01P170S05 Current Sensors applications.

Industrial Monitoring and Control Systems
Overcurrent Detection
Frequency, Voltage, and Solar Inverters
Electrical drives
General purpose inverters
AC variable speed drives
Static converters for DC motor drives
Battery supplied applications
Uninterruptible Power Supplies(UPS)
Switched Mode Power Supplies(SMPS)
