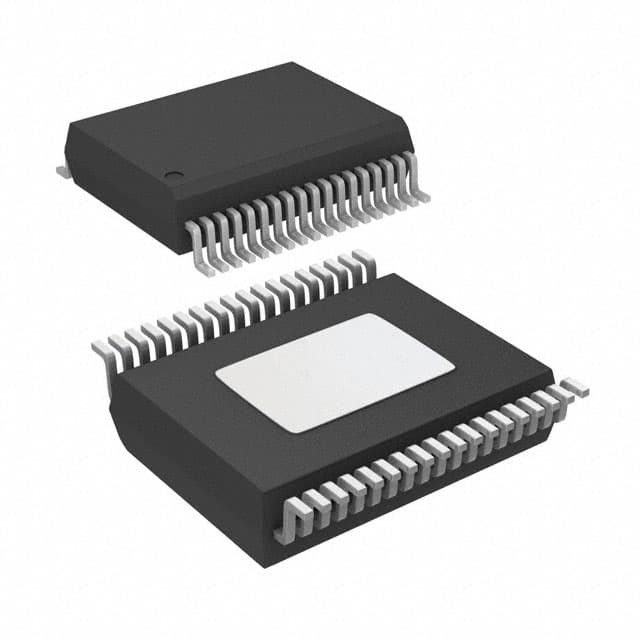

L99MM70XPTR information

ST L99MM70XPTR technical specifications, attributes, parameters and parts with similar specifications to ST L99MM70XPTR.

  • Type
  • Parameter
  • Lifecycle Status
  • ACTIVE (Last Updated: 7 months ago)
  • Factory Lead Time
  • 30 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 36-PowerFSOP (0.295, 7.50mm Width)
  • Number of Pins
  • 36
  • Operating Temperature
  • -40°C~150°C TJ
  • Packaging
  • Tape & Reel (TR)
  • JESD-609 Code
  • e3
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • Number of Terminations
  • 36
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Tin (Sn)
  • Applications
  • LIN Controller
  • HTS Code
  • 8542.31.00.01
  • Technology
  • Power MOSFET
  • Voltage - Supply
  • 5.5V~24.5V
  • Terminal Position
  • DUAL
  • Terminal Form
  • GULL WING
  • Peak Reflow Temperature (Cel)
  • 260
  • Supply Voltage
  • 13.5V
  • Terminal Pitch
  • 0.5mm
  • Time@Peak Reflow Temperature-Max (s)
  • 30
  • Function
  • Driver - Fully Integrated, Control and Power Stage
  • Operating Supply Voltage
  • 18V
  • Interface
  • SPI
  • Nominal Supply Current
  • 100mA
  • Output Configuration
  • Half Bridge (5)
  • uPs/uCs/Peripheral ICs Type
  • MICROPROCESSOR CIRCUIT
  • Current - Output
  • 500mA 3A
  • Logic Function
  • AND
  • Motor Type - AC, DC
  • Brushed DC
  • Length
  • 10.3mm
  • Height Seated (Max)
  • 2.45mm
  • Width
  • 7.5mm
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for ST L99MM70XPTR.

Datasheets:

L99MM70XPTR Overview


There is a Tape & Reel (TR)package included in the design.Parts are packaged in 36-PowerFSOP (0.295, 7.50mm Width)cases.To mount the part by [0], it is recommended that you do so.In this case, it is appropriate for the component connected to LIN Controller.In this case, the device can supply 5.5V~24.5V volts.Regarding the operating temperature, it is in the range of -40°C~150°C TJ°C.A Brushed DCmotor can be classified as a type of motor.A total of 36terminations are available in the part.You should run this amplifier at 13.5V.Surface Mountis its recommended mounting method.Maintain the current output of the part at 500mA 3A volts.The L99Mpart number is used to locate the part.36pins are used in its design.The driver operates on a supply voltage of 18V volts.

L99MM70XPTR Features


Applications : LIN Controller
base on L99M number


L99MM70XPTR Applications


There are a lot of STMicroelectronics
L99MM70XPTR motor drivers applications.


  • Commercial office
  • Hospitality buildings
  • Smart lighting applications
  • Automotive applications
  • Dome
  • Dash
  • Footwell lighting
  • Indicator
  • Telltale lights
  • Infotainment backlighting
