ST L99DZ80EP
Manufacturer No:
L99DZ80EP
Manufacturer:
Package:

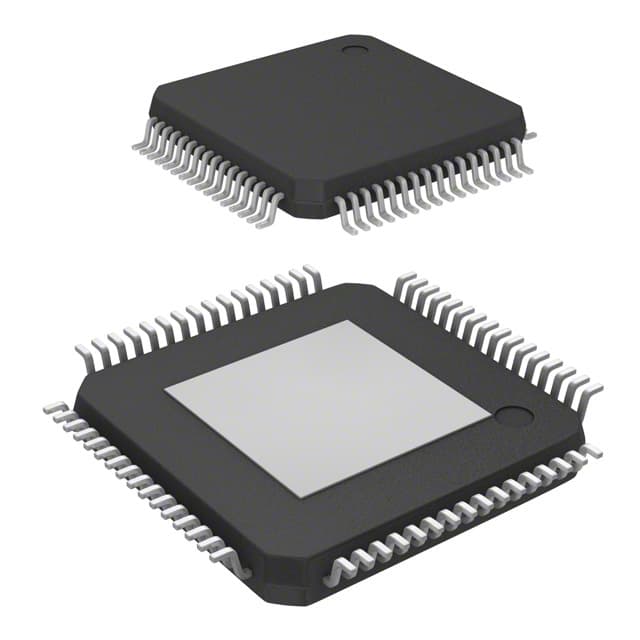

64-TQFP Exposed Pad
Description:
64 Terminations 5V~28V L99D Specialized Power Management ICs 1 Functions
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
L99DZ80EP information
ST L99DZ80EP technical specifications, attributes, parameters and parts with similar specifications to ST L99DZ80EP.
- Type
- Parameter
- Lifecycle Status
- ACTIVE (Last Updated: 8 months ago)
- Factory Lead Time
- 16 Weeks
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- 64-TQFP Exposed Pad
- Operating Temperature
- -40°C~150°C
- Packaging
- Tray
- JESD-609 Code
- e3
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 3 (168 Hours)
- Number of Terminations
- 64
- ECCN Code
- EAR99
- Terminal Finish
- Tin (Sn)
- Applications
- Automotive
- Additional Feature
- OTHER SUPPLY VOLTAGE=5V TO 28V
- Voltage - Supply
- 5V~28V
- Terminal Position
- QUAD
- Terminal Form
- GULL WING
- Peak Reflow Temperature (Cel)
- 260
- Number of Functions
- 1
- Supply Voltage
- 5V
- Terminal Pitch
- 0.5mm
- Time@Peak Reflow Temperature-Max (s)
- 30
- Base Part Number
- L99D
- Operating Supply Current
- 4?A
- Interface IC Type
- BUFFER OR INVERTER BASED PERIPHERAL DRIVER
- Screening Level
- AEC-Q100
- Built-in Protections
- TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE
- Output Current Flow Direction
- SOURCE SINK
- Length
- 10mm
- Height Seated (Max)
- 1.2mm
- Width
- 10mm
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for ST L99DZ80EP.
L99DZ80EP Overview
It is acceptable to ship using the method Tray .It is packaged the power management in 64-TQFP Exposed Pad for ease of transportation.For easy adaptation, Surface Mount is a universal mounting method.It is intended to be used at Automotive as well as for other applications.Ideally, the operating temperature of the power management ic should be set to -40°C~150°C to avoid any malfunctions.For its operation, the power management uses 5V~28V voltage.You can search L99D if you are looking for more power ic's pin-to-pin solutions.The power managment ic has 64 terminals.It is equipped with a Surface Mount that facilitates mounting on a PCB or other board.It is capable of handling a variety of demanding tasks when powered by 5V voltage.The power management ic is powered by a voltage of 4?A volts.When utilizing this integrated power supplies, OTHER SUPPLY VOLTAGE=5V TO 28V can also be discovered.
L99DZ80EP Features
Mainly used in Automotive applications
Operating temperature: -40°C~150°C
OTHER SUPPLY VOLTAGE=5V TO 28V
L99DZ80EP Applications
There are a lot of STMicroelectronics
L99DZ80EPPower Management applications.
- Optical imaging payload
- Desktop PC
- Motherboard
- Standard notebook PC
- Chromebook
- WOA
- Docking station
- Port/cable adapters
- Port/cable dongles
- Wireless routers
