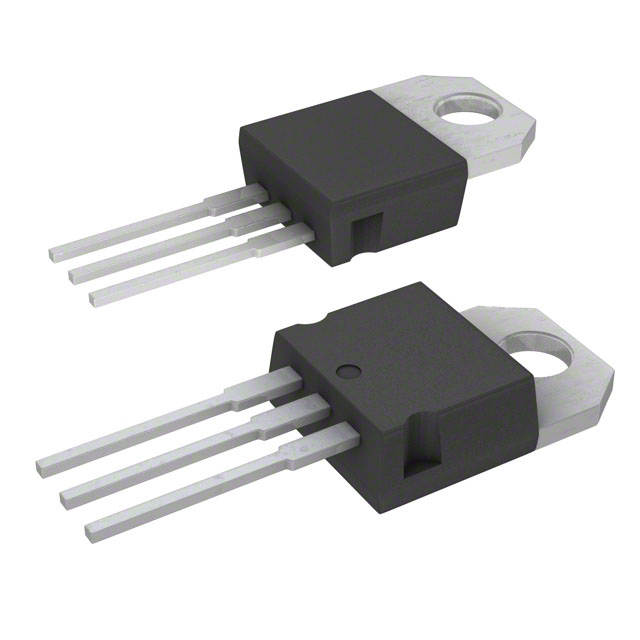

ST L78M15ABV-DG

Manufacturer No:

L78M15ABV-DG

Manufacturer:

Package:

TO-220-3

Description:

Fixed L78M15 PMIC 3 TO-220-3

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

L78M15ABV-DG information

ST L78M15ABV-DG technical specifications, attributes, parameters and parts with similar specifications to ST L78M15ABV-DG.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 7 months ago)

Factory Lead Time
24 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
TO-220-3

Number of Pins
3

Operating Temperature
-40°C~125°C

Packaging
Tube

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
3

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Technology
BIPOLAR

Terminal Position
SINGLE

Number of Functions
1

Base Part Number
L78M15

Pin Count
3

Voltage - Input (Max)
35V

Output Voltage
15V

Output Type
Fixed

Max Output Current
500mA

Output Configuration
Positive

Accuracy
2 %

Output Voltage 1
15V

Number of Regulators
1

Min Input Voltage
17.5V

Protection Features
Over Current, Over Temperature, Short Circuit

Current - Quiescent (Iq)
6mA

PSRR
54dB (120Hz)

Dropout Voltage
2V

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ST L78M15ABV-DG.

Datasheets:

stmicroelectronics-l78m05acdttr-datasheets-2292.pdf

L78M15ABV-DG Overview

A Tube case is used to deliver the Voltage Regulated IC. A TO-220-3 case is used for packaging. As you can see, the IC chip has 3 terminations. Regulator IC chip's output type is Fixed. The electronic part implements 1 regulators in total. In this Regulator IC chip, the operating temperature of Through Hole varies. -40°C~125°C degrees is the operating temperature of the Voltage Regulator IC. There is one output function configured for this voltage regulator IC, and that is Positive. There are 3 pins in total in this voltage regulator IC. The dropout voltage of the regulator IC is 10 volts. 3 pins are on the chip. For your information, this regulator's basic part number is L78M15. To meet operation requirements, the voltage regulator IC has a maximum output current of 500mA. It operates in the 6mA Quiescent Current state.
