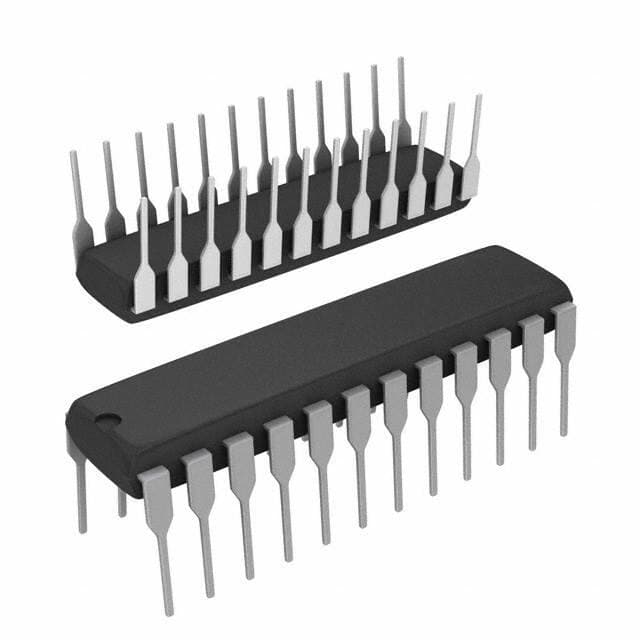

ST L6207N
ST L6207N

ST L6207N

Manufacturer No:

L6207N

Manufacturer:

ST

Package:

24-PowerDIP (0.300, 7.62mm)

Description:

Tube 24-PowerDIP (0.300, 7.62mm) Logic 8V~52V Through Hole -25°C~125°C TJ DC Motors, Stepper Motors, Voltage Regulators Half Bridge (4) Inductive 8V~52V

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

L6207N information

ST L6207N technical specifications, attributes, parameters and parts with similar specifications to ST L6207N.

  • Type
  • Parameter
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • 24-PowerDIP (0.300, 7.62mm)
  • Number of Pins
  • 24
  • Operating Temperature
  • -25°C~125°C TJ
  • Packaging
  • Tube
  • Feature
  • Bootstrap Circuit
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • ECCN Code
  • EAR99
  • Resistance
  • 300mOhm
  • Applications
  • DC Motors, Stepper Motors, Voltage Regulators
  • Technology
  • DMOS
  • Voltage - Supply
  • 8V~52V
  • Base Part Number
  • L6207
  • Pin Count
  • 24
  • Number of Outputs
  • 4
  • Output Voltage
  • 52V
  • Max Output Current
  • 5.6A
  • Operating Supply Voltage
  • 48V
  • Number of Channels
  • 2
  • Interface
  • Logic
  • Nominal Supply Current
  • 10mA
  • Output Configuration
  • Half Bridge (4)
  • Output Current per Channel
  • 2.8A
  • Rise Time
  • 250ns
  • Collector Emitter Voltage (VCEO)
  • 52V
  • Max Collector Current
  • 2.8A
  • Release Time
  • 550 ns
  • Voltage - Load
  • 8V~52V
  • Fault Protection
  • Current Limiting, Over Temperature, UVLO
  • Rds On (Typ)
  • 300m ?
  • Switching Frequency
  • 100kHz
  • Motor Type
  • Brushed
  • Natural Thermal Resistance
  • 14 °C/W
  • Current - Peak Output
  • 5.6A
  • Load Type
  • Inductive
  • Height
  • 3.3mm
  • Length
  • 31.75mm
  • Width
  • 6.6mm
  • Thickness
  • 4.32mm
  • REACH SVHC
  • No SVHC
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for ST L6207N.

Datasheets:

L6207N Overview


Tube is used for packaging.The 24-PowerDIP (0.300, 7.62mm) package includes H bridge to save money.The supply voltage of 8V~52V can improve reliabilbridge drivery.In the way of Through Hole, H bridge circuit is mounted.Motor driver H bridge's operating temperature enables -25°C~125°C TJ to function normally.Among H bridge motor drivers many uses, H bridge motor driver can be found in DC Motors, Stepper Motors, Voltage Regulators as well.H gate is mounted on the PCB using Through Hole.As H bridge ic of its specific characteristics, it also possesses Bootstrap Circuit.In signal interfaces, 24 pins serve as pronged contacts.Based on its base H bridge ic number of L6207, further related H bridge ics can be identified.At a specified ambient temperature, 5.6A is the maximum load current that a power supply can provide.The output reaches a maximum current when H-bridge reaches 5.6A.A current of 2.8A flows through the pins of the output and power supply.A bridge driver's 24 pins work together in order to perform its specific functions.There are 4 outputs on this Hbridge.Keeping the operating supply voltage at 48V ensures high efficiency.This Hbridge releases a voltage of 52V.

L6207N Features


Available in 24-PowerDIP (0.300, 7.62mm) Package / Case
Operating Temperature at the range of Through Hole
Interface IC Type : L6207
Subcategory: 5.6A
Number of Receivers: 48V


L6207N Applications


There are a lot of STMicroelectronics
L6207N Full Bridge Drivers, Half-Bridge Drivers applications.


  • Industrial Automation
  • Home Appliances
  • High-Performance Gaming Motherboards
  • Compact Blade Servers
  • DC-DC Converters
  • Desktop Computers
  • V-Core
  • Non-V-Core
  • Workstations
  • High-Current DC-DC Point-of-Load Converters
