Tamura L03S500D15
Manufacturer No:
L03S500D15
Manufacturer:
Package:
Module
Description:
Hall Effect, Open Loop Sensor 1-Channel Bidirectional -20°C~80°C ±15V DC~50kHz Linearity-±1%
Quantity:
User Guide
Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.

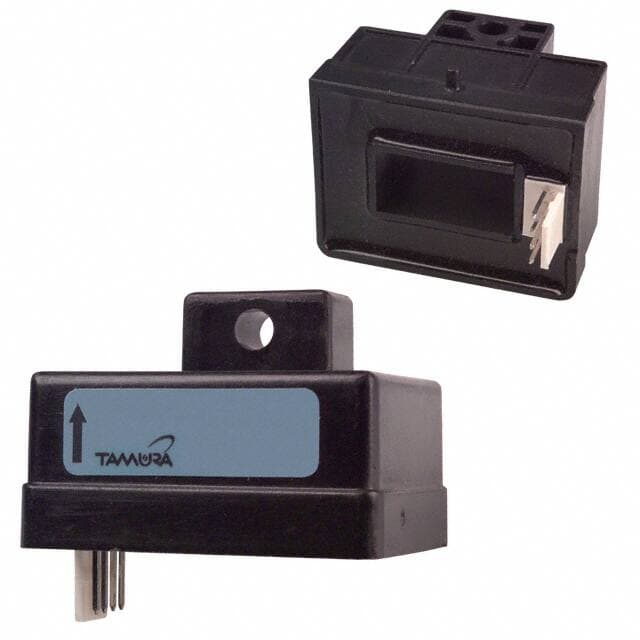

L03S500D15 Information
Tamura L03S500D15 technical specifications, attributes, parameters and parts with similar specifications to Tamura L03S500D15.
- Type
- Parameter
- Factory Lead Time
- 22 Weeks
- Mount
- Screw, Through Hole
- Mounting Type
- Through Hole
- Package / Case
- Module
- Number of Pins
- 4
- Operating Temperature
- -20°C~80°C
- Packaging
- Bulk
- Published
- 2003
- JESD-609 Code
- e3
- Part Status
- Active
- Type
- Parameter
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 4
- Terminal Finish
- Tin (Sn)
- Subcategory
- Other Sensors/Transducers
- Voltage - Supply
- ±15V
- Reach Compliance Code
- unknown
- Current Rating
- 500A
- Frequency
- DC~50kHz
- Output
- Ratiometric, Voltage
- Approval Agency
- UL
Download datasheets and manufacturer documentation for Tamura L03S500D15.
Datasheets:
L03S500D15 Overview
Current sensors are housed in Module packages to ensure their safety. It is designed to protect the current sensors from damage by packaging them in the Bulk. In order for current sensors to be effective, their current supply should not exceed 12mA. In the current sensors, the terminations are 4. Current sensors are designed to detect 500A current. The current sensor has 4 pins. As they operate, the current sensors may provide 15V voltage.
L03S500D15 Features
Moisture Sensitivity Level: 1 (Unlimited)
Operating Temperature: -20°C~80°C
1 Channels
Mounting Type: Through Hole
Sensor Type: Hall Effect, Open Loop
Supply Voltage: ±15V
Frequency: DC~50kHz
Module Package
L03S500D15 Applications
There are a lot of Tamura
L03S500D15 Current Sensors applications.
- Leakage Current Sensors
- Industrial Monitoring and Control Systems
- Overcurrent Detection
- Frequency, Voltage, and Solar Inverters
- Electrical drives
- General purpose inverters
- AC variable speed drives
- Static converters for DC motor drives
- Battery supplied applications
- Uninterruptible Power Supplies(UPS)
