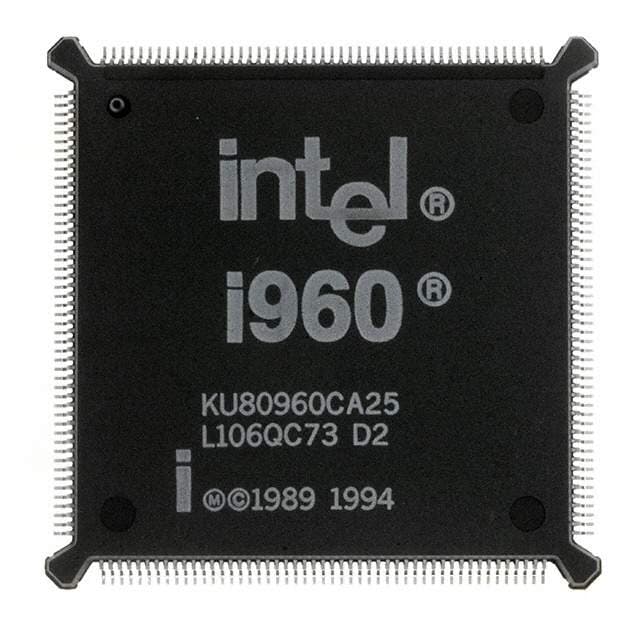

INTEL KU80960CA25
INTEL KU80960CA25

INTEL KU80960CA25

Manufacturer No:

KU80960CA25

Manufacturer:

INTEL

Package:

PQFP

Description:

0.635mm 5V 32-bit Microprocessor 196-Pin 25MHz 5V PQFP

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

KU80960CA25 information

INTEL KU80960CA25 technical specifications, attributes, parameters and parts with similar specifications to INTEL KU80960CA25.

  • Type
  • Parameter
  • Mount
  • Surface Mount
  • Package / Case
  • PQFP
  • Number of Pins
  • 196
  • Packaging
  • Bulk
  • Published
  • 1994
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 196
  • ECCN Code
  • 3A001.A.3
  • Max Operating Temperature
  • 100°C
  • Min Operating Temperature
  • 0°C
  • HTS Code
  • 8542.31.00.01
  • Subcategory
  • Microprocessors
  • Technology
  • MOS
  • Terminal Position
  • QUAD
  • Terminal Form
  • GULL WING
  • Peak Reflow Temperature (Cel)
  • 225
  • Supply Voltage
  • 5V
  • Terminal Pitch
  • 0.635mm
  • Frequency
  • 25MHz
  • Operating Supply Voltage
  • 5V
  • Power Supplies
  • 5V
  • Temperature Grade
  • OTHER
  • Voltage
  • 5V
  • Max Supply Voltage
  • 5.5V
  • RAM Size
  • 1kB
  • uPs/uCs/Peripheral ICs Type
  • MICROPROCESSOR, RISC
  • Supply Current-Max
  • 750mA
  • Bit Size
  • 32
  • Frequency (Max)
  • 25MHz
  • Access Time
  • 25 ?s
  • Address Bus Width
  • 32
  • Boundary Scan
  • NO
  • Low Power Mode
  • NO
  • External Data Bus Width
  • 32
  • Format
  • FIXED POINT
  • Integrated Cache
  • NO
  • RAM (words)
  • 1000
  • Number of External Interrupts
  • 9
  • On Chip Data RAM Width
  • 8
  • Number of DMA Channels
  • 4
  • Length
  • 34.29mm
  • Height Seated (Max)
  • 4.57mm
  • Width
  • 34.29mm
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for INTEL KU80960CA25.

ConflictMineralStatement:

Datasheets:

KU80960CA25 Overview


Shipping overseas is convenient since the embedded microprocessor is packed in PQFP. In order to provide high reliability, advanced packaging method Bulk is used. In terms of uPs and uCs as well as peripheral ICs, this is a MICROPROCESSOR, RISC. In total, there are 196 terminations. When the voltage supply is 5V, the cpu microprocessor should be powered on and run. In terms of architecture, it is a 32-Bit system. There is 25MHz frequency set for the CPU. You can find information about the functions of 196 pins in the datasheets. Microprocessors is a typical embedded microprocessor. 32 is the width of the external data bus on this CPU. Using the microprocessor in an environment above 100°C is not recommended. Many applications make use of this CPU, which has Surface Mount mounted. We expect the CPU's top frequency to be 25MHz. There is a 5V function for the micro processor. According to its datasheet, this micro processor requires 5V power supplies. A 5V core voltage is present on the CPU. Random-Access Memory (RAM) is designed with an amount of 1kB KB. CPU voltage can't be higher than 750mA. It is generally recommended that users do not supply their embedded microprocessors with voltages higher than 5.5V. There should be 4.5V voltage applied to the CPU microprocessor below 4.5V. Hardware interrupts have been handled with 9 external interrupt terminations. For the DMA (Direct Memory Access) process, 4 channels are used.

KU80960CA25 Features


32-Bit Structure
1kB RAM


KU80960CA25 Applications


There are a lot of Intel
KU80960CA25 Microprocessor applications.


  • Consumer electronics products
  • Toys
  • Robots
  • Radio
  • Television
  • Heater/Fan
  • Calculator
  • Kindle
  • Christmas lights
  • 3D printers
