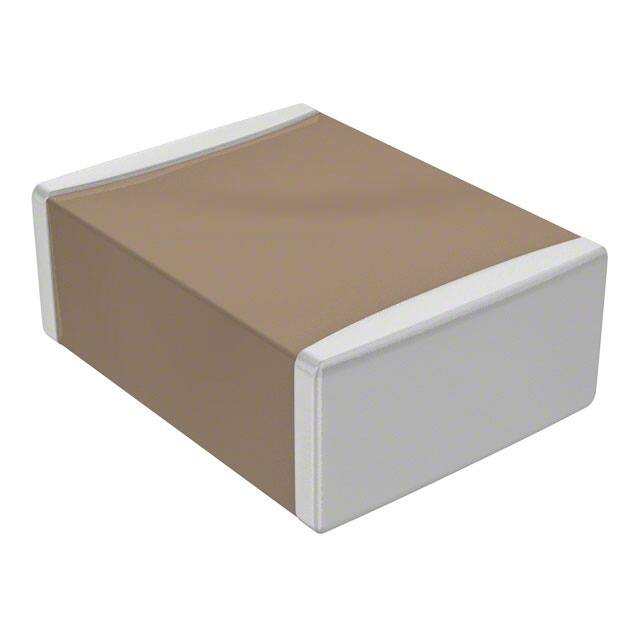

United Chemi-Con KTS500B226M76N0T00

Manufacturer No:

KTS500B226M76N0T00

Manufacturer:

United Chemi-Con

Package:

3025 (7563 Metric)

Description:

NTS 22?F 50V Ceramic Capacitor ±20% X7R 0.295Lx0.248W 7.50mmx6.30mm -55°C~125°C Surface Mount, MLCC 3025 (7563 Metric)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

KTS500B226M76N0T00 information

United Chemi-Con KTS500B226M76N0T00 technical specifications, attributes, parameters and parts with similar specifications to United Chemi-Con KTS500B226M76N0T00.

Type
Parameter

Factory Lead Time
16 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount, MLCC

Package / Case
3025 (7563 Metric)

Operating Temperature
-55°C~125°C

Packaging
Tape & Reel (TR)

Series
NTS

Size / Dimension
0.295Lx0.248W 7.50mmx6.30mm

Tolerance
±20%

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Temperature Coefficient
X7R

Max Operating Temperature
125°C

Min Operating Temperature
-55°C

Applications
General Purpose

Voltage - Rated
50V

Capacitance
22?F

Case Code (Metric)
7563

Case Code (Imperial)
3025

Length
7.493mm

Width
6.2992mm

Thickness (Max)
0.157 4.00mm

Thickness
3.9878mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for United Chemi-Con KTS500B226M76N0T00.

Datasheets:

unitedchemicon-kts500b156m55n0t00-datasheets-6965.pdf

KTS500B226M76N0T00 Overview

Ceramic capacitor is 0.295Lx0.248W 7.50mmx6.30mm in size/dimension for this device.An operating temperature greater than -55°C is necessary for stable operation.Generally, the temperature coefficient of resistance is defined as the change in electrical resistance of a substance with respect to temperature changes, and it is equal to X7R.

KTS500B226M76N0T00 Features

a size/dimension of 0.295Lx0.248W 7.50mmx6.30mm
with X7R being the highest temperature coefficient

KTS500B226M76N0T00 Applications

There are a lot of United Chemi-Con
KTS500B226M76N0T00 applications of ceramic capacitors.

General electronic equipment
Mobile devices
Servers, PCs, tablets
Power supply circuit
