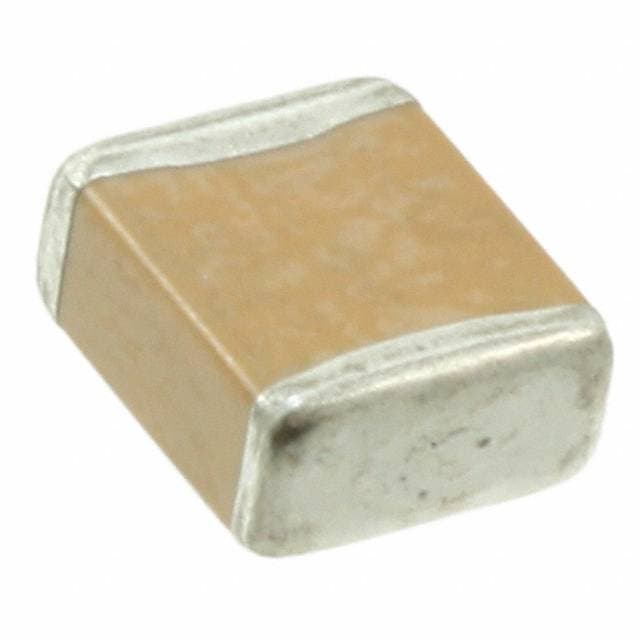

United Chemi-Con KTS101B685K55F0T00

Manufacturer No:

KTS101B685K55F0T00

Manufacturer:

United Chemi-Con

Package:

2220 (5750 Metric)

Description:

NTS 6.8?F Ceramic Capacitor ±10% X7R 0.224Lx0.197W 5.70mmx5.00mm -55°C~125°C Surface Mount, MLCC 2220 (5750 Metric)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

KTS101B685K55F0T00 information

United Chemi-Con KTS101B685K55F0T00 technical specifications, attributes, parameters and parts with similar specifications to United Chemi-Con KTS101B685K55F0T00.

Type
Parameter

Factory Lead Time
16 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount, MLCC

Package / Case
2220 (5750 Metric)

Operating Temperature
-55°C~125°C

Packaging
Tape & Reel (TR)

Series
NTS

Published
2008

Size / Dimension
0.224Lx0.197W 5.70mmx5.00mm

Tolerance
±10%

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Temperature Coefficient
X7R

Composition
Ceramic

Applications
General Purpose

Capacitance
6.8?F

Voltage - Rated DC
100V

Reach Compliance Code
unknown

Case Code (Metric)
5750

Case Code (Imperial)
2220

Thickness (Max)
0.110 2.80mm

Thickness
2.794mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for United Chemi-Con KTS101B685K55F0T00.

Datasheets:

unitedchemicon-kts500b156m55n0t00-datasheets-6965.pdf

KTS101B685K55F0T00 Overview

Using this device, the program has a size/dimension of 0.224Lx0.197W 5.70mmx5.00mm.This coefficient equals X7R indicates that a substance's electrical resistance changes with temperature per degree change.The voltage - Rated DC of 100V allows it to function.

KTS101B685K55F0T00 Features

a size/dimension of 0.224Lx0.197W 5.70mmx5.00mm
with X7R being the highest temperature coefficient
with the voltage - Rated DC of 100V

KTS101B685K55F0T00 Applications

There are a lot of United Chemi-Con
KTS101B685K55F0T00 applications of ceramic capacitors.

General electronic equipment
Mobile devices
Servers, PCs, tablets
Power supply circuit
