KSZ9893RNXC Information

Microchip KSZ9893RNXC technical specifications, attributes, parameters and parts with similar specifications to Microchip KSZ9893RNXC.

Type
Parameter

Copper Support
10/100/1000 (2)

DownstreamPorts
3

Port Speed
10/100/1000Mbps

Fiber Support
No

Flow Control
Yes

IEEE 1588
No

IPV6
Yes

InterfaceUpStream
MII/RMII/RGMII

InternalLDO
No

LinkMDCableDiag
Yes

Type
Parameter

Managed
Yes

OpVoltage
3.3

Rapid Spanning Tree Protocol
Yes

Rate Limiting
Yes

Smart Powe Adjust
Yes

Static MAC Address
Yes

Supply Voltages
3.3

Temperature Range Max
85

Temperature Range Min
-40

Digital I/O Voltage
1.8/2.5/3.3

Download datasheets and manufacturer documentation for Microchip KSZ9893RNXC.

The KSZ9893 is a fully integrated layer 2, managed, three-port gigabit Ethernet switch with numerous advanced features. Two of the three ports incorporate 10/100/1000 Mbps PHYs. The other port has interfaces that can be configured as RGMII, MII or RMII. This port may connect directly to a host processor or to an external PHY.

Full register access is available by SPI or I²C interfaces, and by optional in-band management via any of the data ports. PHY register access is provided by a MIIM interface.

Security features include support for IEEE 802.1X port-based authentication and Access Control List (ACL) filtering.

An assortment of power-management features including Energy-Efficient Ethernet (EEE) have been designed in to satisfy energy efficient environments.

Looking for a Linux^® Host Processor? Try the SAMA5D3

Microchip's complimentary and confidential MicroCHECK design review service, which offers insight from the initial concept to the final PCB layout, is available to customers who are using our products in their projects. You can confidently submit your design materials in a secure and private setting, and our expert engineers will provide individualized feedback to enhance your design. MicroCHECK design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.

Non-blocking wire-speed Ethernet switching fabric

Full-featured forwarding and filtering control, including Access Control List (ACL) filtering

Full VLAN and QoS support

Two ports with integrated 10/100/1000BASE-T PHYs

One port with 10/100/1000 Ethernet MAC and configurable RGMII/MII/RMII interface

IEEE 802.1X port-based authentication support

EtherGreen™ power management features, including low power standby and IEEE 802.3az

Flexible management interface options: SPI, I2C, MIIM, and in-band management via any port

Commercial/Industrial temperature range support

64-pin VQFN (8 x 8mm) lead-free package

Switch Management Capabilities

10/100/1000Mbps Ethernet switch basic functions: frame buffer management, address look-up table, queue management, MIB counters

Non-blocking store-and-forward switch fabric assures fast packet delivery by utilizing 4096 entry forwarding table with 128kByte frame buffer

Jumbo packet support up to 9000 bytes

Port mirroring/monitoring/sniffing: ingress and/or egress traffic to any port

MIB counters for fully-compliant statistics gathering 34 counters per port

Tail tagging mode (one byte added before FCS) support at host port to inform the processor which ingress port receives the packet and its priority

Loopback modes for remote failure diagnostics

Multiple spanning tree protocol (MSTP) support

Rapid spanning tree protocol (RSTP) support for topology management and ring/linear recovery

Advanced Switch Capabilities

IEEE 802.1Q VLAN support for 128 active VLAN groups and the full range of 4096 VLAN IDs

IEEE 802.1p/Q tag insertion/removal on per port basis

VLAN ID on per port or VLAN basis

IEEE 802.3x full-duplex flow control and half-duplex back pressure collision control

IEEE 802.1X (Port-Based Network Access Control)

IGMP v1/v2/v3 snooping for multicast packet filtering

IPv6 multicast listener discovery (MLD) snooping

IPv4/IPv6 QoS support, QoS/CoS packet prioritization

802.1p QoS packet classification with 4 priority queues

Programmable rate limiting at ingress/egress ports

Broadcast storm protection

Four priority queues with dynamic packet mapping for IEEE 802.1p, IPv4 DIFFSERV, IPv6 Traffic Class

MAC filtering function to filter or forward unknown unicast, multicast and VLAN packets

Self-address filtering for implementing ring topologies

Comprehensive Configuration Registers Access

High-speed 4-wire SPI (up to 50MHz), I2C interfaces provide access to all internal registers

MII Management (MIIM, MDC/MDIO 2-wire) Interface provides access to all PHY registers

I/O pin strapping facility to set certain register bits from I/O pins at reset time

In-band management via any of the three ports

On-the-fly configurable control registers

Power Management

IEEE 802.3az Energy Efficient Ethernet (EEE)

Energy detect power-down mode on cable disconnect

Dynamic clock tree control

Unused ports can be individually powered down

Full-chip software power-down

Wake-on-LAN (WoL) standby power mode

KSZ9893RNXC Relevant information

KSZ9893RNXC FAQ

Can I request a quote for KSZ9893RNXC?

KSZ9893RNXC from Microchip is ready for RFQ submission. Send your target quantity and requirements, and AIChipLink will check current availability, lead time, and quantity-based pricing.

Why is pricing not shown as a fixed value for KSZ9893RNXC?

The final price for KSZ9893RNXC depends on requested quantity, supply conditions, date code, package option, and destination. An RFQ lets us return the current market quote for your order.

Which specifications should I review for KSZ9893RNXC?

KSZ9893RNXC is a Microchip Ethernet Switches part. Key details include Rapid Spanning Tree Protocol: Yes and Temperature Range Max: 85; contact us if you need the specifications verified before sourcing.

When will I receive a quotation for KSZ9893RNXC?

After you submit the RFQ for KSZ9893RNXC, our sales team typically replies within 24 hours with availability, unit pricing, lead time, shipping choices, and possible substitutes.

What is the expected shipping time for KSZ9893RNXC?

Once stock for KSZ9893RNXC is confirmed, available inventory can generally ship within 1–2 business days. The final schedule depends on quantity, warehouse source, and delivery address.

Can AIChipLink help find alternatives to KSZ9893RNXC?

Yes. If KSZ9893RNXC is unavailable, end-of-life, or outside your schedule, we can review comparable Microchip Ethernet Switches parts and compatible replacement options.

Microchip KSZ9893RNXC

Manufacturer No:

KSZ9893RNXC

Manufacturer:

Microchip

Package:

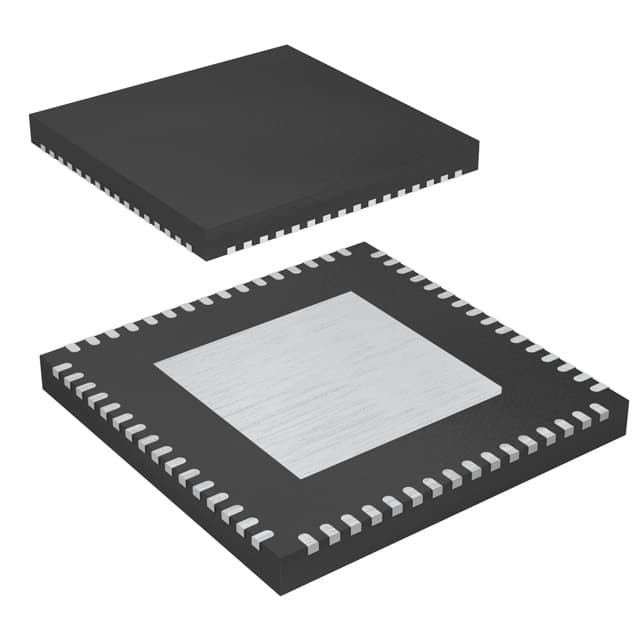

64-VFQFN Exposed Pad

Description:

The KSZ9893 is a fully integrated layer 2, managed, three-port gigabit Ethernet switch with RGMII/MII/RMII and numerous advanced features.
