Microchip KSZ8995FQI

The KSZ8995MQX/RQX/FQX/ML is a highly-integrated, Layer 2 managed, five-port switch with numerous features designed to reduce system cost.

Intended for cost sensitive 10/100Mbps five-port switch systems with low power consumption, on-chip termination, and internal core power controllers, it supports high-performance memory bandwidth and shared memory-based switch fabric with non-blocking configuration. Its extensive feature set includes power management, programmable rate limit and priority ratio, tag/port-based VLAN, packets filtering, four queue QoS prioritization, management interfaces, and MIB counters.

The KSZ8995 family provides multiple CPU data interfaces to effectively address both current and emerging fast Ethernet applications when port 5 is configured to separate MAC5 with SW5-MII/RMII and PHY5 with P5-MII/RMII interfaces.

The KSZ8995 family offers three configurations, providing the flexibility to meet different requirements:

• KSZ8995MQX/ML has 5 10/100Base-T/TX transceivers, 1 SW5-MII and 1 P5-MII interface

• KSZ8895RQX has 5 10/100Base-T/TX transceivers, 1 SW5-RMII and 1 P5-RMII interface

• KSZ8895FQX has 4 10/100Base-T/TX transceivers on Ports 1, 2, 3 and 5 (port 3 can be set to the fiber mode). 1 100Base-FX transceivers on Port 4. 1 SW5-MII and 1 P5-MII interface

All registers of MACs and PHYs units can be managed by the SPI or the SMI interface. MIIM registers can be accessed through the MDC/MDIO interface.

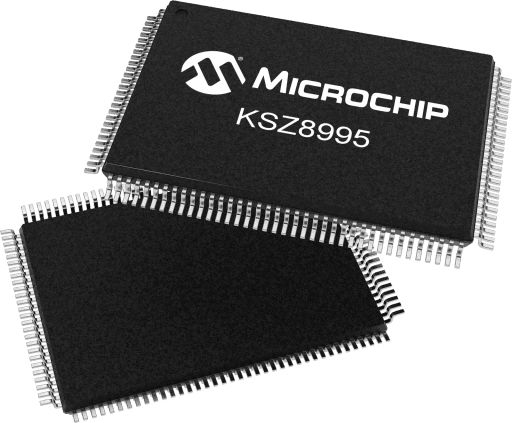

EEPROM can set all control registers for the unmanaged mode. KSZ8995MQX/RQX/FQX are 128-pin PQFP package. KSZ8995ML is 128-pin LQFP package.

Microchip's complimentary and confidential MicroCHECK design review service, which offers insight from the initial concept to the final PCB layout, is available to customers who are using our products in their projects. You can confidently submit your design materials in a secure and private setting, and our expert engineers will provide individualized feedback to enhance your design. MicroCHECK design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.

Consider KSZ8895 (pin-compatible) or KSZ8795 as a replacement
• Advanced Switch Features
• IEEE 802.1q VLAN support for up to 128 active VLAN groups (full-range 4096 of VLAN IDs)
• Static MAC table supports up to 32 entries
• VLAN ID tag/untag options, per port basis
• Comprehensive Configuration Register Access
• Serial management interface (MDC/MDIO) to all PHYs registers and SMI interface (MDC/MDIO) to all registers
• High-speed SPI (up to 25MHz) and I2C master Interface to all internal registers
• I/0 pins strapping and EEPROM to program selective registers in unmanaged switch mode
• QoS/CoS Packet Prioritization Support
• Per port, 802.1p and DiffServ-based
• 1/2/4-queue QoS prioritization selection
• Programmable weighted fair queuing for ratio control
• Integrated 5-Port 10/100 Ethernet Switch
• 5 integrated MACs and PHYs that are fully compliant with the IEEE 802.3u standard
• Non-blocking switch fabric assures fast packet delivery by utilizing a 1K MAC address lookup table and a store-and-forward architecture
• PHYs designed with patented enhanced mixed-signal technology
• Switch Monitoring Features
• Port mirroring/monitoring/sniffing: ingress and/or egress traffic to any port or MII/RMII
• MIB counters for fully-compliant statistics gathering 34 MIB counters per port
• Loop-back support for MAC, PHY, and remote diagnostic of failure
• Low-Power Dissipation
• Full-chip software power-down and per port software power down
• Energy-detect mode support <100mW full-chip power consumption when all ports have no activity
