Microchip KSZ8862-32MQL-FX
Microchip KSZ8862-32MQL-FX

Microchip KSZ8862-32MQL-FX

Manufacturer No:

KSZ8862-32MQL-FX

Manufacturer:

Microchip

Package:

128-BFQFP

Description:

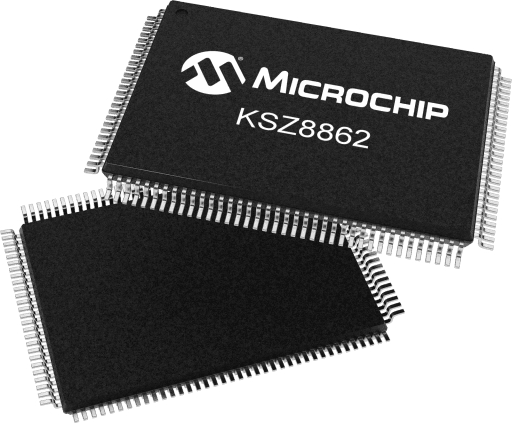

The Microchip KSZ8862 is a cost-sensitive, power efficient and highly integrated two-port 10/100 managed ethernet switch with non-PCI interface and fiber support.

User Guide

Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.

PURCHASE

Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.

MEANS OF PAYMENT

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.

RFQ (REQUEST FOR QUOTATIONS)

Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.

IMPORTANT NOTICE

Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.

Step1：Prepare product

Step1：Prepare product

Step2：Desiccant Protection

Step2：Desiccant Protection

Step3：Vacuum Packaging

Step3：Vacuum Packaging

Step4：Individual Package

Step4：Individual Package

Step5：Anti-collision Filling

Step5：Anti-collision Filling

Step6：Packaging Box

Step6：Packaging Box

SHIPPING COST

1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.

SHIPPING METHOD

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

DELIVERY TIME

1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.

KSZ8862-32MQL-FX Information

Microchip KSZ8862-32MQL-FX technical specifications, attributes, parameters and parts with similar specifications to Microchip KSZ8862-32MQL-FX.

  • Type
  • Parameter
  • Copper Support
  • 10/100 (2)
  • DownstreamPorts
  • 2
  • Port Speed
  • 10/100Mbps
  • Fiber Support
  • 100FX,FL,SX
  • Flow Control
  • Yes
  • IEEE 1588
  • No
  • IPV6
  • Yes
  • InterfaceUpStream
  • Host Bus
  • InternalLDO
  • Yes
  • LinkMDCableDiag
  • Yes
  • Type
  • Parameter
  • Managed
  • Yes
  • OpVoltage
  • 3.3
  • Rapid Spanning Tree Protocol
  • No
  • Rate Limiting
  • Yes
  • Static MAC Address
  • Yes
  • Supply Voltages
  • 3.3
  • Temperature Range Max
  • 70
  • Temperature Range Min
  • 0
  • Digital I/O Voltage
  • 3.3
  • WakeonLAN
  • No

Download datasheets and manufacturer documentation for Microchip KSZ8862-32MQL-FX.

Brochures:

Application Notes:

Data Sheets:

The KSZ8862M is 2-port switch with fiber support, available in 8-/16-bit and 32-bit bus designs.

The KSZ8862M is an industry first, fully managed, 2-port switch. It is based on a proven, 4th generation, integrated Layer-2 switch, compliant with IEEE 802.3u standards. For industrial applications, the KSZ8862M can run in half-duplex mode regardless of the application. In fiber mode, port 1 can be configurable to either 100BASE-FX or 100BASE-SX/10BASE-FL. The LED driver and post amplifier are also included for 10Base-FL and 100Base-SX applications. In copper mode, port 2 supports 10/100BASE-T/TX with HP Auto MDI/MDI-X for reliable detection of and correction for straight-through and crossover cables.

Microchip's proprietary LinkMD® Time Domain Reflectometry (TDR) based function is also available for determining the cable length, as well as cable diagnostics for identifying faulty cabling. The KSZ8862M offers an extensive feature set that includes tag/port-based VLAN, quality of service (QoS) priority management, management information base (MIB) counters, and CPU control/data interfaces to effectively address Fast Ethernet applications.

The KSZ8862M contains:

• Two 10/100 transceivers with patented, mixed-signal, low-power technology

• Two media access control (MAC) units

• Direct memory access (DMA) channel

• High-speed, non-blocking, switch fabric

• Dedicated 1K entry forwarding table

• On-chip frame buffer memory

When using the provided KSZ8462 software driver, please exclude the 1588 PTP code at compile time.


Microchip's complimentary and confidential MicroCHECK design review service, which offers insight from the initial concept to the final PCB layout, is available to customers who are using our products in their projects. You can confidently submit your design materials in a secure and private setting, and our expert engineers will provide individualized feedback to enhance your design. MicroCHECK design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.



  • Non-blocking switch fabric assures fast packet delivery by utilizing a 1K entry forwarding table and a store-and-forward architecture
  • Fully compliant with IEEE 802.3u standards
  • Full-duplex IEEE 802.3x flow control (Pause) with force mode option
  • Half-duplex back pressure flow control
  • IEEE 802.1Q VLAN support for up to 16 groups (full range of VLAN IDs)
  • VLAN ID tag/untag options, on a per port basis
  • IEEE 802.1p/Q tag insertion or removal on a per port basis (egress)
  • Programmable rate limiting at the ingress and egress ports
  • Broadcast storm protection
  • IEEE 802.1d spanning tree protocol support
  • MAC filtering function to filter or forward unknown unicast packets
  • Direct forwarding mode enabling the processor to identify the ingress port and to specify the egress port
  • Internet Group Management Protocol (IGMP) v1/v2 snooping support for multicast packet filtering
  • IPV6 Multicast Listener Discovery (MLD) snooping support
  • Integrated LED driver and post amplifier for 10BASE-FL and 100BASE-SX optical modules
  • 100BASE-FX/SX and 10BASE-FL fiber support on port 1
  • Port mirroring/monitoring/sniffing: ingress and/or egress traffic to any port
  • MIB counters for fully compliant statistics gathering - 34 MIB counters per port
  • Loopback modes for remote failure diagnostics
  • Control registers configurable on-the-fly (port-priority, 802.1p/d/Q)
  • Per port, 802.1p and DiffServ-based
  • Remapping of 802.1p priority field on a per port basis
  • Full-chip hardware power-down (register configuration not saved) allows low power dissipation
  • Per port-based, software power-save on PHY (idle link detection, register configuration preserved)
  • Single power supply: 3.3V
  • Commercial Temperature Range: 0°C to +70°C
  • Industrial Temperature Range: –40°C to +85°C
  • Available in 128-pin PQFP
  • Available in -16 version for 8/16-bit bus support and -32 version for 32-bit bus support (see Ordering Information)
