Microchip KSZ8842-16MVLI
Microchip KSZ8842-16MVLI

Microchip KSZ8842-16MVLI

Manufacturer No:

KSZ8842-16MVLI

Manufacturer:

Microchip

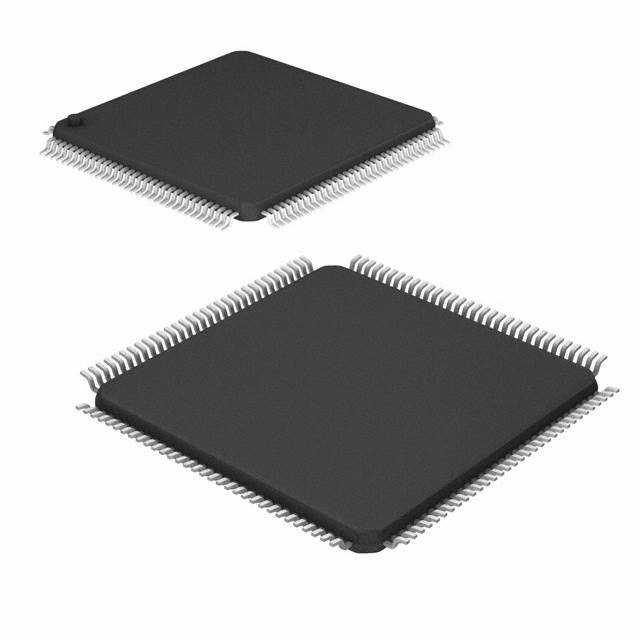

Package:

128-LQFP

Description:

The KSZ8842 series of 2-port 10/100 managed ethernet switches includes both PCI and non-PCI CPU interfaces and are available in industrial temperature ranges.

User Guide

Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.

PURCHASE

Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.

MEANS OF PAYMENT

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.

RFQ (REQUEST FOR QUOTATIONS)

Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.

IMPORTANT NOTICE

Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.

Step1：Prepare product

Step1：Prepare product

Step2：Desiccant Protection

Step2：Desiccant Protection

Step3：Vacuum Packaging

Step3：Vacuum Packaging

Step4：Individual Package

Step4：Individual Package

Step5：Anti-collision Filling

Step5：Anti-collision Filling

Step6：Packaging Box

Step6：Packaging Box

SHIPPING COST

1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.

SHIPPING METHOD

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

DELIVERY TIME

1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.

KSZ8842-16MVLI Information

Microchip KSZ8842-16MVLI technical specifications, attributes, parameters and parts with similar specifications to Microchip KSZ8842-16MVLI.

  • Type
  • Parameter
  • Copper Support
  • 10/100 (2)
  • DownstreamPorts
  • 2
  • Port Speed
  • 10/100Mbps
  • Fiber Support
  • No
  • Flow Control
  • Yes
  • IEEE 1588
  • No
  • IPV6
  • Yes
  • InterfaceUpStream
  • Host Bus/PCI
  • InternalLDO
  • Yes
  • LinkMDCableDiag
  • Yes
  • Type
  • Parameter
  • Managed
  • Yes
  • OpVoltage
  • 3.3
  • Rapid Spanning Tree Protocol
  • No
  • Rate Limiting
  • Yes
  • Static MAC Address
  • Yes
  • Supply Voltages
  • 3.3
  • Temperature Range Max
  • 85
  • Temperature Range Min
  • -40
  • Digital I/O Voltage
  • 3.3/5.0
  • WakeonLAN
  • No

Download datasheets and manufacturer documentation for Microchip KSZ8842-16MVLI.

Application Notes:

Data Sheets:

Brochures:

The KSZ8842-series of 2-port switches includes PCI and non-PCI CPU interfaces.

The datasheet describes the KSZ8842-PMQL/PMBL PCI CPU interface chips. KSZ8842-PMQL is PQFP package chip, KSZ8842-PMBL is LFBGA package chip. For information on the KSZ8842-MQL/MBL CPU non-PCI interface switches, refer to the KSZ8842-MQL/MBL datasheet.

The KSZ8842-PMQL/PMBL is the industry's first fully managed 2-port switch with a 32-bit/33MHz PCI processor interface. It is a proven, 4th generation, integrated Layer 2 switch that is compliant with the IEEE 802.3u standard. An industrial temperature grade version of the KSZ8842-PMQL/PMBL, also can be ordered the KSZ8842-PMQLI/PMBL AM. The KSZ8842-PMQL/PMBL can be configured as a switch or as a low-latency (<310 nanoseconds) repeater in latency-critical, embedded or industrial Ethernet applications.

For industrial automation applications, the KSZ8842-PMQL/PMBL can run in half-duplex mode regardless of the application. The KSZ8842-PMQL/PMBL offers an extensive feature set that includes tag/port-based VLAN, quality of service (QoS) priority management, management information base (MIB) counters, and CPU control/data interfaces to effectively address Fast Ethernet applications. The KSZ8842-PMQL/PMBL contains two 10/100 transceivers with patented, mixed-signal, low-power technology three media access control (MAC) units, a direct memory access (DMA) channel, a high-speed, non-blocking, switch fabric, a dedicated 1K entry forwarding table, and an on-chip frame buffer memory.


Microchip's complimentary and confidential MicroCHECK design review service, which offers insight from the initial concept to the final PCB layout, is available to customers who are using our products in their projects. You can confidently submit your design materials in a secure and private setting, and our expert engineers will provide individualized feedback to enhance your design. MicroCHECK design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.



  • Non-blocking switch fabric assures fast packet delivery by utilizing a 1K entry MAC Address look-up engine and a store-and-forward architecture
  • Fully compliant with IEEE 802.3u standards
  • Full-duplex IEEE 802.3x flow control (Pause) with force mode option
  • Half-duplex back pressure flow control
  • IEEE 802.1Q VLAN support for up to 16 groups (full-range of VLAN IDs)
  • VLAN ID tag/untag options, per port basis
  • IEEE 802.1p/Q tag insertion or removal on a per-port basis (egress)
  • Programmable rate limiting at the ingress and egress port
  • Broadcast storm protection
  • IEEE 802.1d spanning tree protocol support
  • MAC filtering function to filter unicast packets
  • Unknown MAC address forwarding function
  • Direct forwarding mode enabling the processor to identify the ingress port and to specify the egress port
  • IGMP v1/v2 snooping support for multicast packet filtering
  • IPV6 Multicast Listener Discovery (MLD) snooping support
  • Management information base (MIB) counters for fully compliant statistics gathering: 32 MIB counters per port
  • Loop back modes for remote failure diagnostics
      • There are three kinds of register groups:
    • The PCI configuration registers are used to initialize and configure the PCI interface
    • The PCI control/status registers are used to communicate between the host and KSZ8842-PMQL/PMBL
    • Switch registers are used to support transceiver control and status. They are configurable on-the-fly (port-priority, 802.1p/d/Q, etc.)
    • Per port, 802.1p and DiffServ based
    • Re-mapping of 802.1p priority field on a per port basis
    • Full-chip hardware power-down (register configuration not saved) provides for low power dissipation
    • Per port-based software power-save on PHY (idle link detection, register configuration preserved)
    • Single power supply: 3.3V
    • Commercial Temperature Range: 0°C to +70°C
    • Industrial Temperature Range: -40°C to +85°C
    • Available in 128-pin PQFP and 100-ball LFBGA
