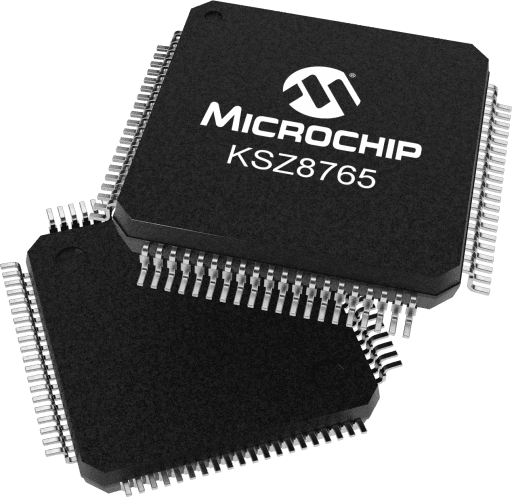

Microchip KSZ8765CLXIC

Manufacturer No:

KSZ8765CLXIC

Manufacturer:

Microchip

Package:

80-LQFP

Description:

The Microchip KSZ8765 is a highly integrated, Layer 2-managed, 5-Port 10/100 Managed Ethernet Switch with Fiber Support intended for cost-sensitive applications.

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

KSZ8765CLXIC information

Microchip KSZ8765CLXIC technical specifications, attributes, parameters and parts with similar specifications to Microchip KSZ8765CLXIC.

Type
Parameter

Copper Support
10/100 (2)

Port Speed
10/100Mbps

Fiber Support
100FX (2)

Flow Control
Yes

IEEE 1588
No

IPV6
Yes

InterfaceUpStream
MII/RMII/RGMII/GMII

InternalLDO
No

LinkMDCableDiag
Yes

Managed
Yes

OpVoltage
3.3

Rapid Spanning Tree Protocol
Yes

Rate Limiting
Yes

Smart Powe Adjust
Yes

Static MAC Address
Yes

Supply Voltages
3.3

Temperature Range Max
85

Temperature Range Min
-40

Digital I/O Voltage
1.8/2.5/3.3

WakeonLAN
Yes

Download datasheets and manufacturer documentation for Microchip KSZ8765CLXIC.

The KSZ8765 is a highly integrated, Layer 2-managed, five-port switch with numerous features designed to reduce overall system cost. It is intended for cost-sensitive applications requiring four 10/100Mbps copper ports and one 10/100/1000Mbps Gigabit uplink port.

The KSZ8765CLX incorporates a small package outline, low power consumption with internal biasing, and on-chip termination. Its extensive set of features include enhanced power management, programmable rate limiting and priority ratio, tagged and port-based VLAN, port-based security and ACL rule-based packet filtering technology, QoS priority with four queues, management interfaces, enhanced MIB counters, high-performance memory bandwidth, and a shared memory-based switch fabric with non-blocking support.

The KSZ8765CLX provides support for multiple CPU data interfaces to effectively address both current and emerging fast Ethernet and Gigabit Ethernet applications where the Port 5 GMAC can be configured to any of the GMII, RGMII, MII, and RMII modes. The KSZ8765CLX is built upon Microchip's industry-leading Ethernet analog and digital technology, with features designed to offload host processing and streamline the overall design.

• Two integrated MAC/PHYs 100Base-FX on Port 1 and Port 2

• Two integrated MAC/PHYs 10/100Base-T/TX on Port 3 and Port 4

• One integrated 10/100/1000Base-T/TX GMAC with selectable GMII, RGMII, MII, and RMII interfaces

• Small 80-pin LQFP package

A robust assortment of power management features including energy-efficient Ethernet (EEE), power management event (PME), and wake-on-LAN (WoL) have been designed in to satisfy energy efficient environments. All registers in the MAC/PHY units can be managed through the SPI interface. MIIM PHY registers can be accessed through the MDC/MDIO interface.

Microchip's complimentary and confidential MicroCHECK design review service, which offers insight from the initial concept to the final PCB layout, is available to customers who are using our products in their projects. You can confidently submit your design materials in a secure and private setting, and our expert engineers will provide individualized feedback to enhance your design. MicroCHECK design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.

Integrated 5-port 10/100 Layer-2 switch with Gigabit uplink

New generation switch with four MACs, one GMAC (for uplink) and four PHYs (two 10/100Base-T/TX & two 100Base-FX) that are fully compliant with the IEEE 802.3u standard

10/100Base-T/TX & 100Base-FX switch system which combines a switch engine, frame buffer management, address lookup table, queue management, MIB counters, MAC, and PHY transceivers

Rapid spanning tree support (RSTP) for topology management

Microchip LinkMD® cable diagnostic capabilities for determining cable opens, shorts, and length

Advanced Switch Capabilities

IEEE 802.1q VLAN support for up to 128 active VLAN groups (full range 4096 of VLAN IDs)

Support 802.1x port-based security and MAC-based authentication via access control lists (ACL)

QoS/CoS Packet Prioritization Support

802.1p, DiffServ-based and Re-mapping of 802.1p priority field, per-port basis on four priority levels

4 priority queues with dynamic mapping for IEEE 802.1P, IPV4 ToS (DiffServ), IPV6 Traffic Class, etc.

Programmable rate limiting at the ingress and egress ports on a per port basis

Comprehensive Configuration Register Access

High-speed SPI (4-wire, up to 50MHz) interface to access all internal registers

MII management (MIIM, MDC/MDIO 2 wire) interface to access all PHY registers per IEEE 802.3 specification

Control registers configurable on-the-fly

Switch Monitoring Features

Port mirroring/monitoring/sniffing: ingress and/or egress traffic to any port or MII/RMII

MIB counters for fully-compliant statistics gathering (36 MIB counters per port)

Low Power Dissipation

Full-chip software power-down

Energy detect power-down (EDPD)

Support IEEE P802.3az Energy Efficient Ethernet (EEE)

Wake on LAN (WoL) support
