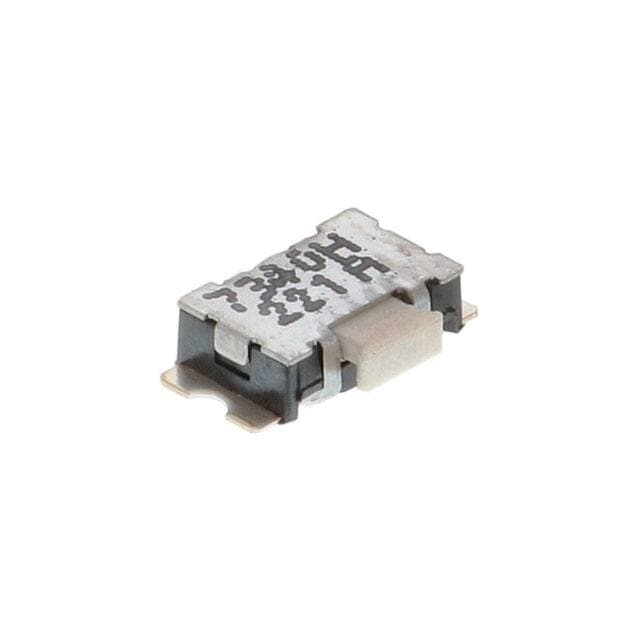

C&K KSS221GLFS
Manufacturer No:
KSS221GLFS
Manufacturer:
Package:
Description:
Description: KEYPAD SWITCH, SPST, MOMENTARY-TACTILE, 0.05A, 32VDC, 2.5N, SURFACE MOUNT-RIGHT ANGLE, ROHS COMPLIANT
Quantity:
Delivery:
Payment:
PRICING (in USD)
| Qty | Unit Price | Ext Price |
|---|---|---|
| 1 | $ 0.285000 | $ 0.285000 |
| 10 | $ 0.268000 | $ 2.680000 |
| 100 | $ 0.235000 | $ 23.500000 |
| 500 | $ 0.226000 | $ 113.000000 |
In Stock :Available
Want a lower wholesale price? Please send RFQ, we will respond immediately.
KSS221GLFS information
C&K KSS221GLFS technical specifications, attributes, parameters and parts with similar specifications to C&K KSS221GLFS.
| Type | Parameter |
|---|---|
| Pbfree Code | Yes |
| Rohs Code | Yes |
| Part Life Cycle Code | Active |
| Ihs Manufacturer | C & K COMPONENTS LLC |
| Reach Compliance Code | compliant |
| ECCN Code | EAR99 |
| HTS Code | 8536.50.90.40 |
| Factory Lead Time | 10 Weeks, 2 Days |
| Actuator Length | 0.035 inch |
| Actuator Travel | 0.3 mm |
| Actuator Type | STANDARD TYPE |
| Body Breadth | 3.5 mm |
| Body Height | 1.7 mm |
| Body Length or Diameter | 5.5 mm |
| Center Contact Material | SILVER |
| Center Contact Plating | SILVER |
| Circuit Configuration | 1X1 |
| Contact Bounce Time-Max | 3 ms |
| Contact Current(DC)-Max | 0.05 A |
| Contact (DC) Max Power Rating R Load | 1VA@32VDC |
| Contact (DC) Max Rating R Load | 0.05A@32VDC |
| Contact Resistance | 0.1 mΩ |
| Contact Voltage(DC)-Max | 32 V |
| Dielectric Withstand Volts | 250VDC V |
| Type | Parameter |
|---|---|
| End Contact Material | SILVER |
| End Contact Plating | SILVER |
| Insulation Resistance | 1000000000 Ω |
| JESD-609 Code | e4 |
| Mounting Feature | SURFACE MOUNT-RIGHT ANGLE |
| Number of Switches | 1 |
| Operating Force-Max | 2.5 N |
| Operating Temperature-Max | 85 °C |
| Operating Temperature-Min | -40 °C |
| Packing Method | TR, 13 INCH |
| Sealing | IP40 |
| Solderability | REFLOW |
| Surface Mount | NO |
| Switch Action | MOMENTARY-TACTILE |
| Switch Function | SPST |
| Switch Type | KEYPAD SWITCH |
| Terminal Finish | SILVER |
| Termination Type | SOLDER |
