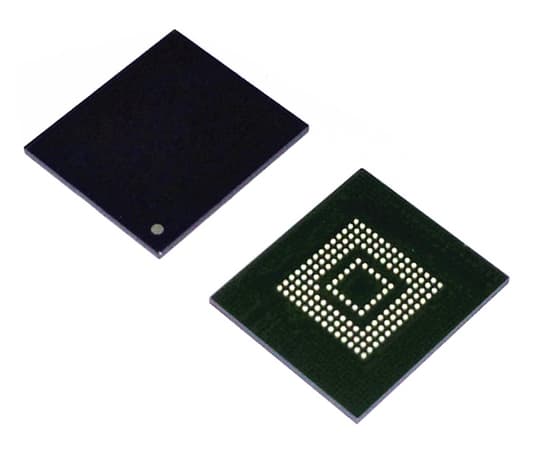

Samsung KLM8G1GETF-B041

Manufacturer No:

KLM8G1GETF-B041

Manufacturer:

Samsung

Package:

CARD

Description:

Samsung KLM8G1GETF-B041: MLC NAND Flash Serial e-MMC 3V/3.3V 64G-bit 64G/16G/8G x 1/4-bit/8-bit 153-Pin FBGA. With superior power efficiency and noticeably fast speed, Samsung’s eMMC is the definitive choice for flash storage to develop slim mobile design.

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

KLM8G1GETF-B041 information

Samsung KLM8G1GETF-B041 technical specifications, attributes, parameters and parts with similar specifications to Samsung KLM8G1GETF-B041.

Type
Parameter

Part Life Cycle Code
Active

Ihs Manufacturer
SAMSUNG SEMICONDUCTOR INC

Package Description
CARD

Reach Compliance Code
compliant

ECCN Code
EAR99

HTS Code
8542.32.00.51

Date Of Intro
2020-04-04

Samacsys Manufacturer
SAMSUNG

Additional Feature
3.3V SUPPLY IS ALSO AVAILABLE

Length
13 mm

Memory Density
68719476736 bit

Memory IC Type
FLASH CARD

Memory Width
8

Number of Functions
1

Number of Words
8589934592 words

Number of Words Code
8000000000

Operating Mode
ASYNCHRONOUS

Operating Temperature-Max
85 °C

Operating Temperature-Min
-25 °C

Organization
8GX8

Package Style
GRID ARRAY

Programming Voltage
1.8 V

Seated Height-Max
0.8 mm

Supply Voltage-Nom (Vsup)
1.8 V

Technology
CMOS

Temperature Grade
OTHER

Width
11.5 mm

Download datasheets and manufacturer documentation for Samsung KLM8G1GETF-B041.

Samsung KLM8G1GETF-B041 Datasheet:

3a2e8358-505a-4a7d-abb0-4c45c502273c.pdf

INTRODUCTION

SAMSUNG eMMC is an embedded MMC solution designed in a BGA package form. eMMC operation is identical to a MMC device and therefore is a sim

ple read and write to memory using MMC protocol v5.1 which is a industry standard.

eMMC consists of NAND flash and a MMC controller. 3V supply voltage is required for the NAND area (VDDF or VCC) whereas 1.8V or 3V dual supply

voltage (VDD or VCCQ) is supported for the MMC controller. SAMSUNG eMMC supports HS400 in order to improve sequential bandwidth, especially

sequential read performance.

There are several advantages of using eMMC. It is easy to use as the MMC interface allows easy integration with any microprocessor with MMC host.

Any revision or amendment of NAND is invisible to the host as the embedded MMC controller insulates NAND technology from the host. This leads to

faster product development as well as faster times to market.

The embedded flash management software or FTL(Flash Transition Layer) of eMMC manages Wear Leveling, Bad Block Management and ECC. The

FTL supports all features of the Samsung NAND flash and achieves optimal performance.

KEY FEATURES

• embedded MultiMediaCard Ver. 5.1 compatible.

• SAMSUNG eMMC supports features of eMMC5.1 which are defined in JEDEC Standard

- Major Supported Features : HS400, Field Firmware Update, Cache, Command Queuing, Enhanced Strobe Mode,

Secure Write Protection, Partition types.

- Non-supported Features : Large Sector Size (4KB)

• Backward compatibility with previous MultiMediaCard system specification (1bit data bus, multi-eMMC systems)

• Data bus width : 1bit (Default), 4bit and 8bit

• MMC I/F Clock Frequency : 0 ~ 200MHz

• MMC I/F Boot Frequency : 0 ~ 52MHz

• Power : Interface power → VCCQ(1.70V ~ 1.95V) , Memory power → VCC (2.7V ~ 3.6V)
