Kycon, Inc. K66X-A26P-N

Manufacturer No:

K66X-A26P-N

Manufacturer:

Package:

Description:

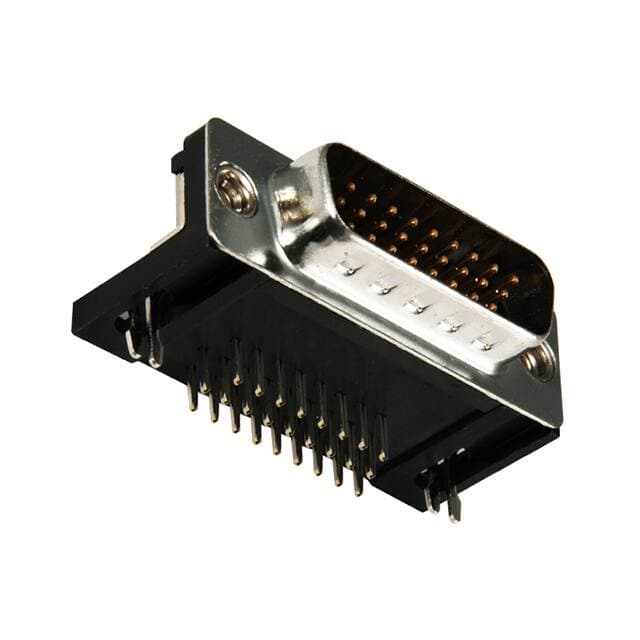

K66X Series D-Sub, High Density Plug, Male Pins 26-Position Male Signal Solder 2 DA A High Density Through Hole, Right Angle Brass Gold Steel, Nickel Plated

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

K66X-A26P-N information

Kycon, Inc. K66X-A26P-N technical specifications, attributes, parameters and parts with similar specifications to Kycon, Inc. K66X-A26P-N.

Type
Parameter

Factory Lead Time
20 Weeks

Contact Material
Brass

Mount
Through Hole

Mounting Type
Through Hole, Right Angle

Insulation Material
PBT

Shell Material
Steel

Dielectric Material
Polybutylene Terephthalate (PBT), Glass Filled

Shell Material, Finish
Steel, Nickel Plated

Operating Temperature
-55°C~75°C

Packaging
Tray

Series
K66X

Feature
Board Lock, Grounding Indents

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

ECCN Code
EAR99

Connector Type
Plug, Male Pins

Number of Positions
26

Color
Black

Number of Rows
3

Gender
Male

Voltage - Rated
29VAC

Subcategory
D Type Connectors

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Contact Type
Signal

Mixed Contacts
NO

Option
GENERAL PURPOSE

Current Rating (Amps)
1.5A

Pitch
2.29mm

Total Number of Contacts
26

Orientation
Right Angle

Current Rating
2A

Reference Standard
UL

Contact Finish
Gold

Reliability
COMMERCIAL

Body Length or Diameter
1.541 inch

Number Of PCB Rows
3

PCB Contact Pattern
STAGGERED

Body Breadth
0.494 inch

Empty Shell
NO

Flange Feature
Housing/Shell (4-40)

Plating
Tin

Dielectric Withstanding Voltage
1000VAC V

Connector Style
D-Sub, High Density

Download datasheets and manufacturer documentation for Kycon, Inc. K66X-A26P-N.

Datasheets:

kyconinc-k66xa26pn-datasheets-5006.pdf

K66X-A26P-N Overview

Packaging is in the form of Plug, Male Pins.The mounting type of the device is Through Hole, Right Angle.A Tray case is used to package the product.A product of the K66X Series, it belongs to the range of products of that series.A number of features make the Board Lock, Grounding Indents feature more powerful.Through Hole represents the mounting point for the part.-55°C~75°C Operating Temperature is the default operating temperature for the device.
