Kycon, Inc. K61X-E15S-N30

Manufacturer No:

K61X-E15S-N30

Manufacturer:

Package:

Description:

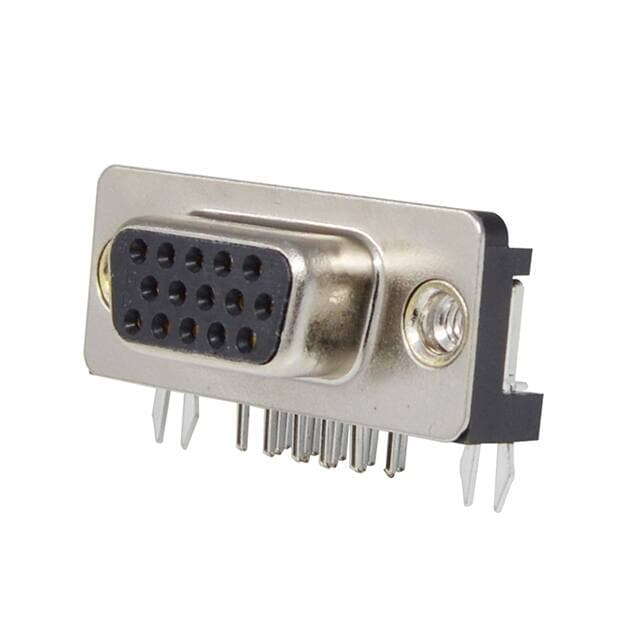

K61X Series D-Sub, High Density Receptacle, Female Sockets 15-Position Female Signal Solder 1 DE E High Density Through Hole, Right Angle Phosphor Bronze Gold Steel, Nickel Plated

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

K61X-E15S-N30 information

Kycon, Inc. K61X-E15S-N30 technical specifications, attributes, parameters and parts with similar specifications to Kycon, Inc. K61X-E15S-N30.

Type
Parameter

Factory Lead Time
20 Weeks

Contact Material
Phosphor Bronze

Mount
Through Hole

Mounting Type
Through Hole, Right Angle

Dielectric Material
Polybutylene Terephthalate (PBT)

Shell Material, Finish
Steel, Nickel Plated

Operating Temperature
-55°C~105°C

Packaging
Tray

Series
K61X

Feature
Board Lock

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

ECCN Code
EAR99

Connector Type
Receptacle, Female Sockets

Number of Positions
15

Color
Black

Number of Rows
3

Gender
Female

Voltage - Rated
30V

Subcategory
D Type Connectors

MIL Conformance
NO

DIN Conformance
NO

IEC Conformance
NO

Contact Type
Signal

Mixed Contacts
NO

Option
GENERAL PURPOSE

Current Rating (Amps)
2A

Pitch
2.29mm

Total Number of Contacts
15

Orientation
Right Angle

Shell Finish
TIN

Reference Standard
UL

Contact Finish
Gold

Reliability
COMMERCIAL

Number Of PCB Rows
3

PCB Contact Pattern
STAGGERED

Body Breadth
0.494 inch

Empty Shell
NO

Insulation Resistance
1000000000Ohm

Flange Feature
Housing/Shell (4-40)

Dielectric Withstanding Voltage
1000VAC V

Connector Style
D-Sub, High Density

PCB Contact Row Spacing
1.9558 mm

Mating Contact Row Spacing
0.078 inch

Shell Size, Connector Layout
1 DE E High Density

Contact Finish Thickness
30.0?in 0.76?m

Download datasheets and manufacturer documentation for Kycon, Inc. K61X-E15S-N30.

Datasheets:

kyconinc-k61xe15sn-datasheets-5912.pdf

K61X-E15S-N30 Overview

The connector type Receptacle, Female Sockets refers to the connector type.The device's mounting type is Through Hole, Right Angle.In order to package the product, a Tray case is used.It belongs to the K61X Series of products.Its Board Lock feature renders it more powerful in many ways.The part is mounted by Through Hole.The device runs in -55°C~105°C Operating Temperature.
