KYCON K42X-E9P/P-A4N

Manufacturer No:

K42X-E9P/P-A4N

Manufacturer:

Package:

Description:

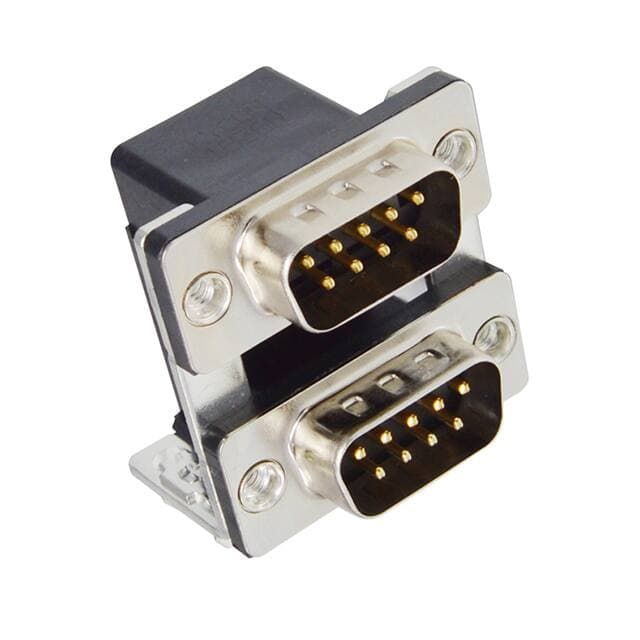

K42X Series D-Sub - Stacked Plug, Male Pins 9, 9-Position Male to Male Signal Solder 1 DE E ; 1 DE E Through Hole, Right Angle Brass Gold Steel, Nickel Plated

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

K42X-E9P/P-A4N information

KYCON K42X-E9P/P-A4N technical specifications, attributes, parameters and parts with similar specifications to KYCON K42X-E9P/P-A4N.

Type
Parameter

Factory Lead Time
22 Weeks

Contact Material
Brass

Mount
Through Hole

Mounting Type
Through Hole, Right Angle

Number of Pins
1

Shell Material
Steel

Dielectric Material
Polybutylene Terephthalate (PBT)

Shell Material, Finish
Steel, Nickel Plated

Operating Temperature
-55°C~105°C

Packaging
Tray

Series
K42X

JESD-609 Code
e3

Feature
Board Lock, Grounding Indents, Mounting Brackets

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

ECCN Code
EAR99

Connector Type
Plug, Male Pins

Number of Positions
9, 9

Color
Black

Number of Rows
2, 2

Gender
Male to Male

Voltage - Rated
30V

HTS Code
8536.69.40.30

MIL Conformance
NO

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Contact Type
Signal

Mixed Contacts
NO

Option
GENERAL PURPOSE

Pitch
2.76mm

Total Number of Contacts
9

Orientation
Right Angle

Current Rating
2A

Shell Finish
TIN

Contact Finish
Gold

Reliability
COMMERCIAL

Number Of PCB Rows
2+2

PCB Contact Pattern
STAGGERED

Empty Shell
NO

Body Depth
0.768 inch

Rated Current (Signal)
2A

Flange Feature
Housing/Shell (4-40)

Body/Shell Style
PLUG-PLUG

Plating
Tin

Connector Style
D-Sub - Stacked

Download datasheets and manufacturer documentation for KYCON K42X-E9P/P-A4N.

Datasheets:

kyconinc-k42xe9ppa4n-datasheets-8905.pdf

K42X-E9P/P-A4N Overview

Packaging is Plug, Male Pins.This device has a Through Hole, Right Angle mounting type.An orange Tray case is used to package the product.Specifically, it is one of the products in the K42X Series.There are 1 pins on the device.Several benefits come from the Board Lock, Grounding Indents, Mounting Brackets feature.There is a mounting hole at Through Hole.Devices operate at -55°C~105°C operating temperatures.
