Knowles JZ150

Manufacturer No:

JZ150

Manufacturer:

Package:

Description:

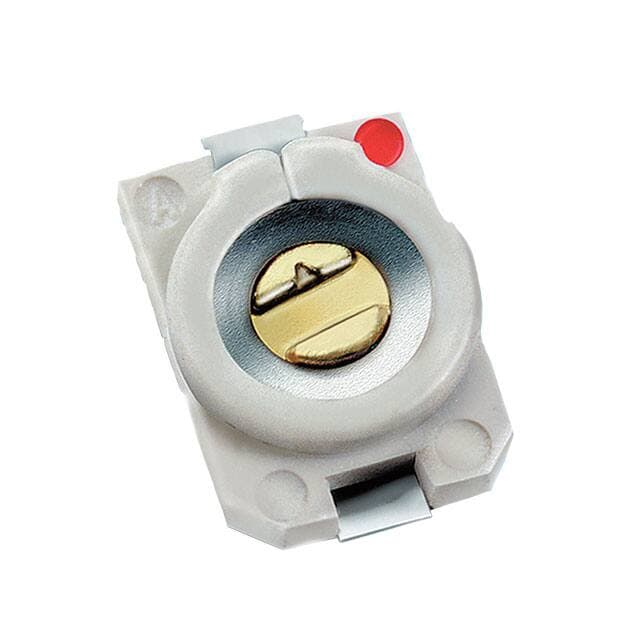

JZ150: Trimmer / Variable Capacitors 3.0 -15pF 100volts. CAP TRIMMER 3-15PF 125V SMD. 3 ~ 15pF Trimmer Capacitor 125 V Top Surface Mount.

Quantity:

Delivery:

Payment:

In Stock :1260

Price not displayed? Please send an RFQ, and we will respond immediately.

JZ150 information

Knowles JZ150 technical specifications, attributes, parameters and parts with similar specifications to Knowles JZ150.

Type
Parameter

Factory Lead Time
21 Weeks

Mounting Type
Surface Mount

Dielectric Material
Ceramic

Operating Temperature
-40°C~85°C

Packaging
Tape & Reel (TR)

Series
JZ

Published
2014

Size / Dimension
0.177Lx0.126W 4.50mmx3.20mm

Tolerance
100%

Feature
General Purpose

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
SMD/SMT

Capacitance
-15pF

Voltage - Rated DC
350V

Test Frequency
1MHz

Q @ Freq
1500 @ 1MHz

Q Factor
1500

Adjustment Type
Top

Capacitance Range
3pF~15pF

Height
1.4986mm

Height Seated (Max)
0.057 1.45mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Knowles JZ150.

Datasheets:

knowlesvoltronics-jz060-datasheets-6980.pdf

knowlesvoltronics-p8j-datasheets-2676.pdf

JZ150 is a surface-mount trimmer capacitor designed for precision tuning in RF circuits and other high-frequency applications.

Key Specifications

• Capacitance Range: 3 to 15 pF

• Rated Voltage: 125 V

• Dielectric Material: Ceramic

• Adjustment Type: Top

• Q Factor: 1500 at 1 MHz

• Mounting Type: Surface Mount

• Package Dimensions: 4.50 mm (L) × 3.20 mm (W) × 1.45 mm (H)

• Operating Temperature Range: -40°C to +85°C

• Features: General Purpose

Applications

The JZ150 is commonly used in:

• RF tuning circuits

• Impedance matching networks

• Oscillators

• Filter tuning
